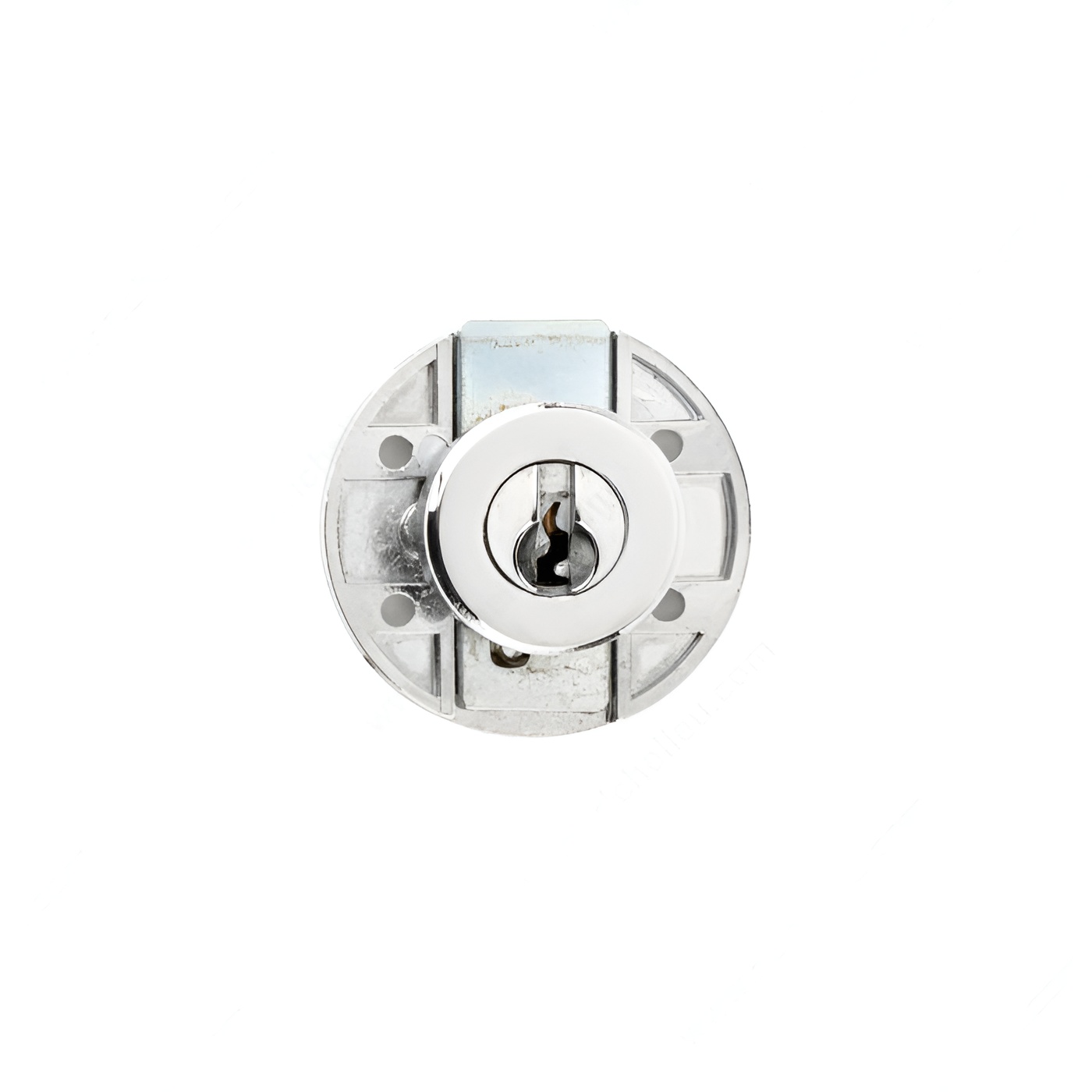

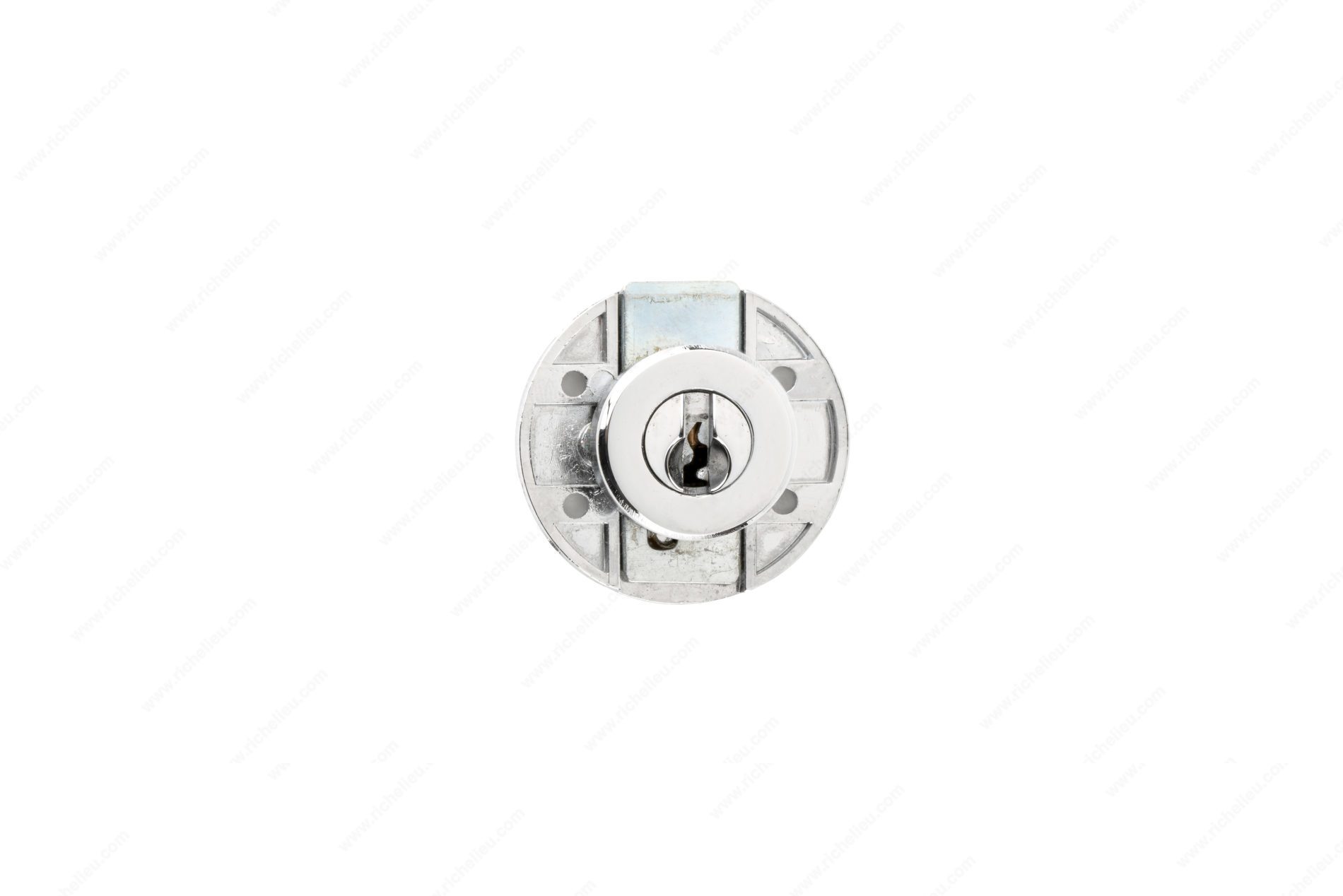

Richelieu 313153140 Drawer Lock - 23 mm offers a reliable and secure locking solution perfect for both individual drawers and centralized locking systems. Designed with a rosette overlap of 2 mm, this lock ensures a seamless fit and enhanced security for wooden furniture. The lock features a solid brass construction, providing durability and a polished chrome finish that complements any cabinetry. With a cam length of 25/32 inches and a cylinder diameter of 29/32 inches, the 313153140 is tailored for panels ranging from 3/16 to 29/32 inches thick. Its pin mechanism guarantees reliable performance, while the key model 2C allows for smooth operation with a 360° key turn degree, making it user-friendly. The lock is keyed alike #3, simplifying access across multiple drawers when used in a central locking system. Ideal for building professionals and knowledgeable homeowners, this lock not only enhances security but also adds a touch of elegance to your furniture. With the capability to ship via UPS, the Richelieu 313153140 Drawer Lock is the perfect choice for those seeking quality and convenience in their locking solutions.

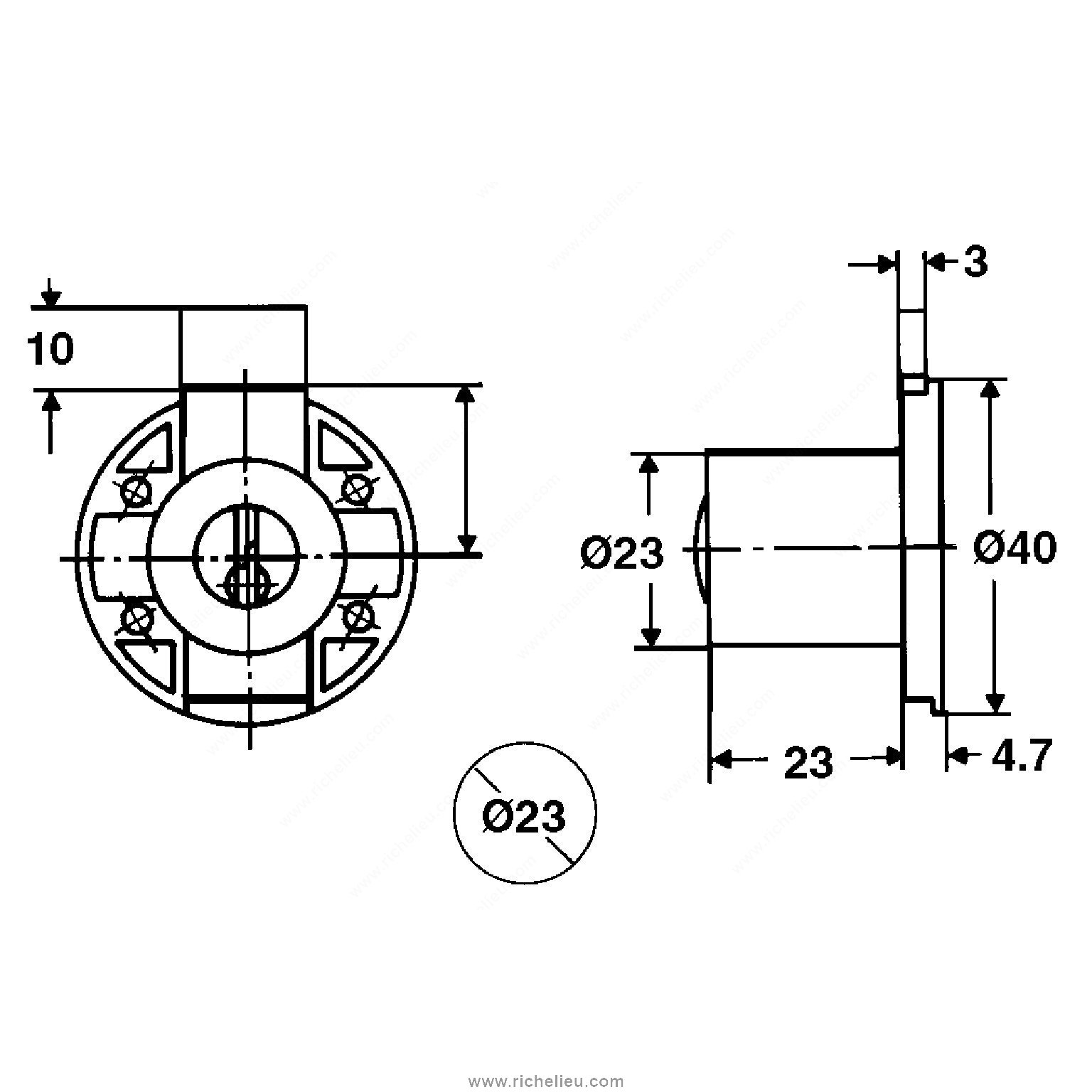

Drawer Lock - 23 mm
Application: Single Drawer, Pedestal
Brand: Dom
Cam Length (from center): 20 mm
Cylinder Diameter: 23 mm
Finish: Chrome
Furniture Material: Wood
Key Turn Degree: 360°
Key Type: Keyed Alike #3
Material: Brass/Die-Cast Zinc
Mechanism Type: Pin
Panel Thickness: Max. 23 mm
Product #: 313153140
Product number: 313153140
Product №: 313153140
Unit 1: carton - 10
