Richelieu 429212140 Concealed Steel Hinge - Model 212 seamlessly combines functionality with a polished aesthetic, making it an ideal choice for both wood and metal doors. With a stunning bright chrome finish, this hinge enhances the overall appearance of any cabinetry or door installation while ensuring long-lasting durability. Designed for easy installation, it features a reversible handedness, offering versatility for various applications. This concealed hinge boasts an impressive 180° opening angle, allowing for full accessibility without compromising on space. The hinge is mortised, with a height of 1 5/64 inches and a width of 3/4 inch, making it suitable for doors with a minimum thickness of 1 1/8 inches. The door and jamb gap specifications ensure a precise fit, with gaps measuring 11/64 inches and 3/64 inches in the closed position. Additionally, the hinge includes screw/nail options for secure fixing, and is designed with a leaf body mortise length of 2 1/16 inches, ensuring a robust installation. Richelieu’s commitment to quality and style is evident in this hinge, making it a reliable choice for building professionals and discerning homeowners alike. Enhance your projects with the sophisticated functionality of the Richelieu Concealed Steel Hinge - Model 212.

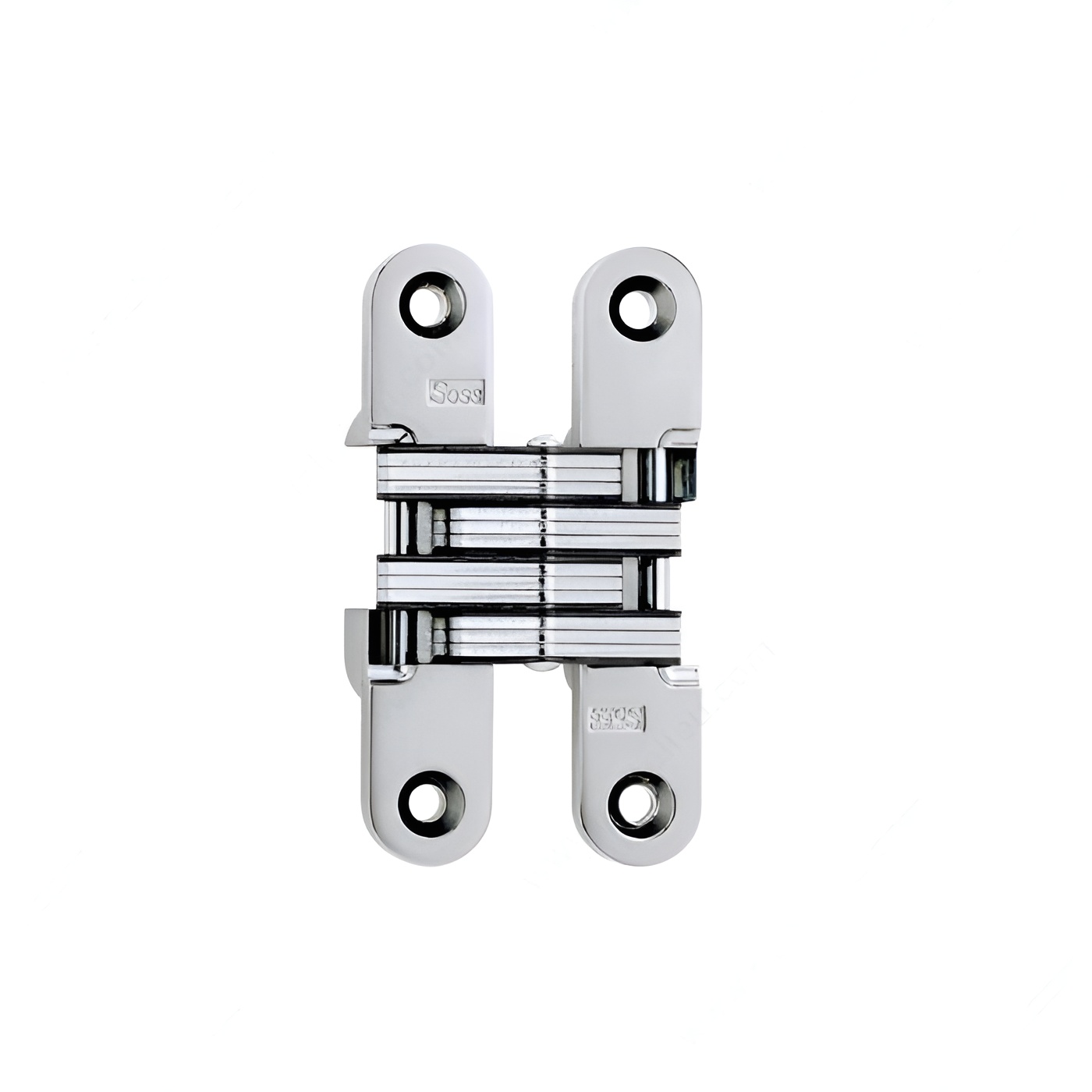

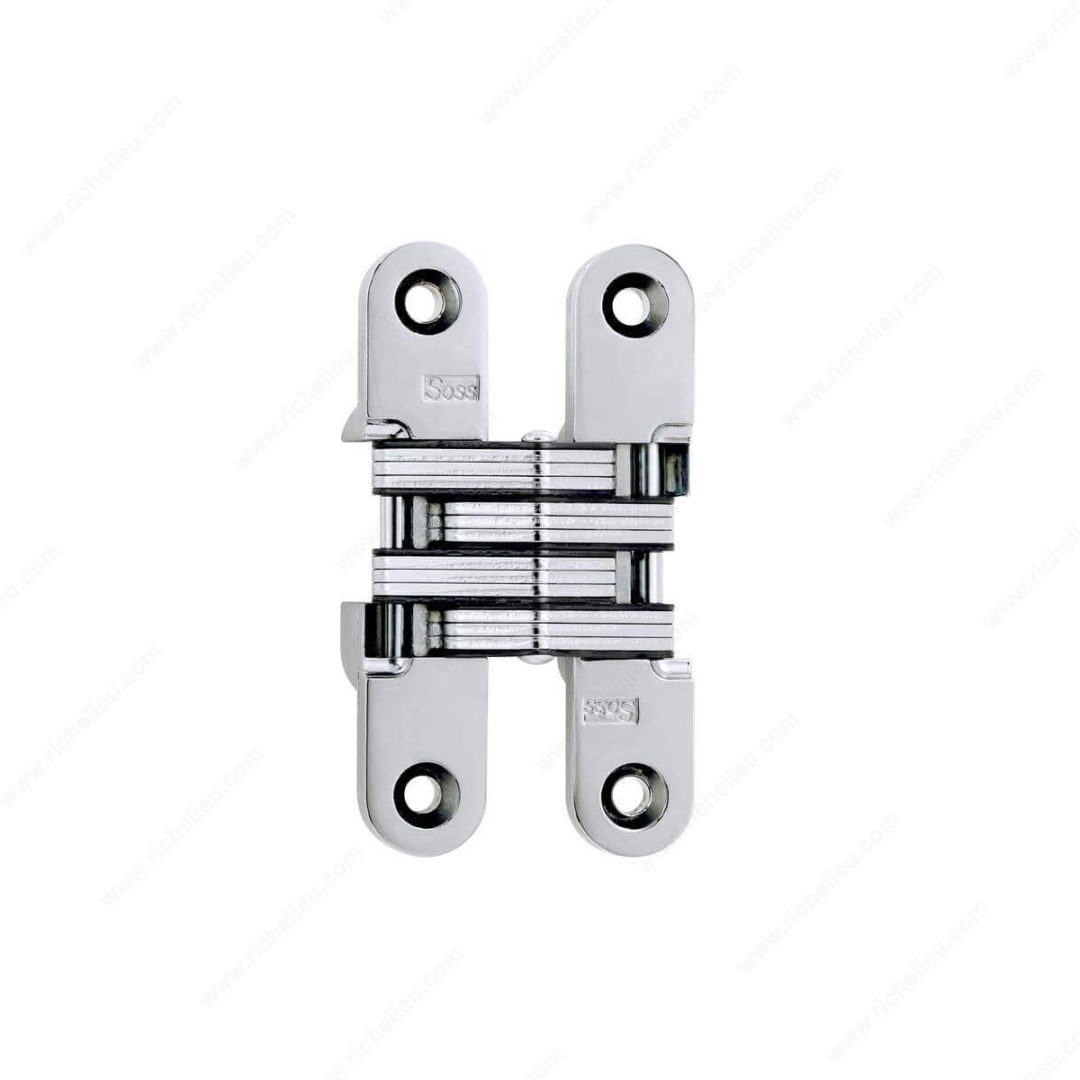

Concealed Steel Hinge - Model 212
Cabinet Angle: 180°
Center to Center (mm): 3 in
Dimension A: 3/4 in
Dimension B: 35/64 in
Dimension C: 3 3/4 in
Dimension D: 11/64 in
Dimension E: 3/16 in
Dimension F: 2 1/16 in
Dimension G: 3/64 in
Dimension H: 1 5/64 in
Dimension I: 3/8 in
Door/ Jamb Gap: 11/64 in
Door/ Jamb Gap (mm): 5/32 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 3/16 in
Door/ Jamb Inset (mm): 17/32 in
Finish: Bright Chrome
Fixing Type: Screw-On
For Hinge #: 212
Handedness: Reversible
Height: 1 5/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 1/16 in
Leaf Gap: 35/64 in
Leaf Mortise Depth: 3/8 in
Length: 3 3/4 in
Material: Steel
Minimum Door Thickness: 1 1/8 in
Mounting Type: Mortise
Product #: 429212140
Product number: 429212140
Product №: 429212140
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 3/4 in
Wood Screw Sizes: #10 x 1-1/4" (4.8 mm x 32 mm)
