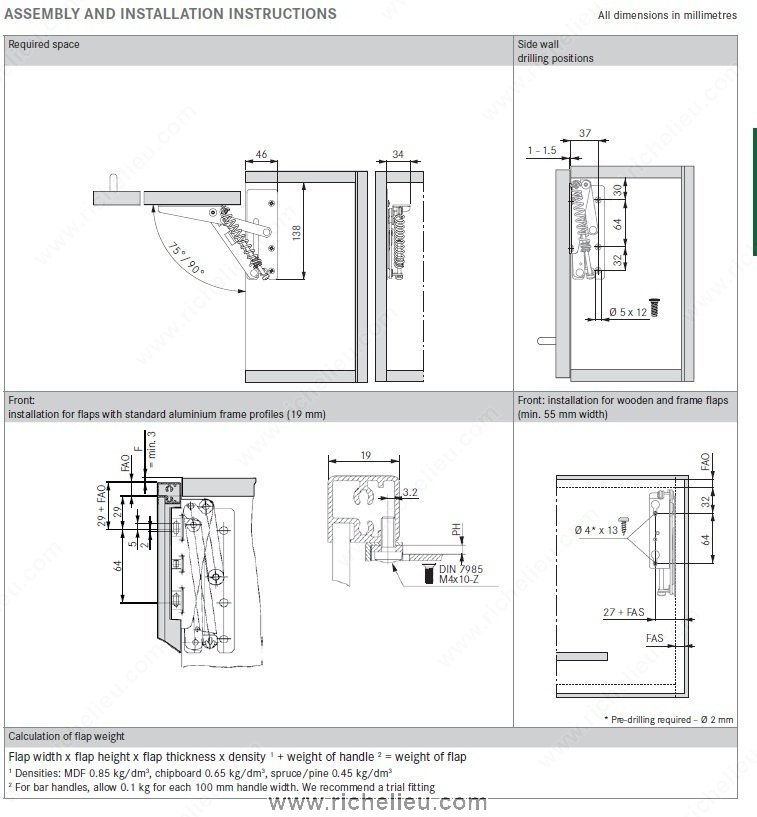

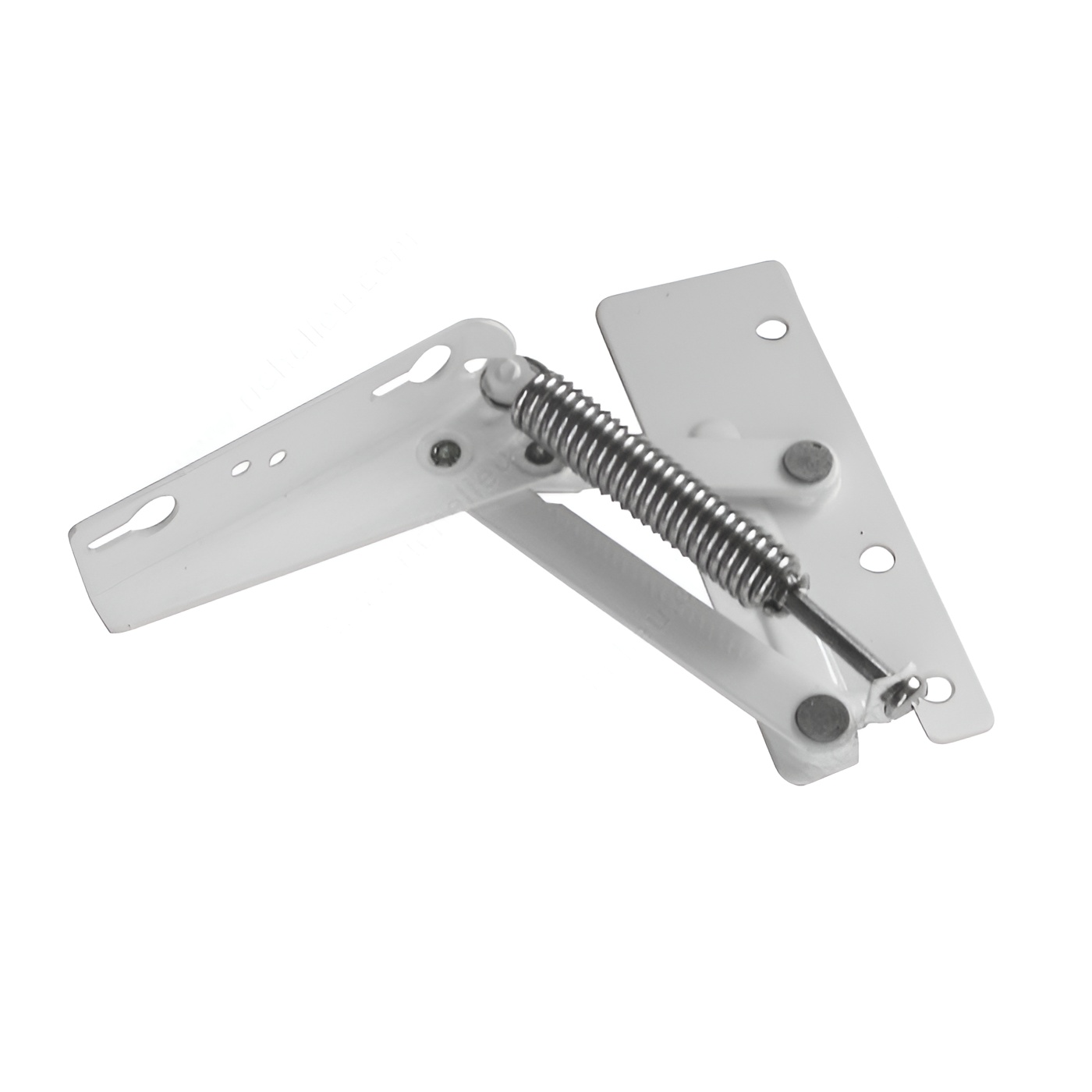

Richelieu 542R30 Adjustable Spring Hinge is engineered to enhance functionality and aesthetics in wooden door installations. With the ability to accommodate two variable opening angles ranging from 75° to 90°, this hinge allows for optimal access to cabinet interiors while maintaining a clean appearance without concealed hinges in the top panel. Designed with adjustable springs, the 542R30 provides a versatile two-in-one solution that combines both hinging and support functions. The hinge features a 32 mm hole spacing system, facilitating easy installation, and it comes with a white epoxy finish that complements various design styles. Maintenance-free plastic bearings ensure excellent running properties, while oblong holes allow for precise height adjustments. This hinge supports a weight capacity of 2.2 to 13.7 lbs (1 to 6.2 kg), making it suitable for a variety of applications. It can accommodate door widths of up to 47 1/4" (1200 mm) and heights between 11 13/16" and 23 5/8" (300 to 600 mm). The package includes a template and instructions for straightforward installation. The Richelieu 542R30 is a reliable choice for professionals seeking a durable and efficient solution for cabinetry and door projects.
Adjustable Spring Hinge
Included products
Color/ Finish: White
Finish: White
Fixing Type: Screw-On
Material: Metal
Position: Right
Product #: 542R30
Product number: 542R30
Product №: 542R30
Screw/ Nail: Not Included
Unit 1: case - 100
