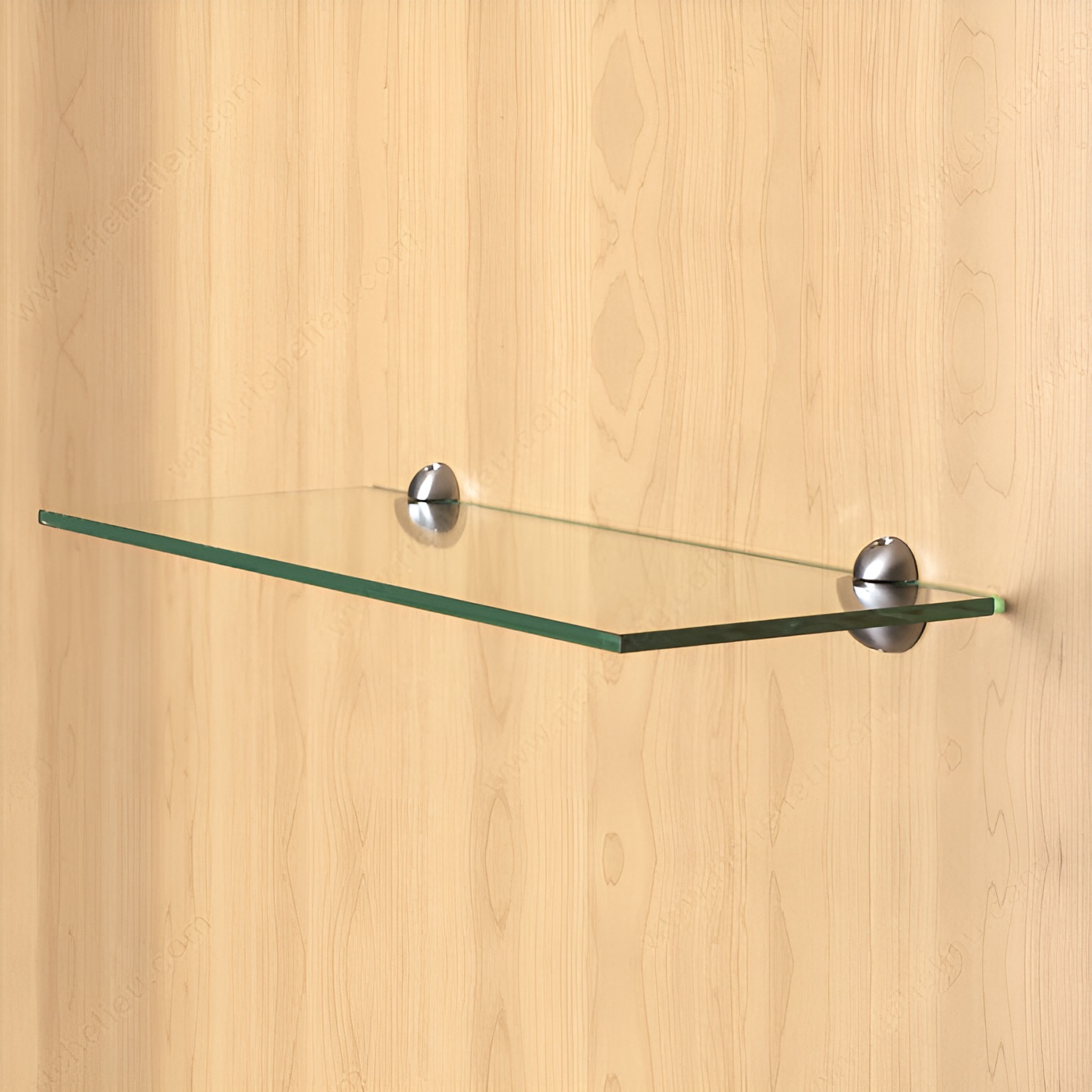

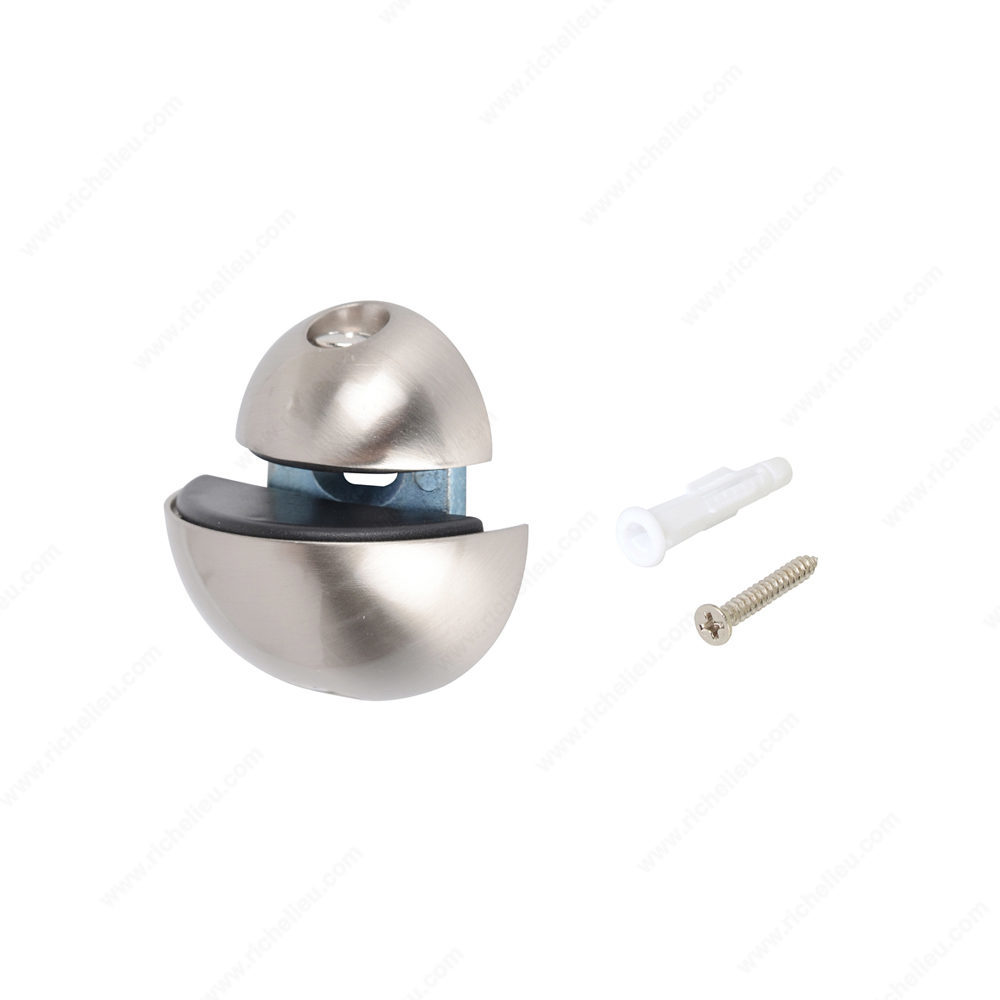

Richelieu 93970170 Hemispheric Shelf Support is designed to provide durable and stylish support for glass shelves in various applications. Crafted from high-quality zinc alloy and finished in stainless steel, this support combines strength and elegance, making it an ideal choice for modern interiors. This shelf support accommodates glass thicknesses ranging from 5/32 inches to 13/32 inches, ensuring compatibility with various shelving options. With a maximum load capacity of 26.5 pounds per pair, it offers reliable performance while maintaining a sleek profile. The overall dimensions include a height of 1 3/4 inches and a projection of 1 1/32 inches, allowing for a seamless integration into your design. Designed for practicality, the maximum length supported is 29 17/32 inches, and it can handle shelf widths up to 9 27/32 inches for the 93970XXX variant, or 11 13/16 inches for the 93971XXX variant. With a maximum shelf depth of 7 7/8 inches, this product is versatile enough for various shelving arrangements. Easy to ship via UPS, the Richelieu Hemispheric Shelf Support is an excellent choice for builders and homeowners seeking both functionality and aesthetic appeal in their shelving solutions.
Hemispheric Shelf Support
Important information
Color/ Finish: Stainless Steel
Glass Shelf Thickness: 4 to 10 mm

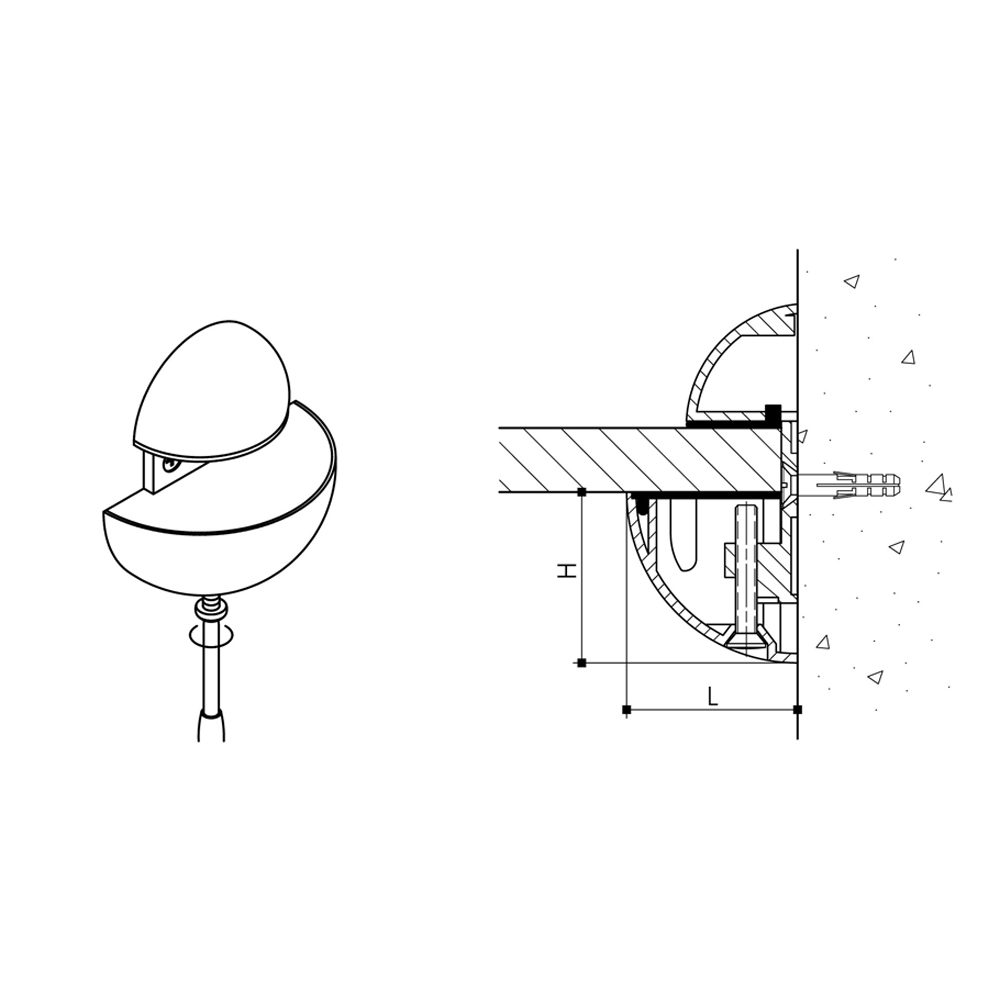

Height - Overall Dimensions: 44.8 mm
Material: Zinc Alloy
Maximum Load Capacity per Pair: Max. 12 kg
Maximum shelf depth: 200 mm
Product #: 93970170
Product number: 93970170
Product №: 93970170
Projection - Overall Dimensions: 26 mm
Unit: Box of 2
Unit 1: case - 100
Unit 2: case - 100
Width - Overall Dimension: 52 mm
