Richelieu BP9145490 3/4" Overlay Institutional Hinge - Series 450 is designed for durability and reliability in institutional applications. This hinge features a robust black steel construction, ensuring it can withstand the rigors of frequent use, making it an excellent choice for both commercial and high-traffic environments. With a door overlay of 23/32 inches and a door thickness of 3/4 inches, this hinge is crafted to accommodate a variety of door styles. The hinge offers an impressive opening angle of +270°, providing enhanced access and functionality. Designed for ease of installation, it utilizes a screw-on fixing type, and the necessary #8 screws are included for convenience. The hinge is engineered to fit side panels with a thickness of 3/4 inches, and its 32 mm centers with a 37 mm setback ensure compatibility with standard cabinetry. Certified to meet ANSI/BHMA 156.9 Grade 1 standards, it promises long-lasting performance and reliability. The Richelieu BP9145490 is not just a functional component; it's an essential part of your architectural hardware toolkit, enhancing both the aesthetic and functional aspects of your installations. Trust in Richelieu quality for your next project.

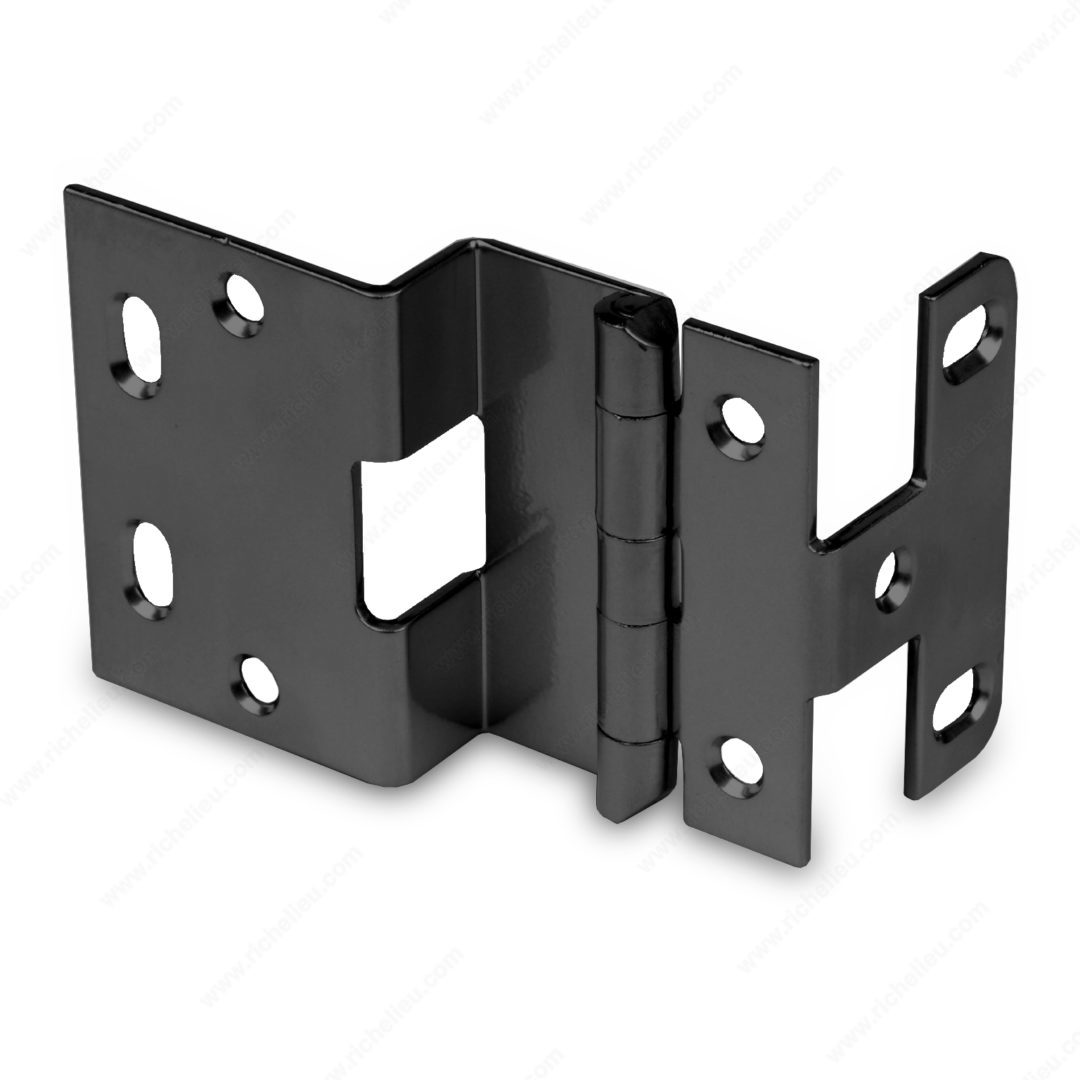

Five Knuckles Institutional Hinge 454 Series - 3/4" x 3/4" - Door wing holes 45mm on center
Color/ Finish: Black

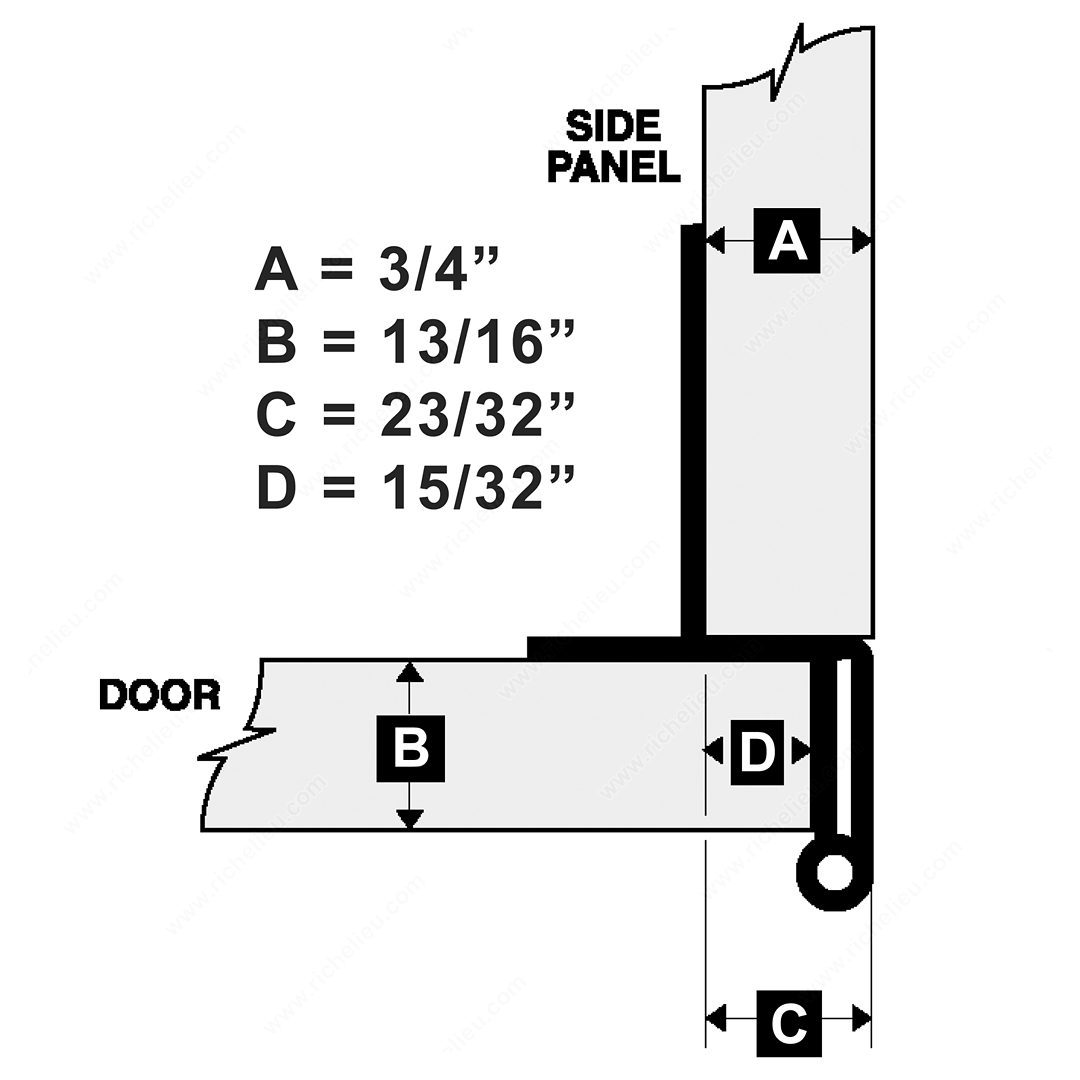

Door Overlay: 15/32 in
Door Thickness: 3/4 in
Door overlay: 15/32 in
Door thickness: 3/4 in
Finish: Black
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Material: Steel
Offset: 3/4 in
Overlay: 23/32 in
Product #: BP9145490
Product number: BP9145490
Product №: BP9145490
Screw/ Nail: #8, Flat Head (not included)
Side panel thickness: 3/4 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit: Pair
Unit 1: case - 50
Unit 2: case - 50
