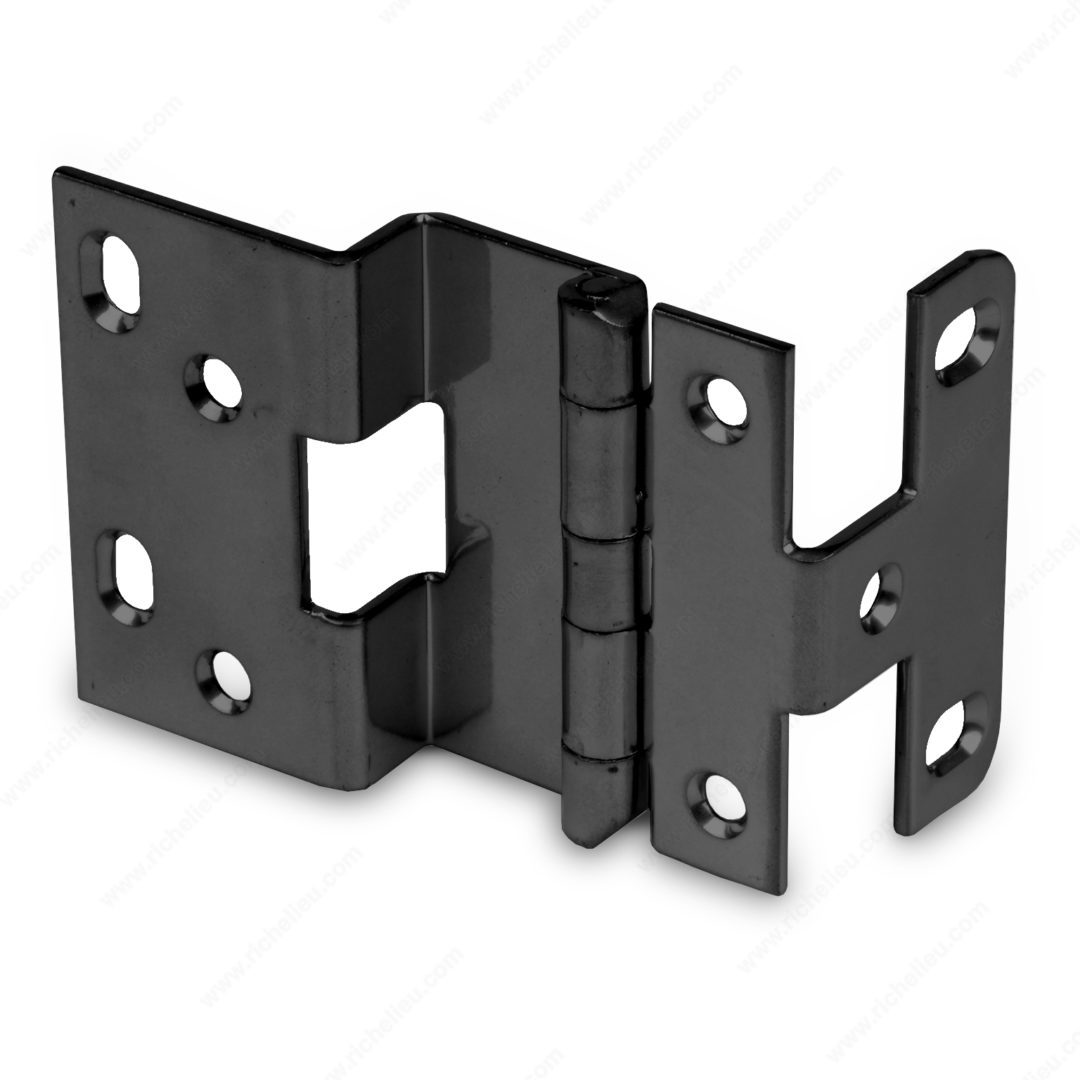

Richelieu BP9185390 5/8" Overlay Institutional Hinge offers a robust solution for professional-grade cabinetry. Designed with staggered side panel mounting holes, this hinge ensures a precise fit and optimal alignment for various applications. The hinge accommodates a door overlay of 19/32 inches and a door thickness of 13/16 inches, making it versatile for different cabinetry styles. Constructed from durable steel and finished in sleek black, the BP9185390 combines aesthetics with strength. It features a hinge opening angle of +270°, allowing for maximum accessibility. The offset of 5/8 inches provides ample clearance, enhancing functionality without compromising design. Installation is straightforward, thanks to the screw-on fixing type, with #8 screws included for your convenience. This product is packaged in pairs for easy handling and installation. Complying with ANSI/BHMA 156.9 Grade 1 standards, this institutional hinge assures reliability and performance in high-traffic environments. Whether you're outfitting a commercial space or upgrading residential cabinetry, the Richelieu BP9185390 is an excellent choice for those seeking quality and durability in their hardware solutions. Elevate your project with this essential hinge that promises long-lasting functionality and style.
Five Knuckles Institutional Hinge 853 Series - 13/16" x 5/8"
Important information
Brand: RPC
Color/ Finish: Black
Door Overlay: 11/32 in
Door Thickness: 13/16 in
Door overlay: 11/32 in
Door thickness: 13/16 in
Finish: Black
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Material: Steel
Offset: 5/8 in
Overlay: 19/32 in
Packaging format: Pair
Product #: BP9185390
Product number: BP9185390
Product №: BP9185390
Screw/ Nail: #8, Flat Head (not included)
Side panel thickness: 5/8 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit: Pair
Unit 1: case - 50
Unit 2: case - 50
