Richelieu D032033 Recessed Pivot Hinge for Glass Doors in Cabinets/Furniture

Richelieu D032033 Pivot Hinge for Glass Door Recessed in Cabinet/Furniture is expertly designed for seamless integration into your cabinetry. This hinge can be mounted on either the left or right side, offering flexibility to fit various installation requirements. It is crafted from solid brass and finished in a sleek chrome, ensuring durability and a polished look that complements any décor. With a height of 1 21/32 inches and a width of 2 29/32 inches, this pivot hinge is suitable for glass thicknesses ranging from 1/4 to 5/16 inches. It supports a maximum load capacity of 55.1 pounds, making it ideal for heavier glass doors while maintaining smooth operation. The hinge requires a minimum installation distance of 2 mm from the cabinet wall and 20 mm from shelves, ensuring proper functionality. To guarantee optimal performance, it is crucial to follow the manufacturer’s installation instructions and use appropriate fixation methods. Maintenance is straightforward; simply clean with a soft, ammonia-free soap on a gentle cloth. Please note that all products should be ordered before project execution, and returns or claims for unpackaged products are not accepted. Trust Richelieu for reliable, high-quality hardware solutions that enhance your space.

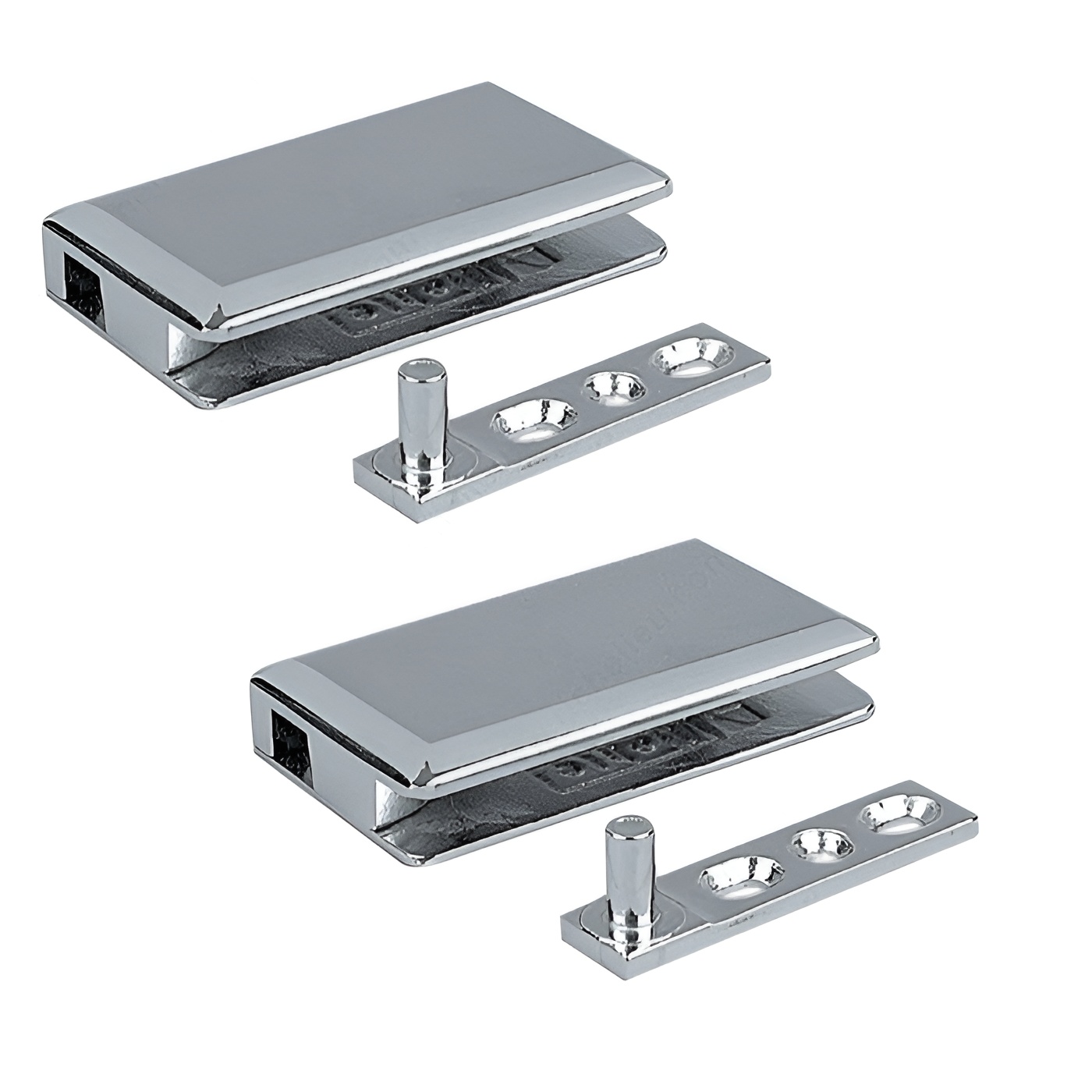

Pivot Hinge for Glass Door Recessed in Cabinet/Furniture

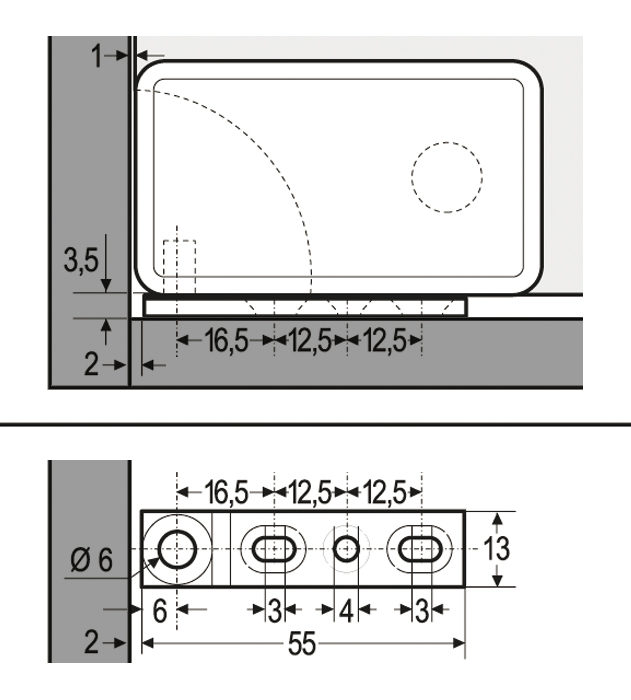

Can be mounted left or right. Mounting bracket must be installed a minimum of 2 mm from cabinet wall and 20 mm from shelves.

Important information

Note:
The hardware must be ordered before the execution of the project.
Always use the instruction supplied by the manufacturer inside of the packaging because: The manufacturer reserves the right to make technical changes, modify quite produced or information without prior notice!
At any time the execution and installation must be done by qualified persons.
Never exceed the weight nor the maximum dimension recommended by the manufacturer.
Always make sure to fix properly the product using the right fixation for the proper material.
Never used any spray lubricant on these products!
Maintenance: used a soft soap without ammonia and abrasive on a soft cloth(rag).

Picture for visual reference only!
Actual product may vary from photo shown!
Returns or claims for unpackaged products will not be accepted.

Exclusion from responsibility:
The preceding information as well as any technical recommendation given in writing, verbally or based on tests are provided to the best of our knowledge.
However, they are non-binding recommendations only and do not affect your responsibility to determine the correctness of given recommendations and suitability of the product for your particular purposes.
The application, use or processing of our products as well as the production of products based on our technical recommendations are beyond our control and therefore fall exclusively in your area of responsibility.
Sales of our products are effected according to our most updated General Sales and Delivery Conditions.

Resources

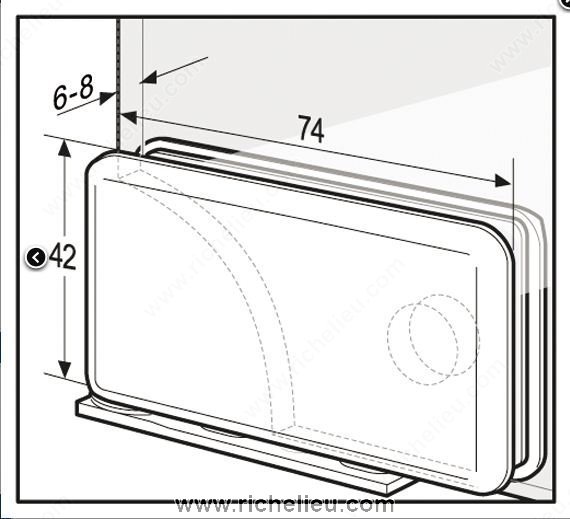

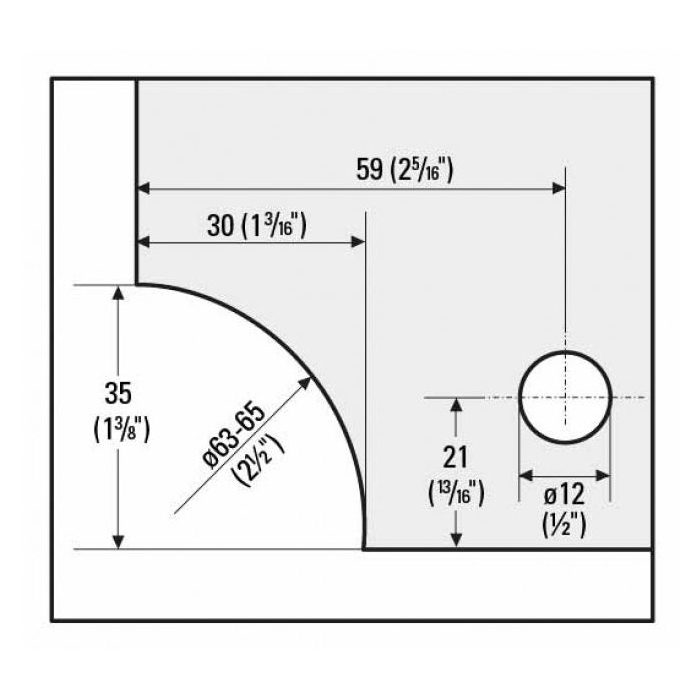

• Line art
• Line art
• Line art
