Acorn ISSBP 30-3/4" Stainless Steel Heavy Duty Whale Tail Strap Hinge offers a blend of strength and aesthetic appeal, perfect for both commercial and residential applications. Crafted from durable stainless steel and finished in a sophisticated matte black, this hinge not only enhances the visual appeal of your project but also delivers exceptional performance. With a generous strap length of 30-3/4" and a width of 3" at the hinge, this heavy-duty hinge is designed to support significant weight, boasting a remarkable load rating of 600 lbs. per pair and having been rigorously tested to withstand 1,000 lbs. per pair. The hinge features a robust 3-3/4" x 6" hinge pad and is constructed with three knuckles, ensuring smooth operation and longevity. A removable pin adds convenience for maintenance and adjustments, while the included 11-1/4" x 2" square head stainless steel lags facilitate a secure installation. Made in the USA, the Acorn ISSBP hinge reflects quality craftsmanship. For best results, predrill with a 5/32" drill bit, and hand tighten bolts to avoid paint chipping. Enhance your architectural designs with this reliable and stylish hinge, ideal for various heavy-duty applications.

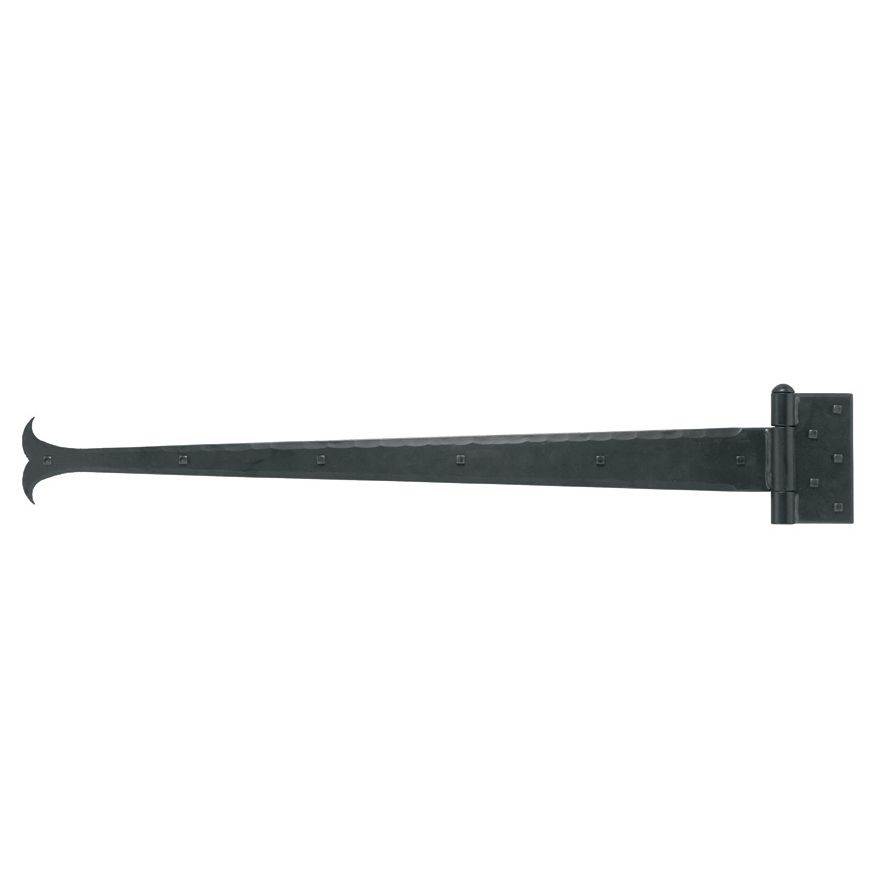

30-3/4" Stainless Steel Heavy Duty Whale Tail Strap Hinge

ISSBP - 30-3/4" Stainless Steel Heavy Duty Whale Tail Strap Hinge

• Made of stainless steel with a matte black finish

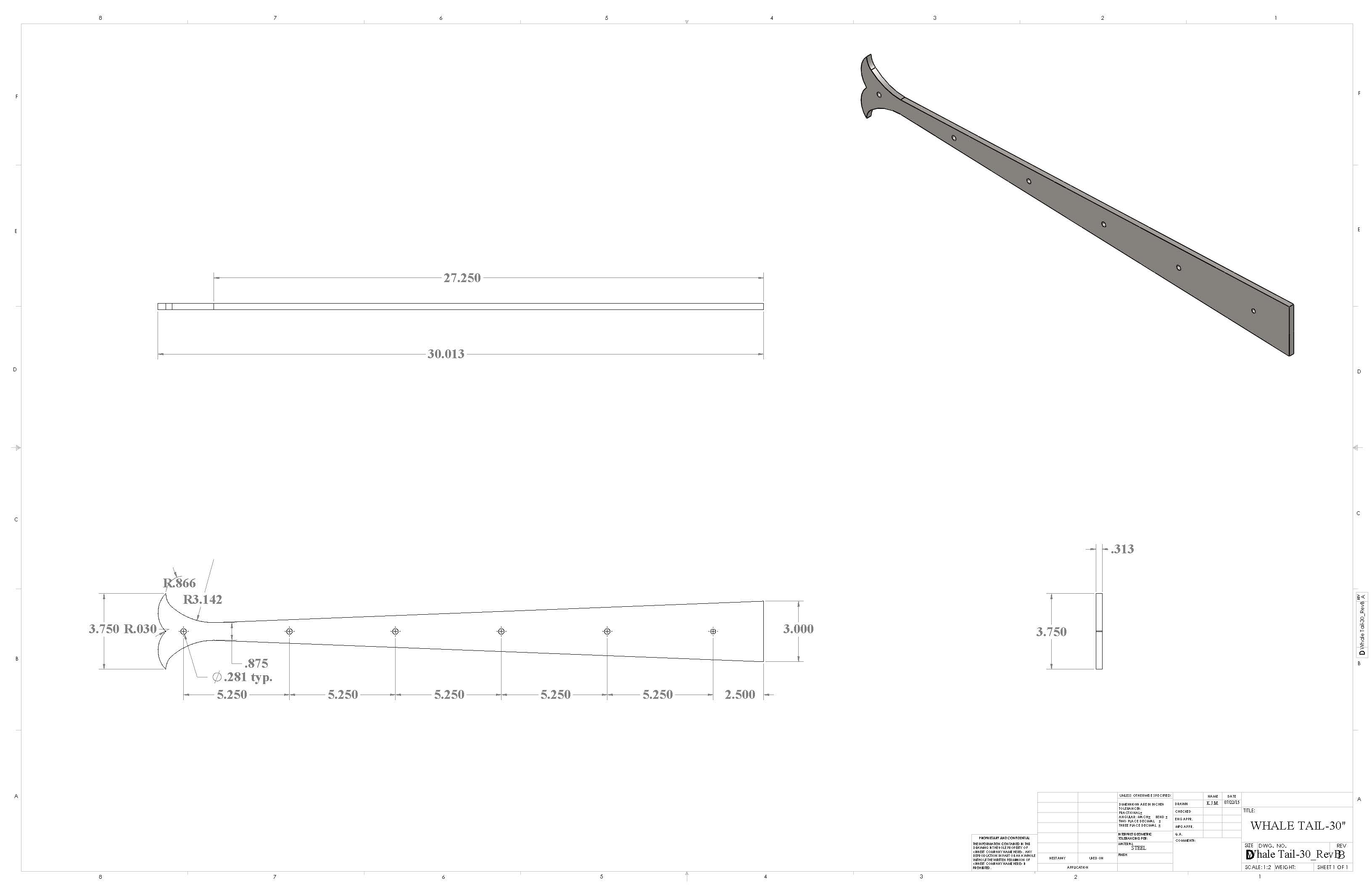

• 30-3/4" strap length, 3" strap width at hinge


• 3-3/4" x 6" hinge pad


• 3/8" thick


• Removable pin


• 11, 1/4" x 2" square head, stainless steel lags included


• Rated for 600 lbs. pair


• Tested to 1,000 lbs. per pair


• 3 knuckles


• Made in the USA

Installation Tips

• Predrill with a 5/32" drill bit


• Hand tighten bolts to prevent paint chipping


• Use clean chrome plated tools to prevent rust
