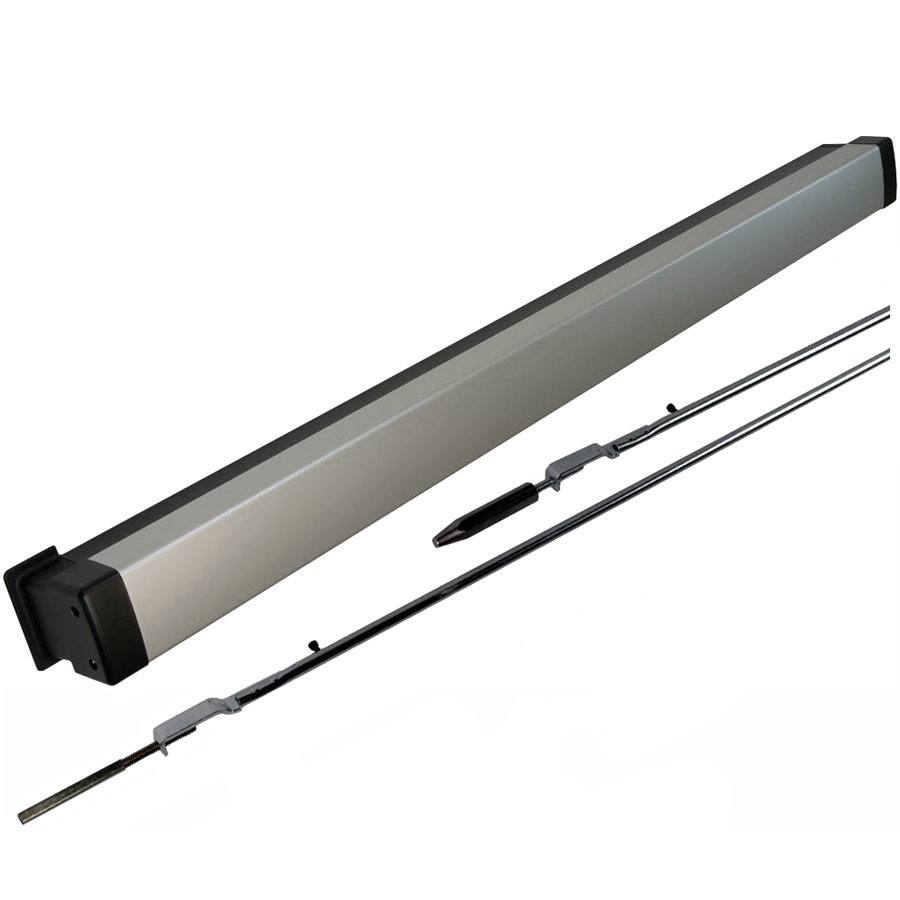

Adams Rite Manufacturing 8611MLR-36-24V Concealed Vertical Rod Exit Device (CVR) is an advanced solution for securing narrow stile aluminum doors while ensuring safe egress. This motorized electric retraction device is designed for both single and pairs of doors, providing a reliable two-point locking mechanism that enhances safety without compromising aesthetics. Crafted with a patented top latching mechanism, the 8611MLR model interlocks the door to the frame, offering exceptional durability and security. Its adjustable steel rods are protected in sleek contoured covers, promoting a clean, unobtrusive design that fits seamlessly into any environment. Installation is straightforward, making it an excellent choice for building professionals and knowledgeable homeowners alike. This device supports a standard pushbar length of 36 inches and accommodates door heights up to 96 inches, making it versatile across various applications. Constructed from extruded aluminum, it is available in multiple finishes, including clear anodized aluminum (628/US28), ensuring both functionality and a polished appearance. The non-handed design and field-reversible lever entry trim provide flexibility for installation. Certified to ANSI/BHMA A156.3 Grade 1 standards, the Adams Rite 8611MLR-36-24V is a reliable choice for enhancing safety and accessibility in commercial and residential spaces.

Concealed Vertical Rod Exit Device (CVR), Motorized Electric Retraction (MLR), Fits Narrow and Wide Stile Aluminum Doors, 36in x 96in, 628/US28 Aluminum Clear Anodized

The 8600 series narrow stile concealed vertical rod exit device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors.

Features:

• Patented top latching mechanism interlocks door to frame
• Strong, durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install
• Clean, unobtrusive design

Specifications:

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length Standard sizes: dimensioned for 30", 36", 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30" to 44".
• Door Height: Standard unit adjustable for doors up to 66" above the selected bar height. For doors over 66" above bar height, up to 10 ft use 8655 Tall Door Kit.
• Door Thickness: Suits 1-3/4" standard, up to 2-1/4". Device requires modification when used with cylinder in doors over 1-3/4".
• Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.
• Certifications: ANSI/BHMA A156.3 Grade 1

Device Options:

• LR: Electric latch retraction (solenoid)
• MLR: Motorized latch retraction
• C: Cylinder dogging (non-fire rated devices only)
• A: Alarm
• (Blank) No option

Finishes:

• 313 - Dark bronze anodized
• 335 - Black anodized
• 628 - Clear anodized
• US3 - Bright brass
• US4 - Satin brass
• US32 - Bright stainless
• US32D - Satin stainless
