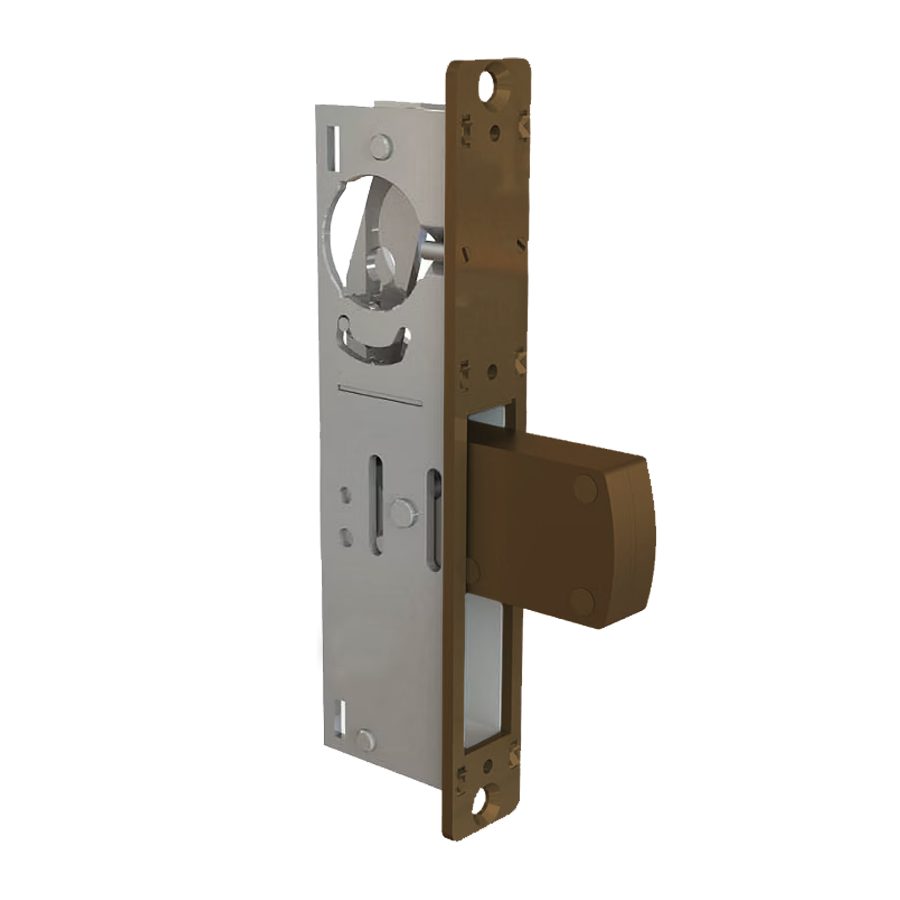

Adams Rite MS1950P-210-313 31/32in Deadbolt, Flat Faceplate, No Strike Plate, Anodized Dark Bronze

Adams Rite Manufacturing MS1950P-210-313 31/32in Backset Deadbolt is engineered to deliver superior security for narrow stile aluminum doors. This robust deadlock features a laminated stainless steel bolt that effectively resists hacksaw attacks, ensuring that your entryways remain secure against unauthorized access. Its fully stainless steel construction, including the case and internal components, guarantees durability and reliability. With a case measuring 1" x 6" and a depth that varies by backset, the MS1950P is designed for maximum protection. The deadbolt's straight design measures 5/8" x 1-3/8" with a 1-3/8" throw, providing a strong locking mechanism. The faceplate measures 1" x 6-7/8" and is available in a sleek anodized dark bronze finish that complements any modern design. Operation is seamless; a simple 360-degree turn of the key or thumbturn retracts the counterbalanced bolt, allowing easy access while maintaining security. The lock body is compatible with various interior mechanisms to accommodate diverse traffic control needs. Ideal for both commercial and residential applications, the Adams Rite MS1950P deadbolt is a premium choice for those seeking a dependable locking solution. Its combination of advanced materials and thoughtful design ensures peace of mind without compromising on style.

31/32in Backset Deadbolt, Flat Faceplate, Without Strike Plate, 695/SP313 Anodized Dark Bronze

The stainless steel MS1950P Series MS deadlock utilizes a laminated stainless steel bolt, now with enhanced security features, to provide maximum security for a single leaf narrow stile aluminum door. The stainless steel MS1950P-X5X series MS deadlock utilizes a laminated stainless steel hook bolt, now with enhanced security features, to provide maximum security for a sliding narrow stile aluminum door. Both are activated by a pivot mechanism.

Features:

• Cylinder Backset: 31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2" [38.1 mm] only
• Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Fully stainless steel case and internal components. Internal stainless steel plate for enhanced security.
• Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws.
• MS1950P Bolt: Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw
• MS1950P-X5X Bolt: 5/8" x 1-3/8" [15.9 mm x 349.9 mm] with 13/16" [20.3 mm] throw. Hook shape repels pry bar attempts to "spread" the door from its jamb or lift it off its track.
• Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
• Strike: Trim plate, box strike, and armored strike are available separately.
• Options: "Schoolhouse" version, also available, is modified so that operation from inside is "unlock only". This lock is handed and must be specified LH or RH. Specify Series SCH1950, (-X5X). Same faceplate and backset options as Series MS1950P, (-X5X)

Function:

• A 3" laminated stainless steel bolt and complete stainless steel construction makes the heavy duty MS1950P MS® Deadlock a higher security, premium locking solution for swinging doors. The MS1950P is compatible with header and threshold bolts to accommodate multi-point locking in a double door application. The stainless steel hook bolt of the MS1950P-X5X Series MS® Deadlock answers the security need of sliding doors. The hook shaped bolt resists the parting motion of sliding door and jamb.

Operation:

• For ingress, a 360˚ turn of the key or thumbturn on the exterior cylinder retracts the counterbalanced bolt. While the bolt is retracted the door acts as a passage function, until the deadlock is re-locked from either side of the opening. Typically, if the door remains unlocked during business hours, the interior side is equipped with a mortise cylinder and indicator to allow for flexible traffic control by management. An interior thumbturn to lock the bolt and a 4550 lever can also be installed on the interior side to ensure free egress & ADA compliance. Key can be removed only when bolt is in a locked or unlocked state. Lock body accepts a mortise cylinder, thumbturn, 4089 indicator, or 4550 deadlock lever from either side.

How to Order:

• Faceplate:
• 0P: Flat
• 1P: Radius
• 1WP: Radius with weatherstrip
• 2P: Bevel
• 3P: Without faceplate, without strike plate
• Backset:
• 2: 31/32"
• 3: 1-1/8"
• 4: 1-1/2"
• Bolt Shape:
• 1: Straight bolt
• 5: Hook bolt
• Handing:
• 0: Non-Handed
• 5: LH or RHR
• 6: RH or LHR

Finishes:

• 313 - Dark Bronze Anodized
• 335 - Black Anodized
• 628 - Clear Anodized
