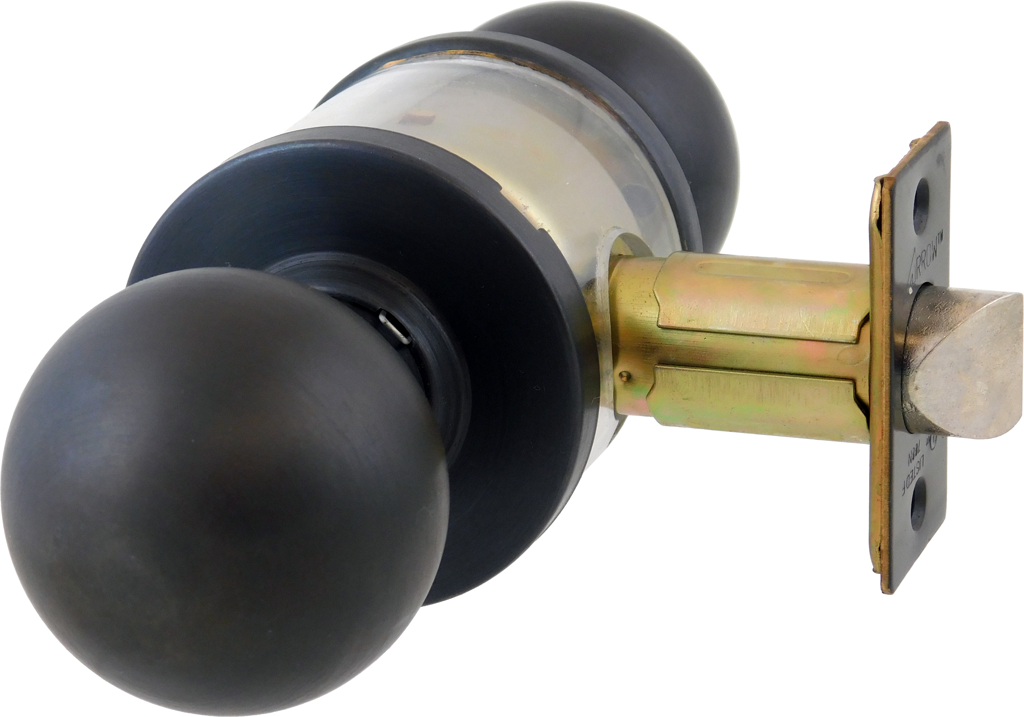

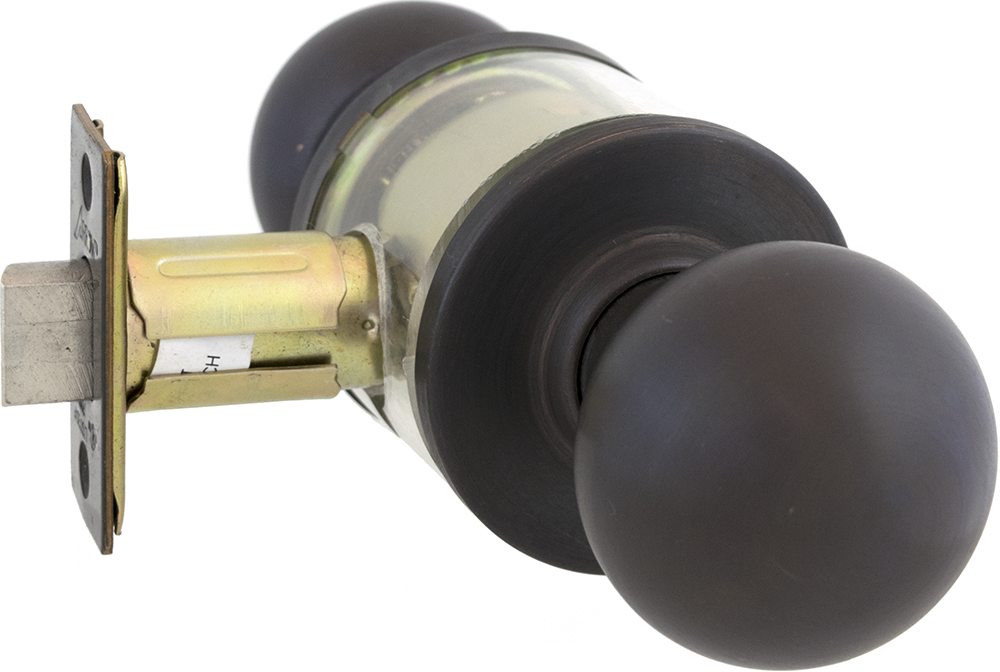

Arrow Lock Company RK01BD10B-2 3/4 BS Passage Ball Knob offers a reliable and economical solution for various applications, particularly in multi-family housing and light commercial settings. This Grade 2 cylindrical lockset is designed for durability and ease of use, featuring a sturdy cold-rolled steel construction with a corrosion-resistant zinc dichromate finish. The RK01BD10B-2 accommodates a backset of 2-3/4 inches, making it suitable for standard door thicknesses ranging from 1-3/8 inches to 1-3/4 inches. Its 1/2-inch throw latch is UL listed, ensuring security with a guarded latchbolt across all locking functions. The lockset is non-handed, allowing for versatile installation without concern for door orientation. Exposed trim features a beautifully designed wrought brass rose with a 2-1/2-inch diameter, while the lockset utilizes a solid brass, 6-pin cylinder with the standard Arrow "A" keyway. Each package includes two brass keys for added convenience. The RK series meets ANSI A156.2, Series 4000 standards, providing peace of mind for security professionals and homeowners alike. With a sleek oil-rubbed bronze finish, the Arrow Lock Company RK01BD10B-2 enhances both aesthetic appeal and functional security, making it an excellent choice for your locking needs.

Passage Ball Knob, 2-3/4in Backset, Grade 2, 613/US10B Oil Rubbed Bronze

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Features:

• Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.
• Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch: 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking Functions
• Latch Front:*
• 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
• 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim:
• RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm). RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length.
• RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder:
• Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional.
• Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core.
• Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.
• Keys: 2 brass keys
• Handing: Non-handed
• Certification: The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.

Series Functions:

• RK01 Passage
• RK02 Privacy
• RK08 Half Dummy Trim
• RK11 Entrance
• RK12 Storeroom
• RK17 Classroom

Finishes:

• US3
• US4
• US10
• US10B
• US32
• US32D
