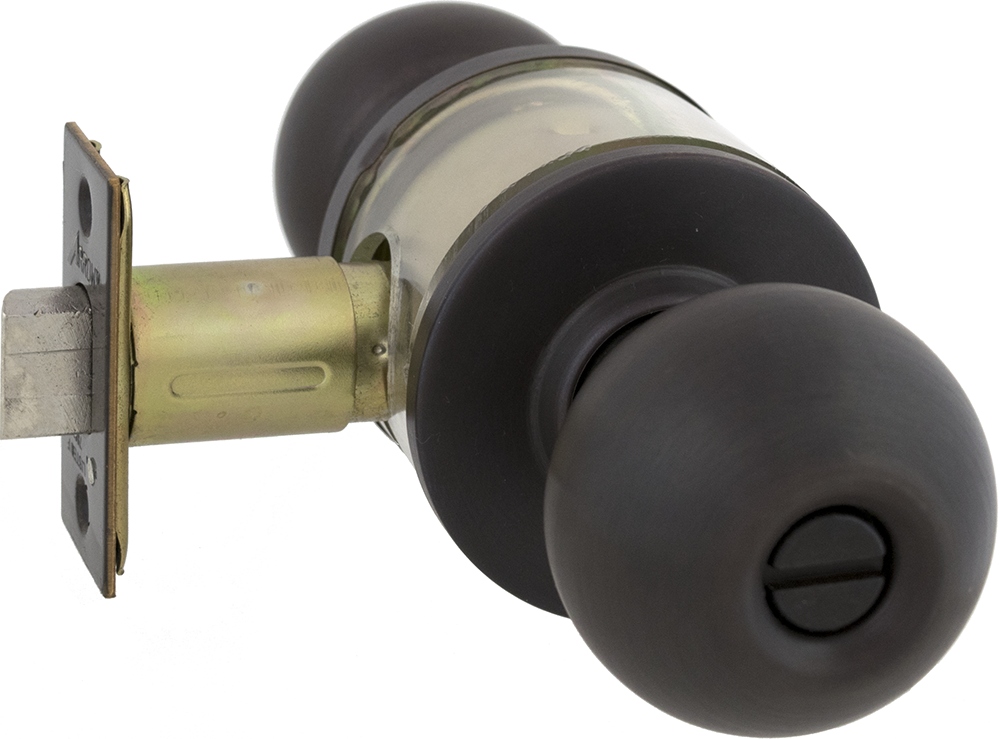

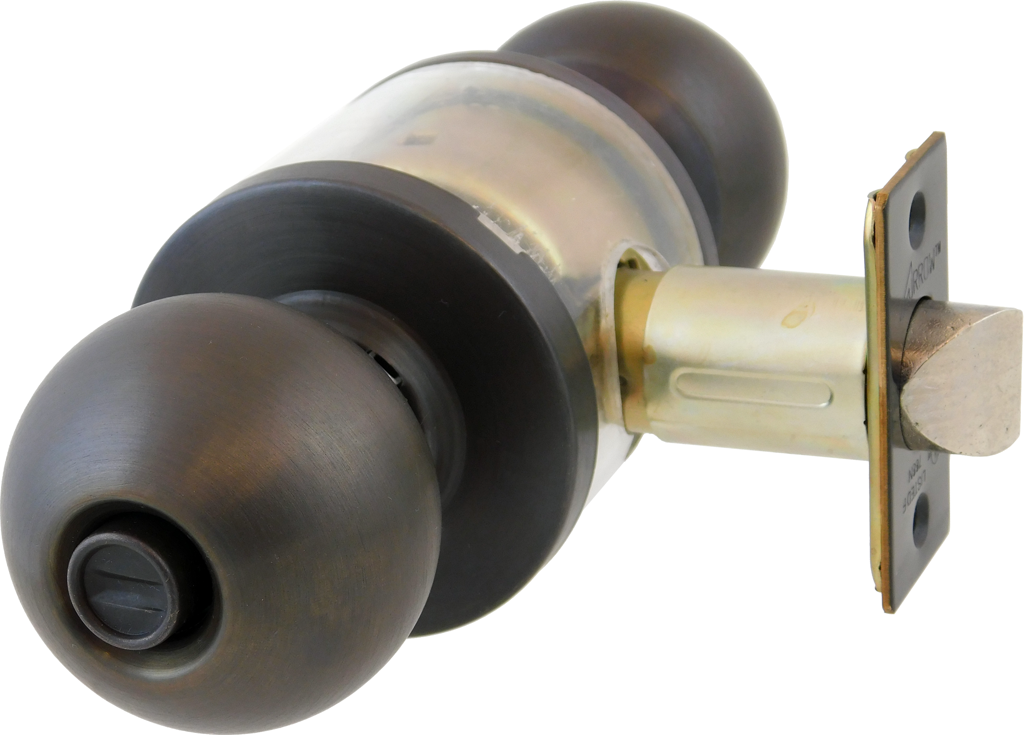

Arrow Lock Company RK02BD10B-2 3/4 BS Privacy Ball Knob is an ideal choice for those seeking a reliable locking solution for residential or light commercial spaces. Designed for versatility, this cylindrical lockset offers a 2-3/4" backset and is suitable for doors ranging from 1-3/8" to 1-3/4" thick. Constructed from cold-rolled steel with a zinc dichromate finish, it provides enhanced corrosion resistance, ensuring longevity in various environments. The RK Series boasts a UL-listed, guarded latchbolt with a 1/2" throw, providing peace of mind in terms of security. With a non-handed design, installation is simplified, making it a practical option for professionals and DIY enthusiasts alike. The lockset includes two brass keys for immediate use and features a 4-7/8" ANSI strike, compatible with standard door frames. Available in a sophisticated oil-rubbed bronze finish (613/US10B), the RK02BD10B-2 combines aesthetic appeal with functional performance. Its Grade 2 certification meets ANSI A156.2 standards, making it suitable for multi-family housing markets. Whether you are upgrading security or installing new locks, the Arrow Lock Company RK02BD10B-2 is a dependable choice that balances style and strength.

Privacy Ball Knob, 2-3/4in Backset, Grade 2, 613/US10B Oil Rubbed Bronze

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Features:

• Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.
• Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch: 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking Functions
• Latch Front:*
• 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
• 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim:
• RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm). RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length.
• RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder:
• Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional.
• Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core.
• Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.
• Keys: 2 brass keys
• Handing: Non-handed
• Certification: The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.

Series Functions:

• RK01 Passage
• RK02 Privacy
• RK08 Half Dummy Trim
• RK11 Entrance
• RK12 Storeroom
• RK17 Classroom

Finishes:

• US3
• US4
• US10
• US10B
• US32
• US32D
