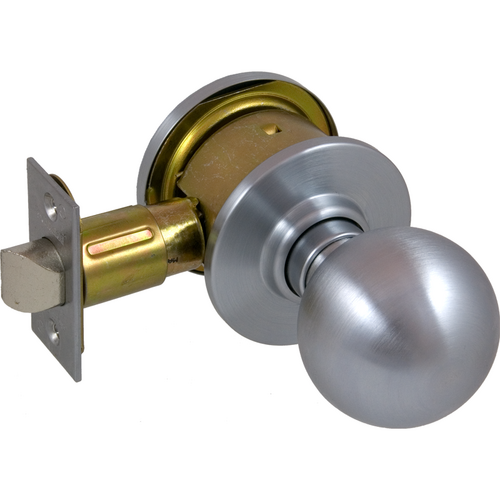

Arrow Lock Company RK12BD10B-IC-2 3/4 BS Storeroom Ball Knob offers a robust and reliable locking solution tailored for storeroom applications. Designed with durability in mind, this Grade 2 cylindrical lockset features a cold-rolled steel construction with a corrosion-resistant zinc dichromate finish, ensuring longevity even in demanding environments. With a backset of 2-3/4 inches, the RK12BD10B accommodates standard 1-3/8" to 1-3/4" door thicknesses, making it versatile for various installations. Its 1/2-inch throw, UL Listed guarded latchbolt enhances security, while the non-handed design simplifies installation. The lock is prepared for a 6 or 7-pin interchangeable core, compatible with multiple keyway manufacturers such as Arrow, Best, and Medeco, providing flexibility in key management. The exposed trim features stylish wrought brass roses, enhancing both aesthetics and functionality. This model is also certified to meet the stringent requirements of ANSI A156.2, Series 4000, Grade 2, UL Listed for use on 3-hour A label single swinging doors, promising reliability and safety. Equipped with two brass keys, the Arrow Lock Company RK12BD10B-IC-2 is an excellent choice for those seeking a high-quality, secure solution for storeroom access.

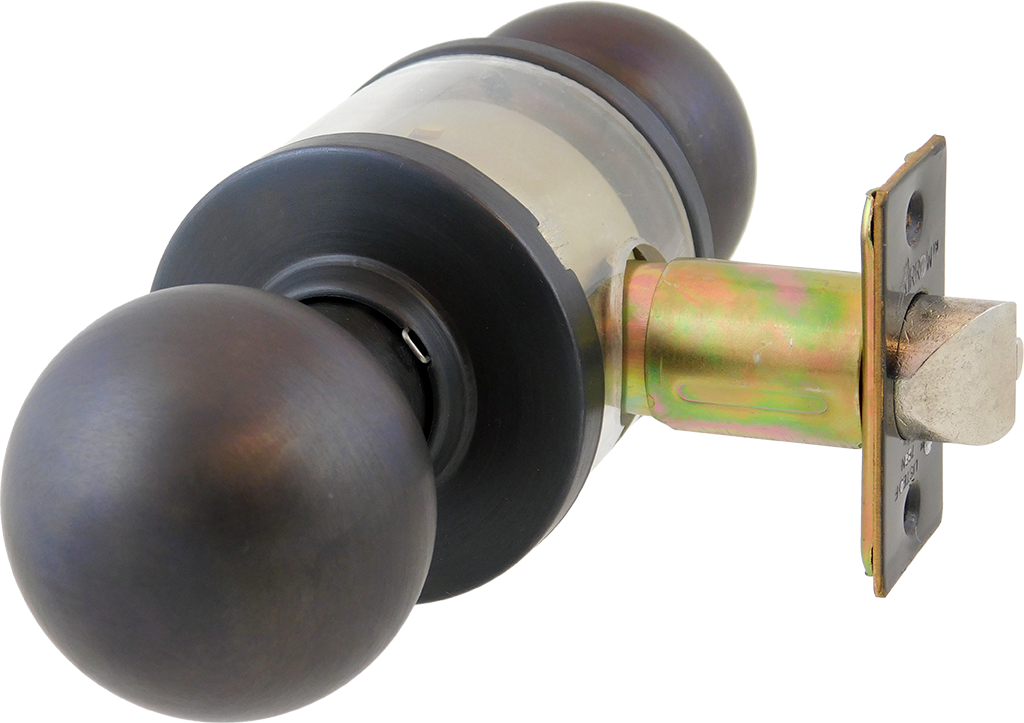

Storeroom Ball Knob, SFIC Less Core, 2-3/4in Backset, Grade 2, 613/US10B Oil Rubbed Bronze

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Features:

• Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.
• Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch: 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking Functions
• Latch Front:*
• 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
• 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim:
• RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm). RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length.
• RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder:
• Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional.

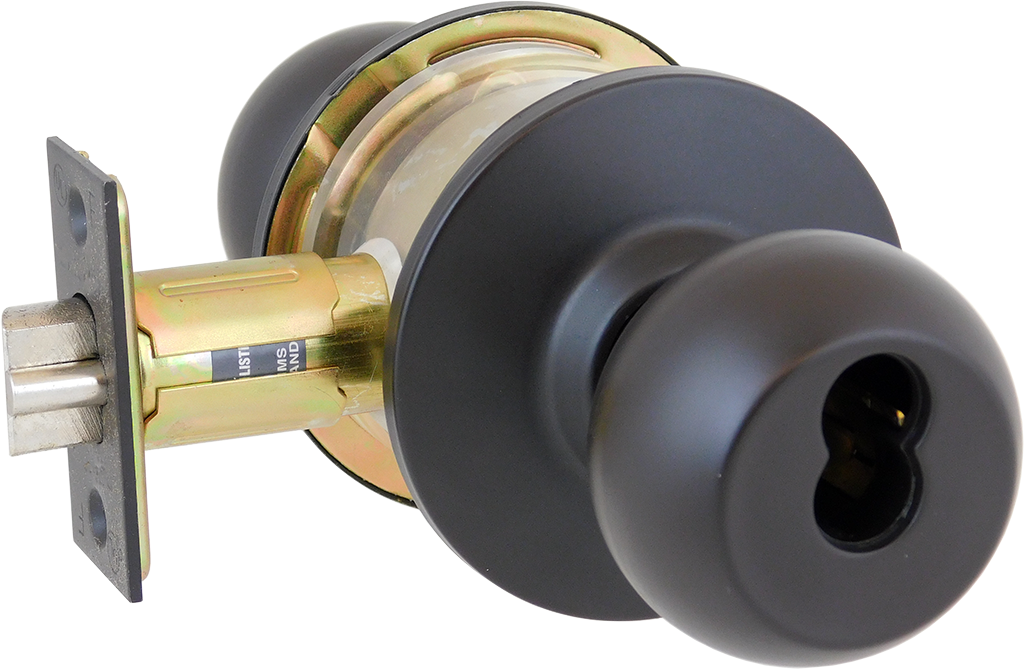

• Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core.
• Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.
• Keys: 2 brass keys
• Handing: Non-handed
• Certification: The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.

Series Functions:

• RK01 Passage
• RK02 Privacy
• RK08 Half Dummy Trim
• RK11 Entrance
• RK12 Storeroom
• RK17 Classroom

Finishes:

• US3
• US4
• US10
• US10B
• US32
• US32D
