CDVI Americas A22K1TB Atrium 2-Door Kit combines cutting-edge technology with user-friendly management for robust access control solutions. This hybrid controller supports the most popular Wiegand card readers or the Krypto high-security solution, ensuring versatility for any security setup. The A22K controller features encrypted web-based access, allowing you to manage your system securely from your smartphone, tablet, or any web-enabled device. It controls two doors and four readers, making it ideal for both residential and commercial applications. With support for up to 10,000 users and cards, this system is designed for scalability and efficiency. Included in the kit are the K1 Krypto high-security card reader and the TAG-EV2 MiFare DESFire EV2 4k badge, providing a comprehensive access solution. The K1 reader is compatible with the A22K controller and boasts a read range of up to 2 inches, while the TAG-EV2 offers discreet and lightweight identification. With features like AES 256-bit encryption, an embedded secure HTTPS web server, and maintenance-friendly snap-on terminal connectors, the A22K1TB Atrium 2-Door Kit ensures both security and convenience. Elevate your access control capabilities with this all-in-one solution from CDVI Americas.

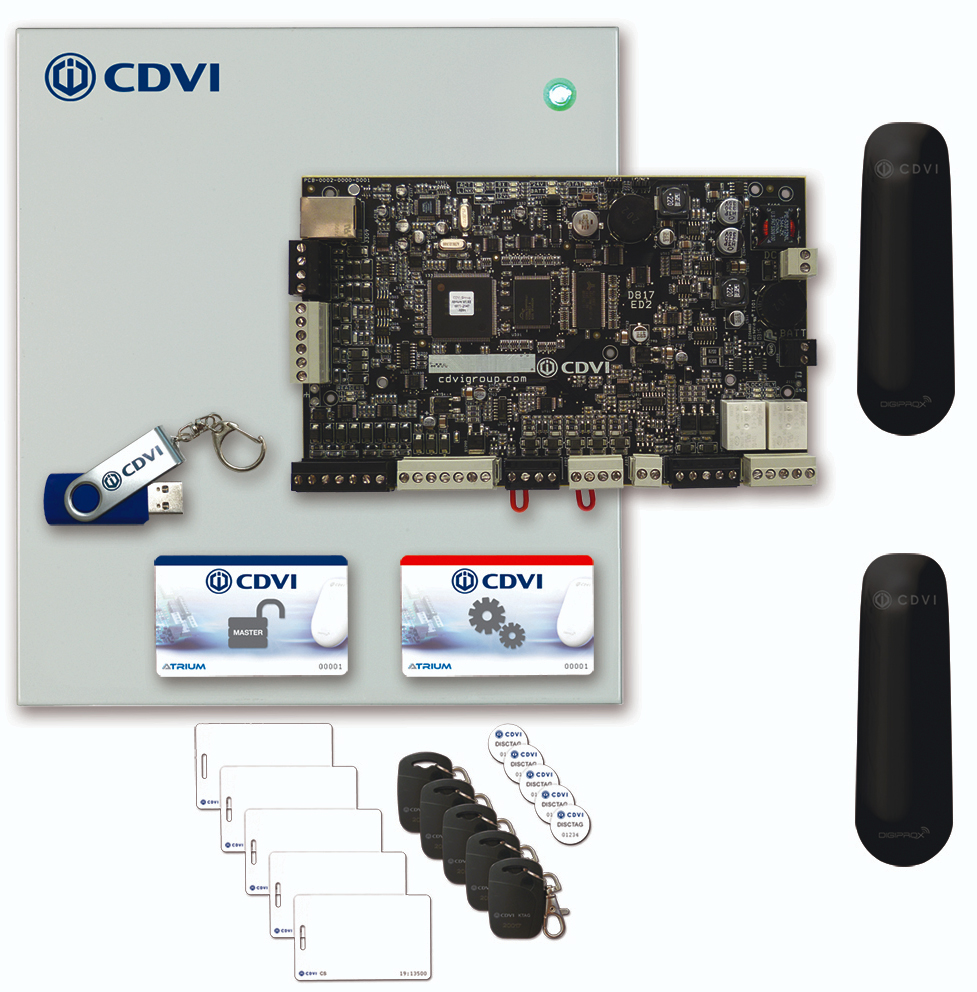

Atrium 2-Door Kit - A22, 2-Nano, 15 Credentials

The Atrium A22K controller is a hybrid controller that works perfectly with the most popular Wiegand card readers or with the KRYPTO high security solution. The A22K controller has the best of both worlds.

Features:

• A22K – Encrypted 2-Door / 4-Reader IP Controller: The A22K is Atrium’s encrypted web-based (https) door controller. Use your smartphone, tablet or any web-enabled device to easily manage the system over a secure connection in the office, at home or on the road.
• K1– Krypto High Security Card Reader: CDVI proximity card readers are recognized worldwide, having won several awards for their innovative design. CDVI has a full and varied range of proximity card readers to meet all of your needs. This includes mini, mullion, vandal-resistant and card reader/keypad combinations.
• TAG-EV2 – MiFare DESFire EV2 4k Badge: The TAG-EV2 is our newest MiFare DESFire EV2 4K key badge, giving you a lightweight and discreet tag option.

Specifications:

A22K – Encrypted 2-Door / 4-Reader IP Controller:

• Controls 2 doors and 4 readers (Entry/Exit per reader port).
• Pre-assembled universal plug-in power supply (120V/240V) included.
• Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors).
• On-board Ethernet Port with AES 256-bit encryption.
• On-board RS485 communication bus, 1220 m (4000 feet).
• Embedded secure HTTPS web server.
• Auto-detect hardware modules.
• Quick and easy card enrollment procedure.
• Lock outputs: 2 (750 mA @ 12 VDC/each).
• Relay Outputs: 2 Form C relays (Dry Contact) 5 A @ 250 VAC, 7 A @ 125 VAC, 7 A @ 30 VDC.
• 6 multi-purpose inputs (12 using zone doubling).
• IPV6 ready.
• Entirely fuseless system.
• Up to 10,000 users.
• Up to 10,000 cards.
• Up to 25,000 Event Buffer.
• FREE Atrium Software.
• Maintenance-friendly snap on terminal connectors.
• Comprehensive LED status indicators.

K1– Krypto High Security Card Reader:

• Compatible with Atrium A22K controller.
• Fully secure RS-485 connection.
• Reads 13.56 MHz MiFare Classic and DESFire EV1/EV2 credentials.
• OSDP-2 compatible.
• Up to 2 in. (5 cm) read range.
• Operating temperature: - 13°F to 140°F.
• Power requirements: 12 VDC.
• Dimension (LxHxD): 1.65" x 5.5" x 0.91".

TAG-EV2 – MiFare DESFire EV2 4k Badge:

• DESFire Ev2 4k format.
• 1.75"(45mm) x 0.5"(13mm) x 0.08"(2mm).
• 13.56 MHz proximity card.
• Pack of 25 cards.
