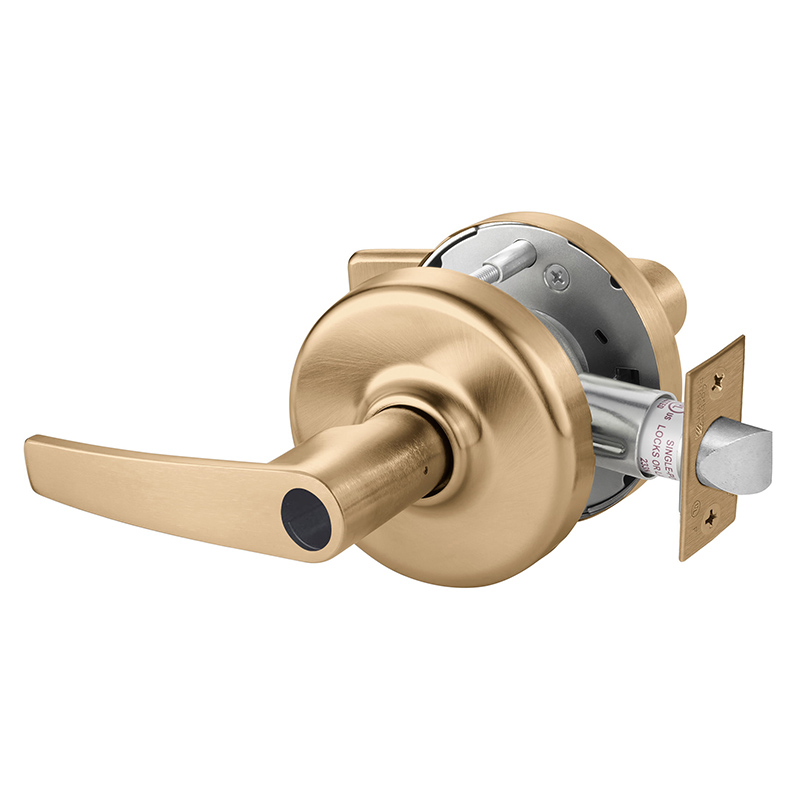

An economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. ItÍs the ideal lever lockset for standard commercial applications. When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability. Typical applications
Attributes
Ship via: Can Ship UPS
Ansi Function: F84 - Classroom
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Country of Origin: Usa
Cylinder Type: Less Cylinder
Door Thickness: 1-3/8" - 1-3/4"
Finish: 612/US10
Finish Description: Satin Bronze Clear Coated
Fire Rated: 3 Hours {A}
Function: 55-Classroom
Function Family: Classroom
Grade: Grade 2
Hand: Not Handed
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Number: 600F10
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: AZ - Armstrong
Lever Knob Design Family: Straight Lever
Lever Knob Design Name: Armstrong
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Number: D
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Strike Height: 4-7/8"
Strike Number: 217L13
Strike Type: ASA
Strike Width: 1-1/4"
Structure Function: 55
Structure Outside Finish: 612/US10
Structure Outside Rose: D
Structure Outside Trim: AZ
Structure Series: CL38
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
