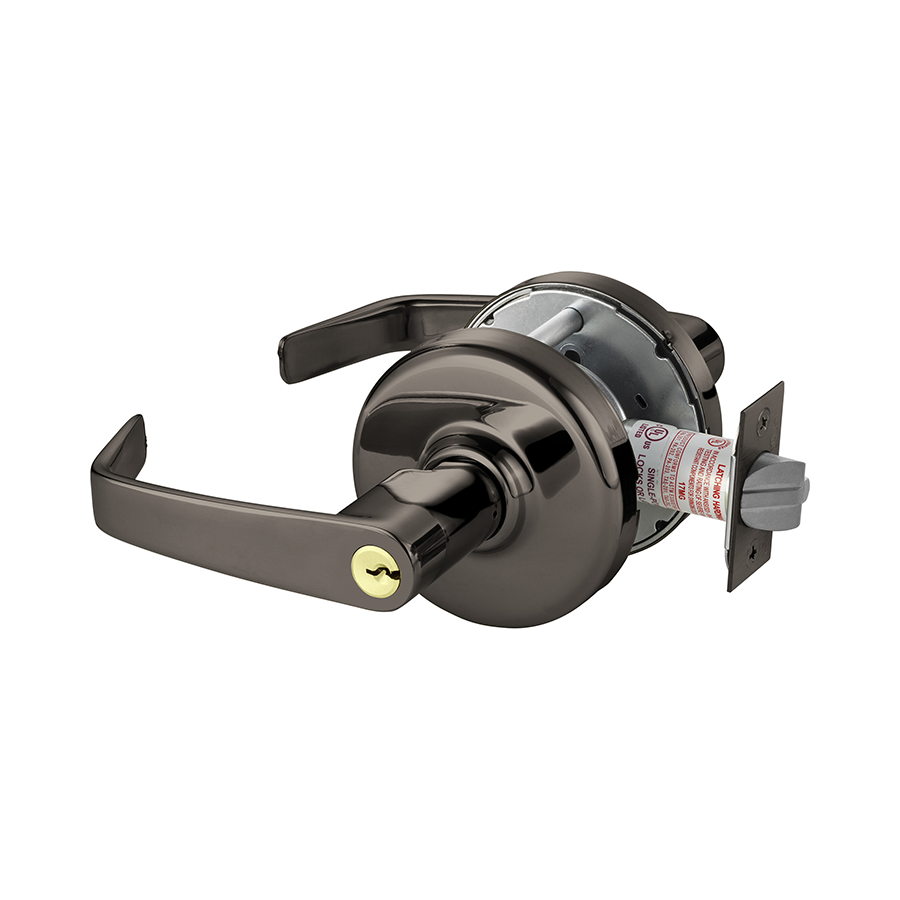

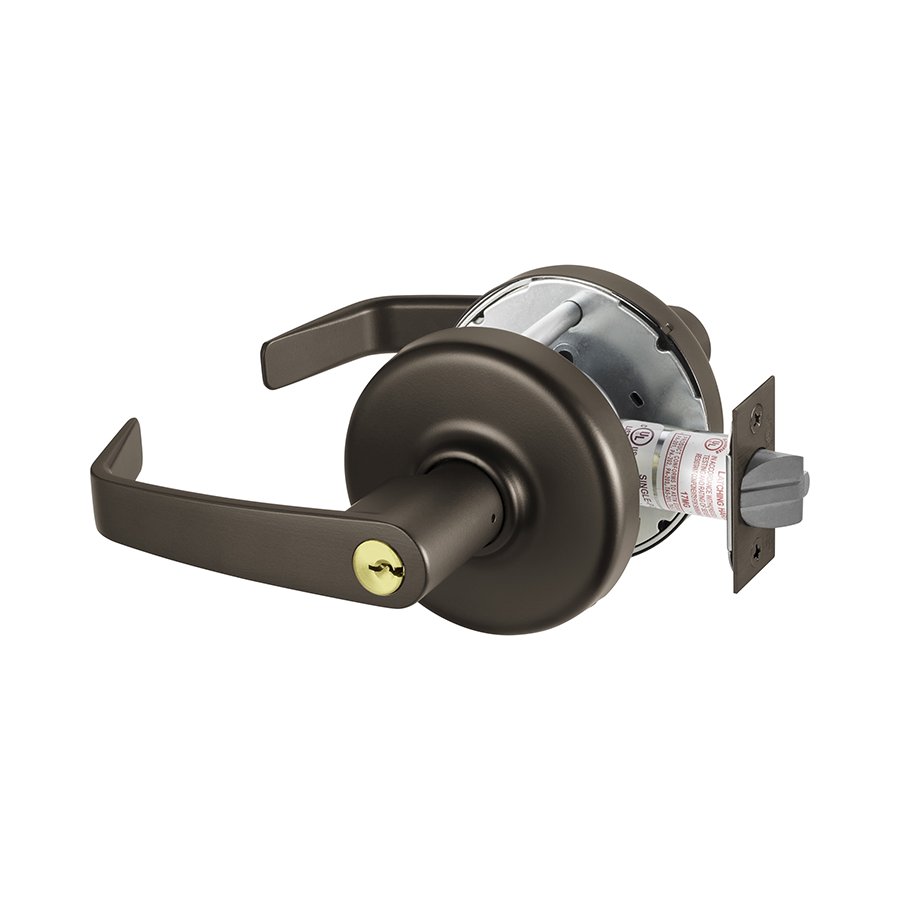

Corbin Russwin CLX3332-NZD-613E-L4 0BIT KIT is a Grade 1 Double Cylinder Institution Newport Cylindrical Lever designed for high-traffic environments where security and aesthetics are paramount. This robust lock features a 2-3/4" backset and is finished in a sophisticated dark oxidized satin bronze (613E/US10BE), ensuring both durability and a stylish appearance. Engineered to exceed ANSI/BHMA Grade 1 standards, the CLX3300 Series boasts exceptional resistance to forced entry, withstanding over 3,100 lbs of abusive locked lever torque and 1,600 lbs of offset lever pull. Its design allows for smooth operation, with independent return springs that prevent lever sag, ensuring longevity even in high-use scenarios. The innovative push/turn button is built to endure excessive abuse, making it ideal for institutional settings. This lock supports various cylinder formats, including fixed and interchangeable cores, providing flexibility for new construction and retrofit projects. UL and ULC listed for safety, the CLX3332 also features EcoFlex® technology, promoting energy efficiency with up to 92% savings. With a ten-year limited warranty, this lock is a reliable choice for enhancing security in commercial spaces while complementing various design styles. Upgrade your security with the trusted performance of Corbin Russwin.

KIT - Grade 1 Double Cylinder Institution Newport Cylindrical Lever, L4 6-Pin 0-Bit (2 Cylinders), 2-3/4in Backset, ANSI Strike SA114, 613E/US10BE Dark Oxidized Satin Bronze

The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.

Features:

• Exceeds 3,100 in-lb abusive locked lever torque with no entry while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements)
• Exceeds 1,600 lbs offset lever pull with no entry for protection against attacks (8 times ANSI/BHMA A156.2 requirements)
• Latch retraction with 100 lb preload (2 times ANSI/BHMA A156.2) while maintaining ANSI/BHMA requirements for operation in warped doors or doors with latch bind.
• No access with minimum 100 vertical impacts for protection against vandalism attempts (20 times ANSI/BHMA A156.2 requirements)
• Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
• UL Cycle above and beyond test completed at 20 Million Cycles. Verification ID: V875753
• Innovative push/turn button design to withstand excessive abuse against door stops or walls.
• Lock body design supports all cylinder formats allowing flexibility for from fixed core to interchangeable core cylinders.
• High Security and security key systems available (Access 3, Pyramid)
• Patented and/or patent pending adjustable push/turn button for easy door thickness adjustment.
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 92% energy savings
• Lever Release freewheeling levers standard for vandal resistance; rigid lever optional.
• Available with 27 mechanical and 2 electromechanical functions
• Provides maximum resistance to vandalism and other malicious attacks
• Certified above & beyond testing to withstand high volume traffic
• Complements the look of any design style
• Minimizes inventory stocking requirements
• Simplifies installation in new and retrofit applications
• Integrates with new or existing facility's key systems

Specifications:

• ANSI/BHMA Code: A156.2
• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Large Format, Small Format, Conventional
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Handing: Non-handed
• Latchbolt Throw: 1/2"
• Maximum Backset: 5"
• Maximum Door Thickness: 2 1/4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Curved Lip
• UL Listed: Yes
• ULC Listed: Yes
• Warranty: 10-year limited warranty

Functions Non-Cylinder:

• CLX3310: Passage, Closet
• ANSI No. F75
• Latchbolt by lever either side.
• Both levers always free.
• CLX3320: Privacy Bath/Bedroom
• ANSI No. F76A
• Outside lever locked by push button (lever handle is freewheeling in locked position).
• Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door.
• Inside lever always free.
• CLX3320H: Hospital Privacy
• ANSI No. NA
• Outside lever locked by push button (lever handle is freewheeling in locked position).
• Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door.
• Inside lever always free.
• CLX3320TO: Timeout Lock
• ANSI No. NA
• Latchbolt by lever either side (passage) unless push button depressed and held by caretaker (detention side becomes freewheeling). Lock returns to passage mode upon release of push button.
• Push button automatically releases when caretaker releases push button.
• Both levers always free.
• CLX3330: Privacy Bath/Bedroom
• Outside lever locked by push button (lever handle is freewheeling in locked position)
• Outside lever unlocked by emergency coin turn outside, by rotating inside lever or by closing door
• Inside lever always free
• CLX3340: Patio or Privacy Lock
• ANSI No. F77A
• Deadlocking latchbolt by lever.
• Outside lever locked by push button (lever handle is freewheeling in locked position).
• Outside lever unlocked by operating inside lever or closing door.
• Inside lever always free.
• Should not be used in rooms that have no other entrance.
• CLX3340NT: Exit Latch
• ANSI No. F89
• Deadlocking latchbolt by lever inside.
• Outside lever always locked (lever handle is freewheeling in locked position).
• Inside lever always free.
• CLX3350: Half Dummy Trim - Through Bolted
• ANSI No. NA
• Lever acts as pull only; no operation.
• Lever is rigid.
• CLX3370: Full Dummy Trim
• ANSI No. NA
• Levers act as pulls only; no operation.
• Lever is rigid.
• CLX3380: Communicating Passage Lock
• ANSI No. F111
• Deadlocking latchbolt by lever.
• Lever on one side; blank plate on other side.
• Lever always free.
• For single or double communicating doors.
• CLX3390: Passage Lever x Turnpiece
• ANSI No. NA
• Deadlocking latchbolt by lever or by turnpiece.
• Lever on one side; turnpiece on other side.
• Lever and turnpiece always free.

Functions Single Cylinder:

• CLX3329: Hotel, Dormitory, Apartment
• ANSI No. F93
• Deadlocking latchbolt by lever inside or by key outside
• Push button shuts out all keys except emergency key, and projects occupancy indicator in face of cylinder (lever handle is freewheeling in locked position)
• Push button released by turning inside lever or by closing door, unless push button has been fixed in locked position by spanner key (provided).
• When push button is fixed in locked position by spanner key, lock is operable only by emergency key.
• Outside lever always locked
• Inside lever always free
• Not available with other manufacturers keyways
• CLX3351: Entrance or Office
• ANSI No. F109
• Deadlocking latchbolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position).
• Turning inside lever unlocks outside lever.
• Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.
• Inside lever always free.
• CLX3355: Classroom
• ANSI No. F84
• Deadlocking latchbolt by lever either side, except when key outside locks outside lever (lever handle is freewheeling in locked position).
• Outside lever unlocked by key outside.
• Inside lever always free.
• CLX3357: Storeroom or Closet
• ANSI No. F86
• Deadlocking latchbolt by key in outside lever or by rotating inside lever (lever handle is freewheeling in locked position).
• Inside lever always free.
• CLX3359: Barrier Free Storeroom or Public Restroom
• ANSI No. NA
• Deadlocking latchbolt by inside lever.
• Key outside unlocks outside lever to retract latchbolt.
• Key is retained in unlock mode.
• When key is removed outside lever is locked (lever handle is freewheeling in locked position).
• Inside lever always free.
• CLX3361: Entry, Office
• ANSI No. F82A
• Deadlocking latchbolt by lever either side, except when push button locks outside lever.
• Push button released by turning inside lever or by key in outside lever (lever handle is freewheeling in locked position).
• Closing door does not release push button.
• Inside lever always free.
• CLX3375: Corridor, Dormitory
• ANSI No. F90
• Deadlocking latchbolt by lever either side except when pushbutton or key locks outside lever.
• Pushbutton released by turning inside lever or by closing door.
• Depressed pushbutton indicates door is locked.
• When outside lever is locked by key, it can only be unlocked by key.
• Inside lever always free.
• CLX3376: Corridor, Dormitory (Modified)
• ANSI No. F90 (Modified)
• Deadlocking latchbolt by lever either side except when pushbutton or key locks outside lever.
• Pushbutton released by turning inside lever or by closing door.
• Depressed pushbutton indicates door is locked.
• When outside lever is locked by push button or key, it can be unlocked by key, turning inside lever or closing door.
• Inside lever always free.
• CLX3381: Communicating
• ANSI No. F113
• Deadlocking latchbolt by lever, except when lever is locked by key (lever handle is freewheeling in locked position).
• Lever on one side; blank plate on other side.
• Key unlocks lever.
• CLX3383: Communicating Storeroom
• ANSI No. F112
• Deadlocking latchbolt by key in lever (lever handle is freewheeling in locked position).
• Lever always locked.
• Lever on one side; blank plate on other side.
• CLX3393: Service Station
• ANSI No. F92
• Deadlocking latchbolt by lever.
• Outside lever locked by slotted push button (lever handle is freewheeling in locked position).
• When slotted push button is pushed in and turned, outside lever becomes freewheeling and deadlocking latch is activated. Outside lever is unlocked by using key or by rotating inside lever, when slotted push button returned to original position.
• Inside lever always free.

Functions Double Cylinder:

• CLX3332: Utility, Asylum, Institutional
• ANSI No. F87
• Deadlocking latchbolt by key either side (lever handles are freewheeling in locked position).
• Should be used only in office or room with multiple entries.
• Keyed alike unless otherwise specified.
• CLX3352: Intruder Classroom
• ANSI No. F110
• Deadlocking latchbolt by inside lever or outside lever except when key inside or outside locks outside lever (lever handle is freewheeling in the locked position).
• Outside lever is locked and unlocked by turning the key in the inside or outside lever.
• Inside lever always free.
• CLX3362: Communicating
• ANSI No. F80
• Deadlocking latchbolt by lever either side, except when key in either lever locks and unlocks the lever independently of the other (lever handle is freewheeling in locked position).
• Keyed alike unless otherwise specified.
• Should be used only in office or room with multiple entries.
• CLX3372: Classroom, Security, Apartment, Exit, Privacy
• ANSI No. F88
• Deadlocking latchbolt by lever either side, except when key inside locks outside lever (lever handle is freewheeling in locked position).
• Key outside retracts latchbolt.
• Key inside unlocks outside lever.
• Inside lever always free.
• Keyed alike unless otherwise specified.
• CLX3382: Store, Storeroom
• ANSI No. F91
• Deadlocking latchbolt by lever either side, except when both levers are locked by key from either side (lever handle is freewheeling in locked position).
• Keyed alike unless otherwise specified.
• Should be used only in office or room with multiple entries.

Functions Electromechanical:

• CLX33903: Fail Safe
• Deadlocking latchbolt by lever either side except when power on locks outside lever
• Power off/unlocks outside lever
• Inside lever always free
• Latchbolt retracted by key when locked electrically
• CLX33905: Fail Secure
• Deadlocking latchbolt by lever either side except when power off locks outside lever
• Power on/unlocks outside lever
• Inside lever always free
• Latchbolt retracted by key when power is off

Levers:

• 102 - Museo Line - Georgia Collection
• 106 - Museo Line - Salvador Collection
• 123 - Museo Line - Salvador Collection
• 124 - Museo Line - Georgia Collection
• AZ - Standard
• NZ - Standard
• PZ - Standard

Finishes:

• 605/US3 - Bright brass
• 606/US4 - Satin Brass
• 611/US9 - Bright bronze
• 612/US10 - Satin bronze
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated
• 619/US15 - Satin nickel plated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 722/US10A - Black oxidized satin bronze, oil rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
