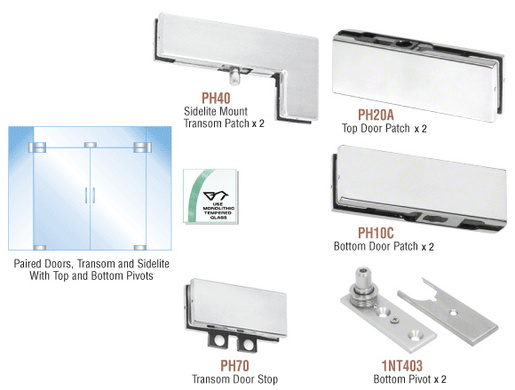

C.R. Laurence PHA8A Satin Anodized North American Patch Door Kit for Double Doors is designed to enhance the functionality and aesthetic appeal of your entrance. This comprehensive kit includes everything necessary to create a pair of free-swinging doors, complemented by a fixed transom and two sidelites, while excluding the glass and additional supports for the transom and sidelites. Constructed for 3/8" or 1/2" (10 mm or 12 mm) tempered glass, this kit is versatile and can be customized with or without locks, accommodating various project needs. The pivot setback measures 2-3/4" (70 mm), ensuring a seamless integration with your existing structures. A floor closer with a tapered spindle is available separately to enhance door operation. Included in the kit are two PH40 sidelites mount transom patches, two PH20A top door patches, two PH10C bottom door patches, one PH70 transom door stop, and two 1NT403 bottom pivots. Gaskets for the tempered glass are also provided, although note that holes and notches are required in the glass. For building professionals and discerning homeowners alike, the PHA8A kit offers a robust and stylish solution for double door systems.
Satin Anodized North American Patch Door Kit for Double Doors for Use with Fixed Transom and Two Sidelites - Without Lock
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: Can Ship UPS
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Sidelite-Pair With Transom-Sidelite
Door Type: A Style Glass Door
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback: 2-3/4
Shipping Limitations: None
