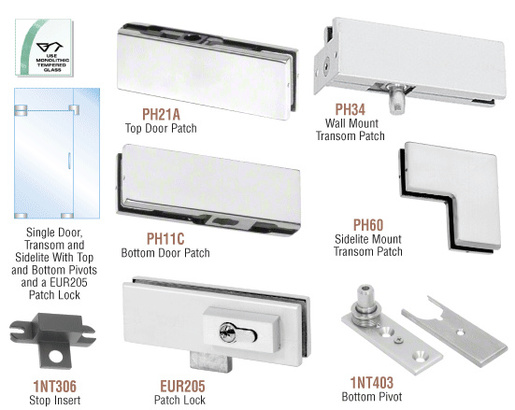

C.R. Laurence PHE4LA Satin Anodized European Patch Door Kit for Use with Fixed Transom and One Sidelite - With Lock offers a comprehensive solution for creating a sophisticated, free-swinging glass door system. Designed for 3/8" or 1/2" (10 or 12 mm) tempered glass, this kit includes all necessary hardware to ensure a seamless installation (glass and additional supports for the transom and sidelite are not included). The kit features a pivot setback of 2-9/16" (65 mm), facilitating smooth operation and stability. Included components are expertly crafted to provide a complete setup: one PH34 wall mount transom patch, one PH60 sidelite mount transom patch, one PH21A top door patch, one PH11C bottom door patch, a stop insert, and a bottom pivot. For added security, the kit comes with a EUR205 patch lock, with additional cylinders, thumbturns, and keepers available separately. With five architectural finishes available, the PHE4LA kit allows for aesthetic customization to complement various design styles. Adhering to GANA guidelines, this product ensures maximum door sizes and performance reliability. Elevate your architectural projects with the precision and elegance that C.R. Laurence is known for.
Satin Anodized European Patch Door Kit for Use with Fixed Transom and One Sidelite - With Lock
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: Can Ship UPS
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Single With Transom-Sidelite
Door Type: F Style Glass Door
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback: 2-9/16
Shipping Limitations: None
