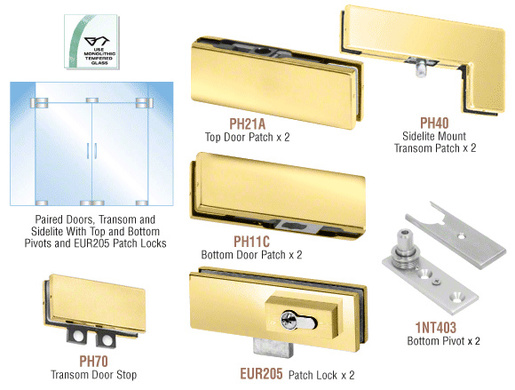

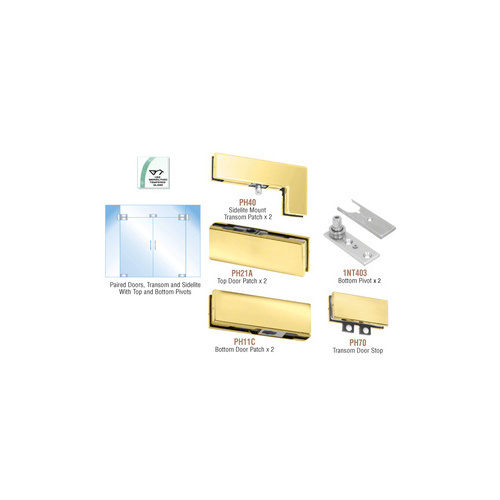

C.R. Laurence PHE8LBR Polished Brass European Patch Door Kit for Double Doors offers a sophisticated solution for creating elegant entrances with fixed transoms and sidelites. This comprehensive kit is designed for 3/8" or 1/2" (10 or 12 mm) tempered glass, ensuring a secure and stylish setup. The PHE8 features a pivot setback of 2-9/16" (65 mm) and includes all necessary hardware components, except for the glass and additional supports for the transom and sidelites. Included in the kit are two PH40 sidelites mount transom patches, two PH21A top door patches, two PH11C bottom door patches, one PH70 transom door stop, and two 1NT403 bottom pivots. Gaskets are also provided for the specified glass thickness, with the requirement for holes and notches in the glass. For added security, kits are available with locks that include two EUR205 patch locks, although cylinders, thumbturns, and keepers must be ordered separately. Please note that while the polished brass finish is durable, it may be prone to oxidation and tarnishing over time. This kit complies with GANA guidelines for maximum door sizes, making it an ideal choice for professional applications where aesthetics and functionality are paramount.

Polished Brass European Patch Door Kit for Double Doors for Use with Fixed Transom and Two Sidelites - With Lock

• For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
• Available With or Without Locks

Resources

• Brass Finish Disclaimer
