CRL Z106W White Z-Series Large Round Clamp for 1/4" Glass

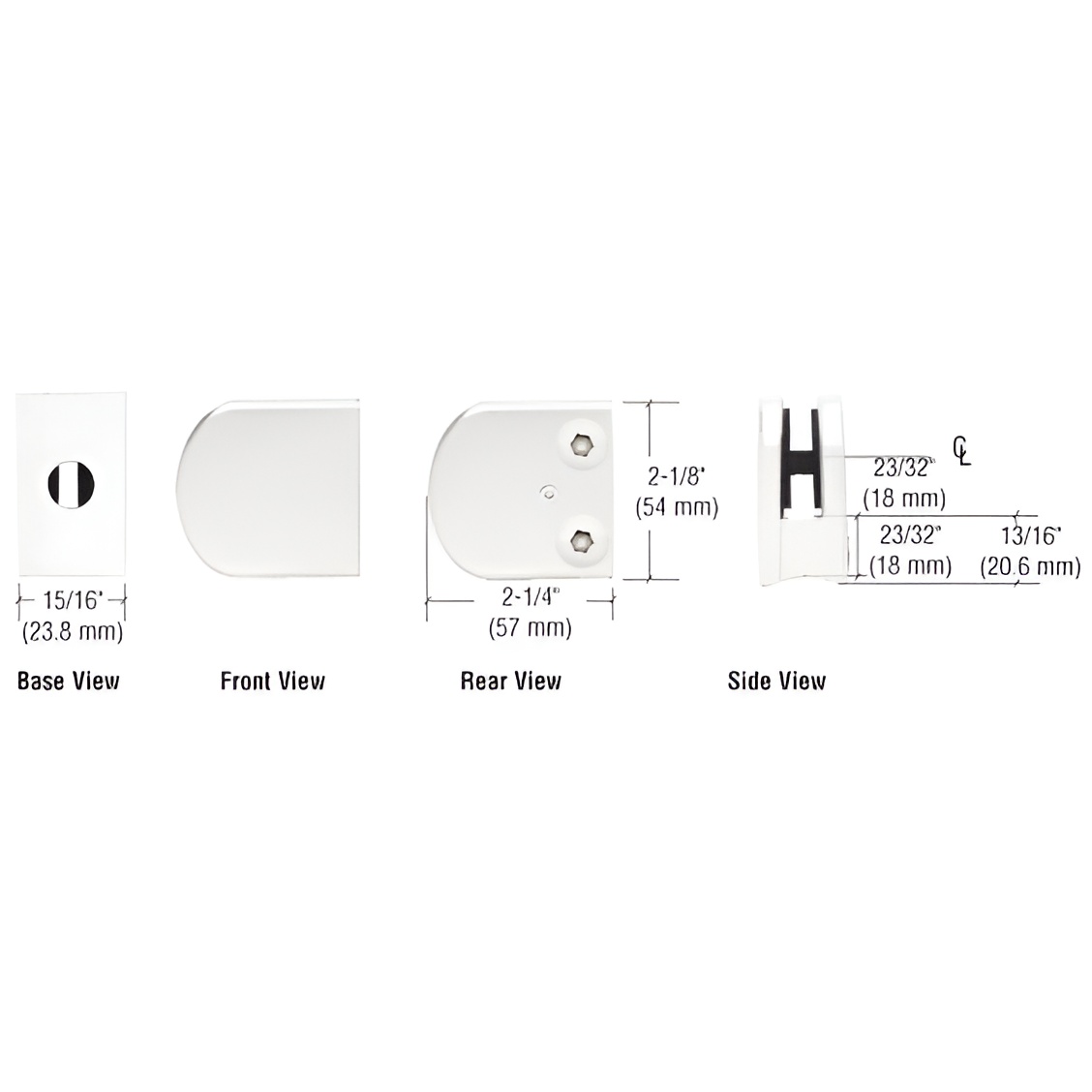

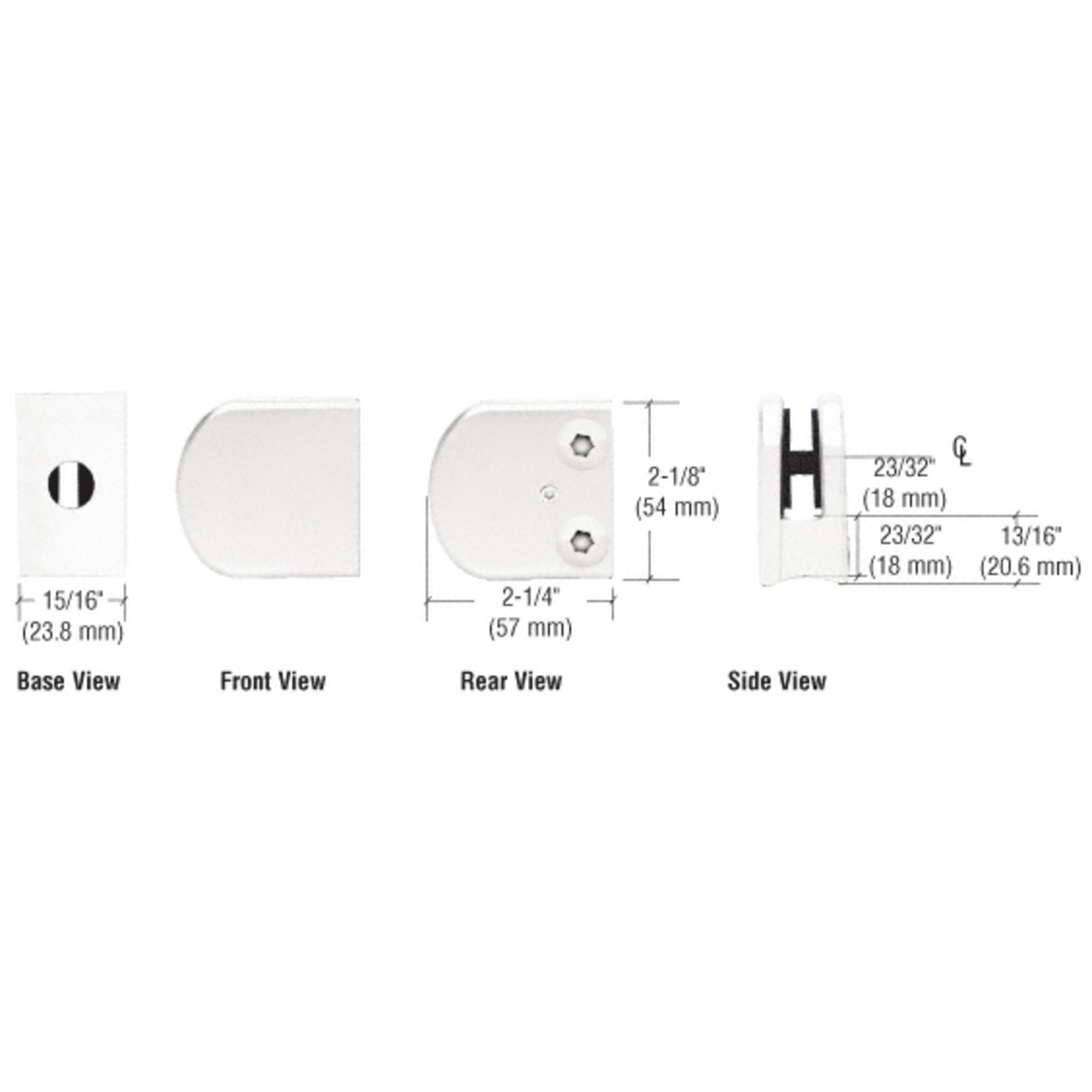

C.R. Laurence Z106W White Z-Series Large Round Clamp for 1/4" Glass is an exceptional solution for a variety of architectural applications. Designed specifically for 1/4" (6 mm) glass, this clamp is perfect for partitions, mezzanines, wind breaks, railings, and more. Its versatile radius base can be utilized on both wood and metal tubing, ensuring adaptability across different projects. Constructed from durable zinc, the Z106W clamp promises longevity and reliability. It features a unique design that allows for easy installation; by drilling a 1/2" (12 mm) notch in the glass, the included steel pin can be used to prevent slippage, providing added security. Each clamp is equipped with appropriate rubber gaskets, enhancing the overall performance. With a height of 2-1/4 inches (57 mm) and a width of 2-1/8 inches (54 mm), this clamp has a depth of 15/16 inches (24 mm), making it an efficient choice for your glazing needs. Custom painted finishes are available upon request, allowing for seamless integration into any aesthetic. Ensure your glass panels are secure and stylish with the C.R. Laurence Z106W clamp, a reliable choice for both interior and exterior applications.

White Z-Series Large Round Clamp for 1/4" Glass

• For 1/4" (6 mm) Glass
• An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
• May Be Used on Wood or Metal Radius
• Use Monolithic Tempered Glass
• Custom Painted Finishes Available Upon Request

CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc, or durable stainless steel construction. Z-Series glass clamps are available in sizes to accommodate glass thicknesses from 1/4" (6 mm).

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• Z106 Glass Fabrication Template.pdf
