CRL Z110GP Gold Plated Z-Series Large Round Clamp for 3/8" Glass

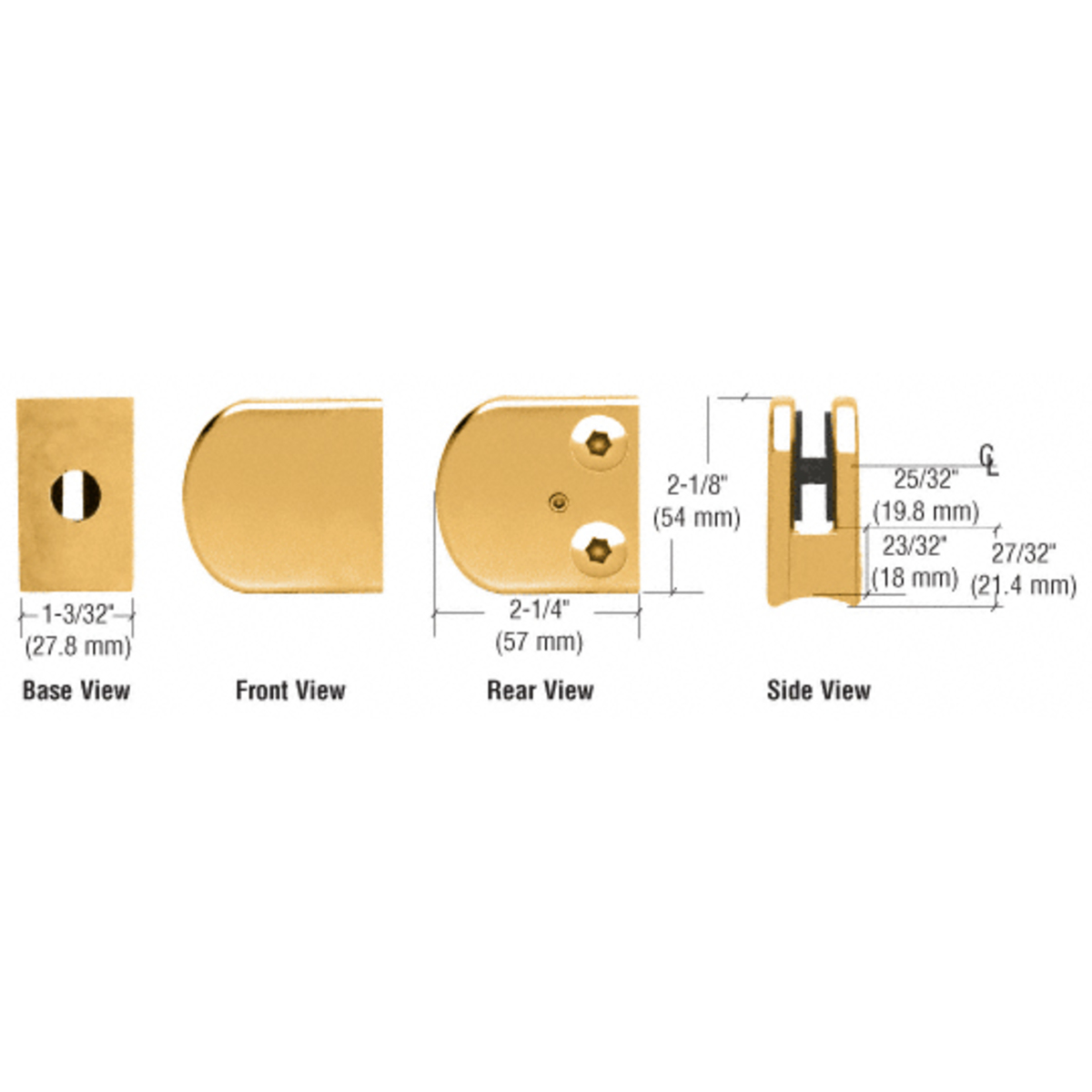

C.R. Laurence Z110GP Gold Plated Z-Series Large Round Clamp for 3/8" Glass is an exceptional choice for various applications, including partitions, mezzanines, wind breaks, and railings. Specifically designed for 3/8" (10 mm) monolithic tempered glass, this clamp combines both style and functionality, featuring a stunning gold-plated finish that enhances any installation. Crafted from durable zinc, the Z110GP clamp is equipped with a radius base, allowing for seamless integration with 2" (51 mm) tubing. To ensure stability, the included pin can be used to mitigate glass slippage by drilling a notch in the glass. Each clamp comes with appropriate gaskets to promote a secure fit. The product measures 2-1/4 inches in height, 2-1/8 inches in width, and has a depth of 1-3/32 inches, making it a compact yet robust option for various professional settings. For enhanced customization, custom painted finishes are available upon request. When using the Z110GP clamp, it is recommended to pin each glass panel as necessary to prevent slippage, especially in applications where the glass is unsupported from the bottom edge. Trust in C.R. Laurence for high-quality, reliable glazing solutions that meet your architectural needs.

Gold Plated Z-Series Large Round Clamp for 3/8" Glass

• For 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
• May Be Used on Wood or Metal Radius
• Custom Painted Finishes Available Upon Request

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• Z110 Glass Fabrication Template.dwg
• Z110 Glass Fabrication Template.pdf
• Z110 Glass Fabrication Template.pdf
