CRL Z155SS Satin Stainless Z-Series Large Square Glass Clamp for 3/8" Glass

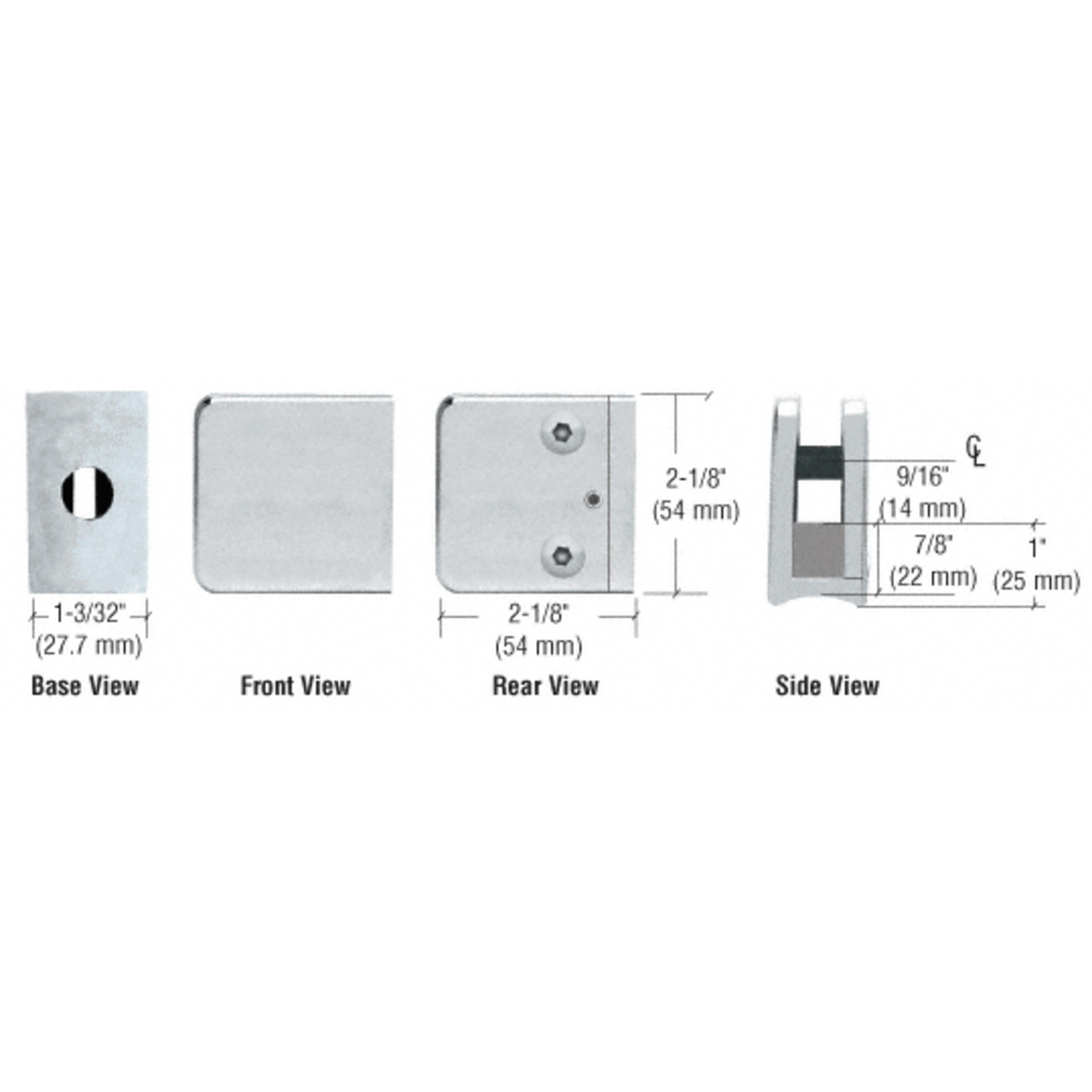

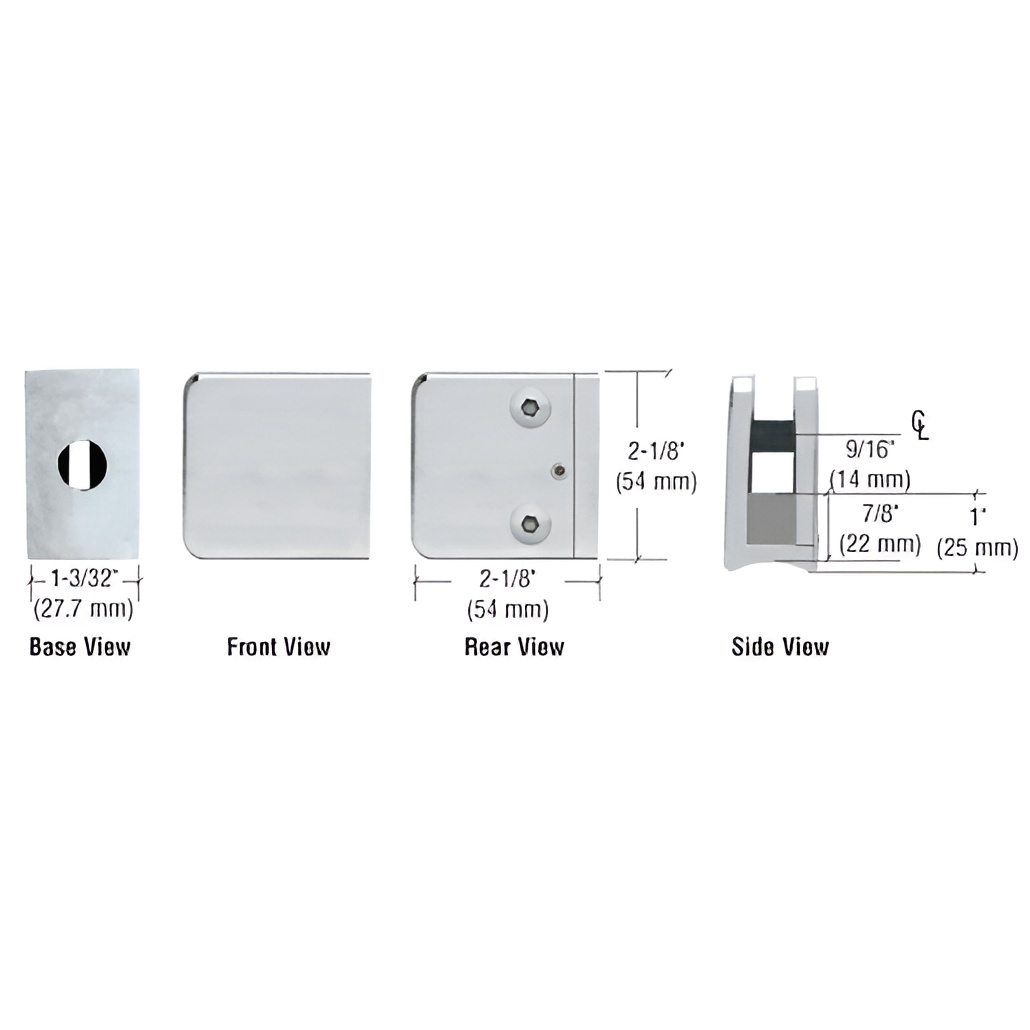

C.R. Laurence Z155SS Satin Stainless Z-Series Large Square Glass Clamp for 3/8" Glass is an essential component for any architectural project requiring reliable glass support. Designed to accommodate 3/8" (10 mm) monolithic tempered glass, this clamp is perfect for various applications, including partitions, mezzanines, wind breaks, and railings. The Z155SS features a robust satin stainless steel construction, ensuring durability and a refined appearance that complements any commercial decor. Its unique radius base design allows for easy installation on 2" (51 mm) tubing. Each clamp includes a steel pin that can be utilized through a drilled hole in the glass to prevent slippage, enhancing safety and stability. For added convenience, rubber gaskets and replacement screws (CRL P612) are included, facilitating a straightforward installation process. Custom painted finishes are also available upon request, allowing this glass clamp to seamlessly integrate into your design vision. Measuring 2-1/8 inches (54 mm) in both height and width, the Z155SS offers a compact yet sturdy solution for glass mounting needs. With no shipping limitations, this versatile clamp can be dispatched via UPS, making it an ideal choice for building professionals seeking quality and reliability in their projects.

Satin Stainless Z-Series Large Square Glass Clamp for 3/8" Glass

• May be Used on Wood or Metal Radius
• For 3/8" (10 mm) Glass
• An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
• Use Monolithic Tempered Glass
• All Styles Include Steel Pin for Optional Use Through Hole in Glass to Prevent Slippage
• Use Monolithic Tempered Glass
• Custom Painted Finishes Available Upon Request

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• Z135 Z155 Glass Fabrication Template.pdf
