CRL Z612SC Satin Chrome Z-Series Square Radius Base Zinc Clamp for 1/2" Glass

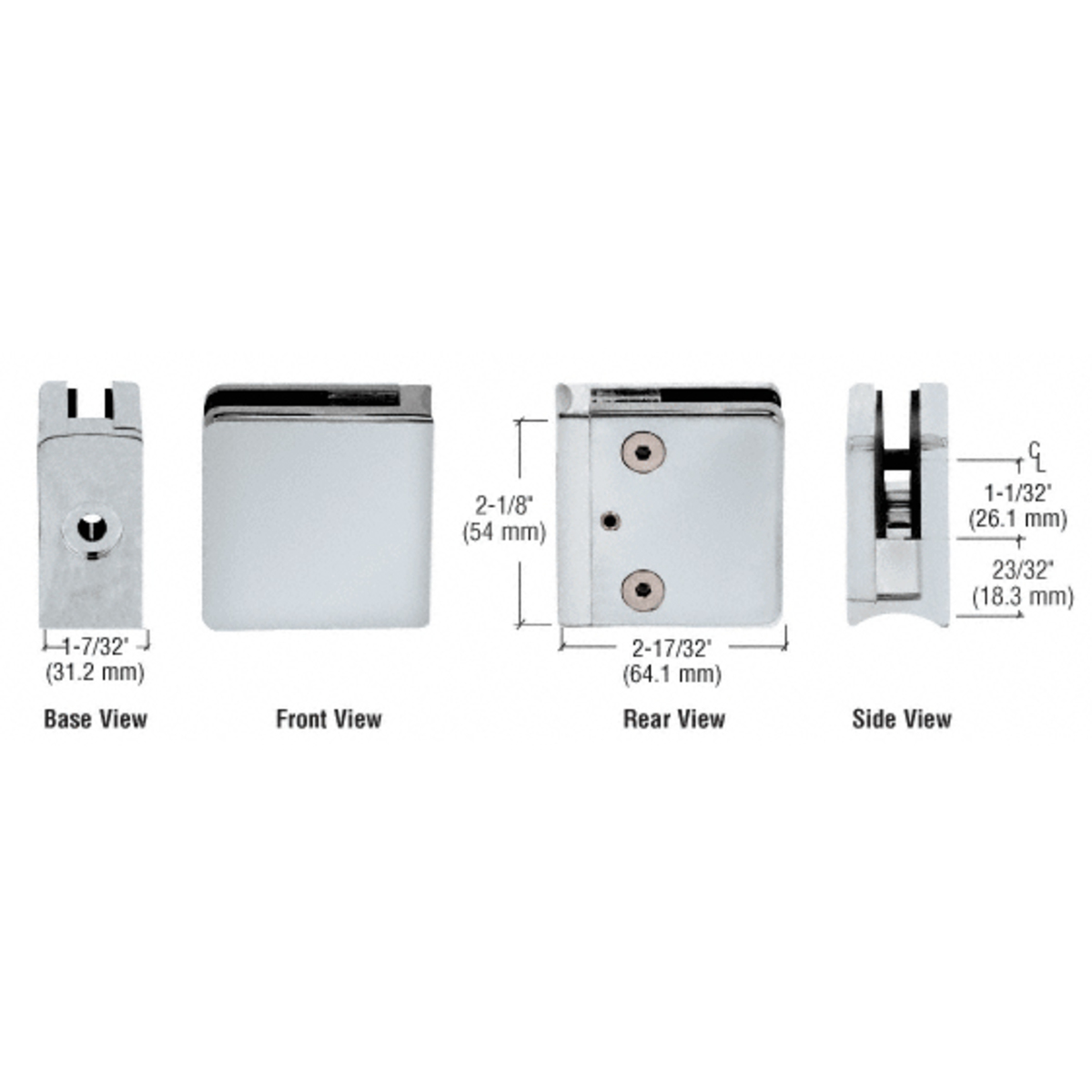

C.R. Laurence Z612SC Satin Chrome Z-Series Square Type Radius Base Zinc Clamp for 1/2" Glass offers a robust solution for securing 1/2" (12 mm) glass in various applications, including mezzanines, partitions, railings, and windbreaks. Crafted from durable zinc, this clamp combines strength with an elegant satin chrome finish, making it ideal for both interior and exterior projects. The Z-Series clamp features a radius base design, ensuring a secure fit with 2" (51 mm) diameter round tubing. It includes rubber gaskets and a steel pin for optional additional glass support, enhancing stability and minimizing the risk of slippage. For installation, a 17/32" (13.5 mm) hole is needed, and the clamp accommodates monolithic tempered glass with precision. This versatile clamp can be customized with painted finishes upon request, allowing for aesthetic flexibility in design. Replacement gaskets are readily available, ensuring long-term usability. Note that when using the steel pin, a 1/2" (12 mm) hole is required for 1/2" thick glass. The clamp's dimensions-2-17/32" (64 mm) in height, 2-1/8" (54 mm) in width, and a depth of 1-7/32" (31 mm)-make it a compact yet powerful addition to your glazing supplies.

Satin Chrome Z-Series Square Type Radius Base Zinc Clamp for 1/2" Glass

• For 1/2" (12 mm) Glass
• Replacement Gaskets are Available by Ordering Cat. No. Z712SG
• For Use on Mezzanines, Partitions, Railings and Windbreaks
• Use Monolithic Tempered Glass
• Steel Pin Available for Additional Glass Support
• Custom Painted Finishes Available Upon Request
