CRL Z706BS Brushed Stainless Z-Series Square Radius Base Clamp for 1/4
Images may not represent actual product and finish

CRL Z706BS Brushed Stainless Z-Series Square Radius Base Clamp for 1/4" 5/16" Glass

Your Price: $29.81
Retail Price:$35.68
Your Savings:$5.87(16%)
The CRL Z706BS Brushed Stainless Steel Clamp securely holds 1/4" to 5/16" glass for partitions, railings, and windbreaks.
Part Number : CRL_Z706BS
Availability: 146 In Stock
CRL Z706BS Brushed Stainless Z-Series Square Radius Base Clamp for 1/4" 5/16" Glass

Brushed Stainless Z-Series Square Type Radius Base Stainless Steel Clamp for 1/4" and 5/16" Glass

  • For 1/4" and 5/16" (6 and 8 mm) Glass
  • Use Monolithic Tempered Glass
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Replacement Gaskets are Available by Ordering Cat. No. Z14SG
  • Steel Pin Available for Additional Glass Support
  • Custom Painted Finishes Available Upon Request

This CRL Z-Series Square Type Radius Base Glass Clamp is designed to be used on glass thickness of 1/4" to 5/16" (6 to 8 mm). Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.


For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.

NOTE: 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.

SPECIFICATIONS:
Glass Thicknesses: For 1/4" and 5/16" (6 and 8 mm).
Base Design: Radius
For Use With: 2" (51 mm) Diameter Round Tubing Only
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
  • For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
    Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
    Replacement Hardware : CRL ZCS5X15SS for Replacement Screws


    Product Warning:

    For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

    • Attributes

    Base Type: Radius

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

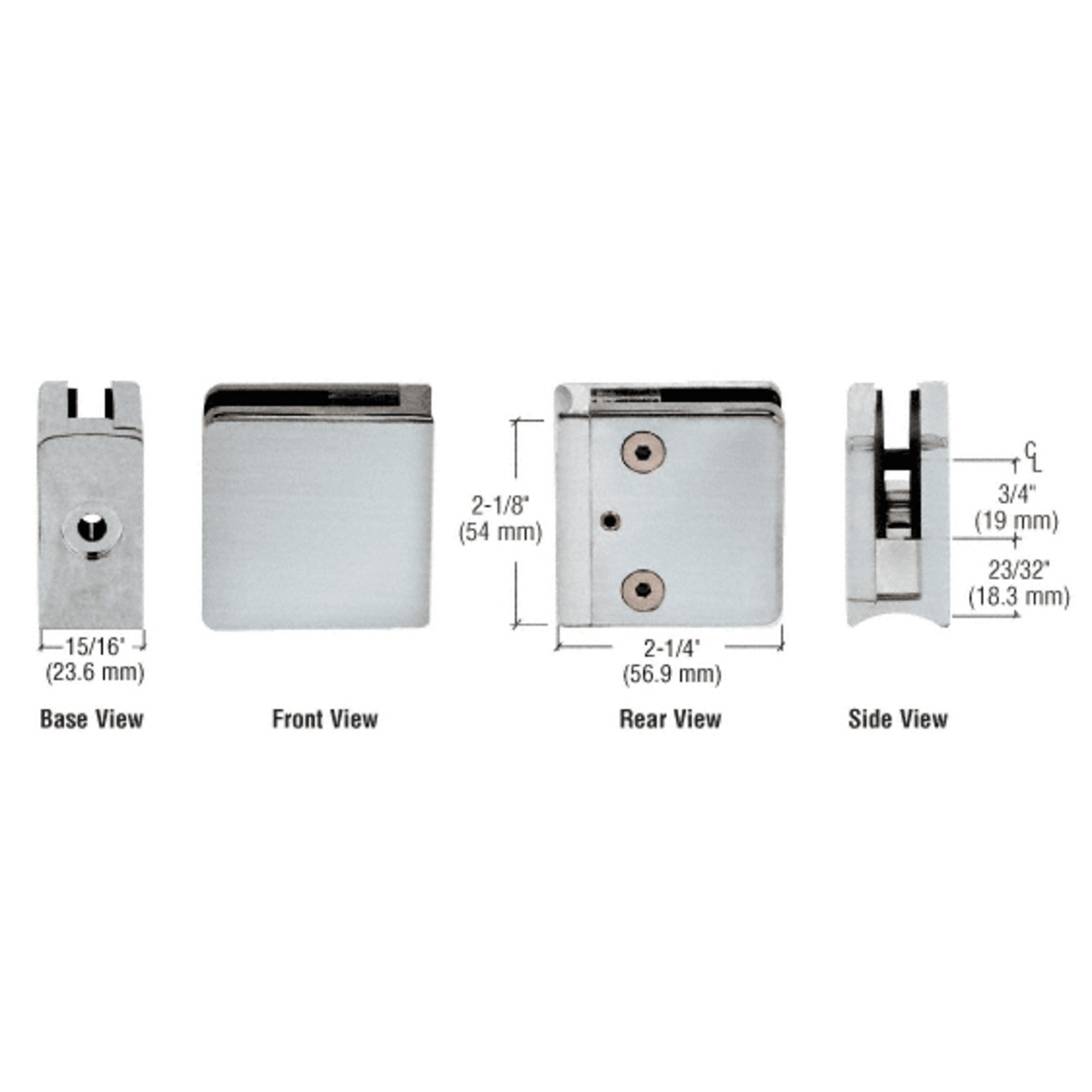

    Depth: 15/16 in. (24 mm)

    Finish/ Color:: Brushed Stainless Steel

    Glazing Thickness: 1/4 in. To 5/16 in. (6 mm To 8 mm)

    Height: 2-1/4 in. (57 mm)

    Material: Stainless Steel

    Profile: Square

    Shipping Limitations: None

    Width: 2-1/8 in. (54 mm)
