CRL Z712PS Polished Stainless Z-Series Square Radius Base Clamp for 1/2
Images may not represent actual product and finish

CRL Z712PS Polished Stainless Z-Series Square Radius Base Clamp for 1/2" Glass

Your Price: $34.07
Retail Price:$40.78
Your Savings:$6.71(16%)
The CRL Z712PS Polished Stainless Steel Clamp securely holds 1/2" glass for railings and partitions, offering durability and style.
Part Number : CRL_Z712PS
Availability: 530 In Stock
CRL Z712PS Polished Stainless Z-Series Square Radius Base Clamp for 1/2" Glass

C.R. Laurence Z712PS Polished Stainless Z-Series Square Type Radius Base Glass Clamp for 1/2" Glass offers a robust solution for securing glass panels in various applications such as mezzanines, partitions, railings, and windbreaks. Designed specifically for 1/2" (12 mm) thick glass, this clamp is constructed from high-quality polished stainless steel, ensuring durability and a sleek appearance. The radius base design accommodates 2" (51 mm) diameter round tubing, making it versatile for different installation scenarios. Each clamp comes with rubber gaskets and a steel pin for optional use, enhancing its grip on the glass and providing additional support. For optimal installation, a 9/16" (14 mm) diameter hole is required if using the steel pin. Replacement gaskets can be sourced easily by ordering Cat. No. Z12SG, and maintenance is simplified with stainless steel's inherent resistance to corrosion-though periodic upkeep is recommended to preserve its finish. Custom-painted finishes are also available upon request, allowing for tailored aesthetics to fit any project. With a height of 2-17/32" (64 mm) and a width of 2-1/8" (54 mm), the Z712PS clamp not only fulfills functional requirements but also adds a touch of elegance to architectural designs.

Polished Stainless Z-Series Square Type Radius Base Stainless Steel Clamp for 1/2" Glass

  • For 1/2" (12 mm) Glass
  • Replacement Gaskets are Available by Ordering Cat. No. Z712SG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Custom Painted Finishes Available Upon Request

This CRL Z-Series Square Type Radius Base Glass Clamp is designed to be used on glass thickness of 1/2" (12 mm). Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.


For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.

NOTE: 9/16" (13.52 mm) Notch is required if using the steel pin (included with the clamp) for additional glass support.

SPECIFICATIONS:
Glass Thicknesses:For 1/2" (12 mm).
Base Design: Radius
For Use With: 2" (51 mm) Diameter Round Tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using steel pin (included) for glass support.
  • For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using steel pin (included) for glass support. Includes: Rubber Gaskets and Steel Pin (for Optional Use) with Grommet
    Replacement Hardware: CRL ZCS5X15SS for Replacement Screws & Replacement gaskets are available by ordering CRL Cat. No. Z14SG.


    Product Warning:

    For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

    • Attributes

    Base Type: Radius

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

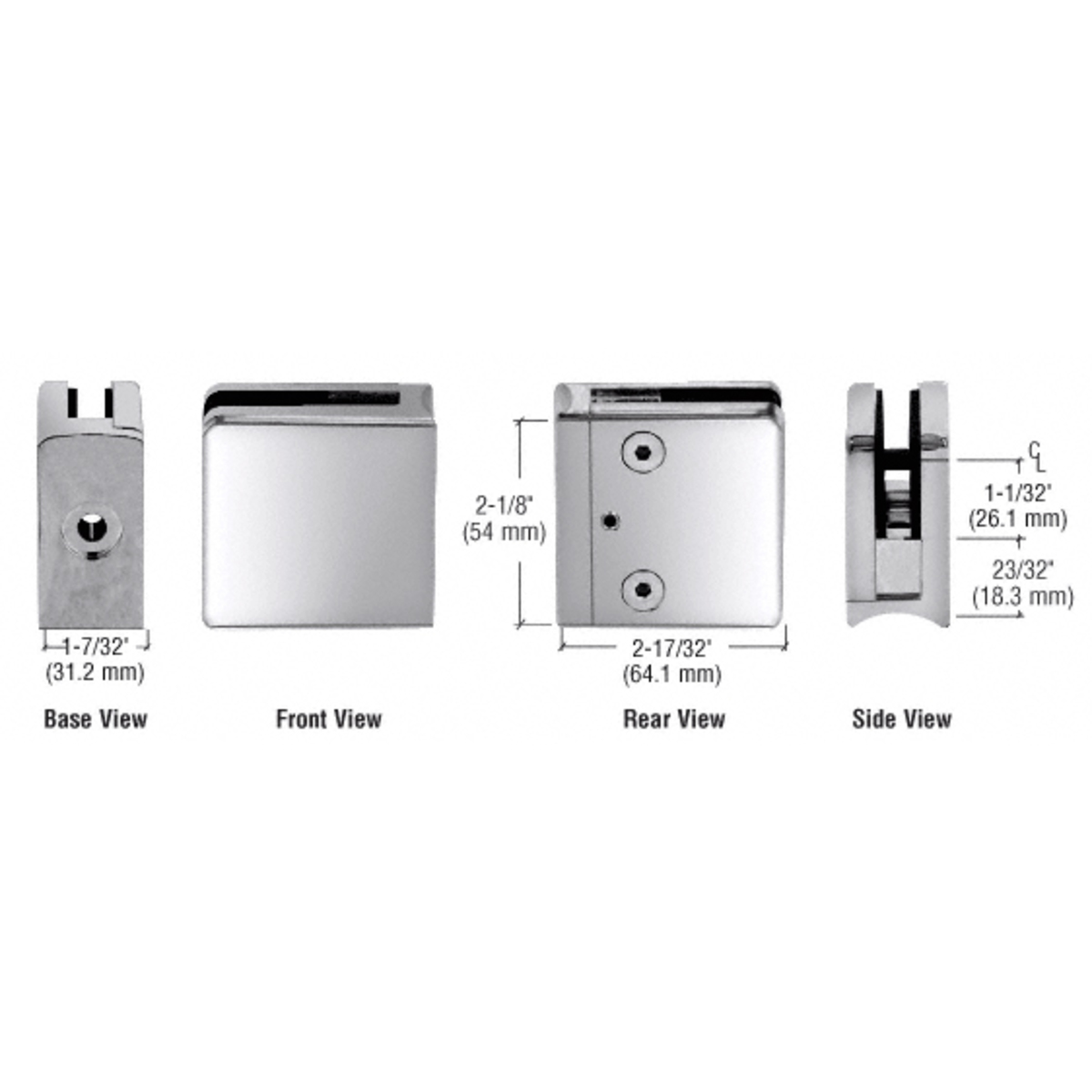

    Depth: 1-7/32 in. (31 mm)

    Finish/ Color:: Polished Stainless Steel

    Glazing Thickness: 1/2 in. (13 mm)

    Height: 2-17/32 in. (64 mm)

    Material: Stainless Steel

    Profile: Square

    Shipping Limitations: None

    Width: 2-1/8 in. (54 mm)
