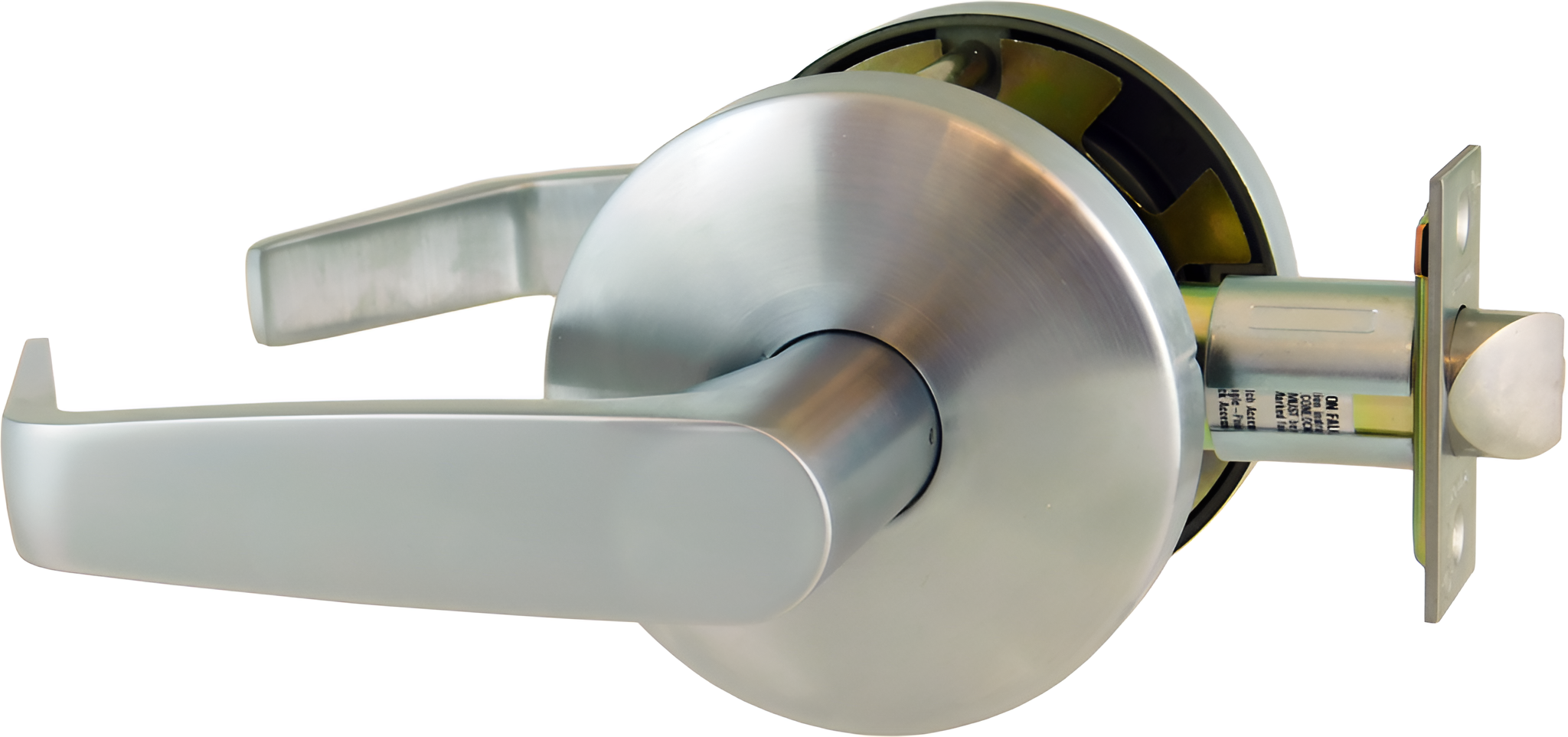

Falcon Lock W561BDDAN626-2 3/4 BS Classroom Dane Lever is engineered for versatility and durability, making it an ideal choice for educational facilities and commercial environments. This cylindrical lock features a deadlatch mechanism and is designed to accommodate door thicknesses ranging from 1-3/8" to 1-3/4". With a 2-3/4" backset, it meets the stringent ANSI/BHMA A156.2, Series 4000, Grade 2 standards, ensuring reliable security. The W561BDDAN626-2 is UL listed for a 3-hour fire rating, providing peace of mind in fire-sensitive areas. Its non-handed design allows for easy installation without the need for field disassembly. The solid pressure-cast zinc lever offers a stylish yet robust finish in satin chrome, enhancing both aesthetics and functionality. Individual heavy-duty springs ensure lever return and prevent sagging. This lockset is compatible with small format interchangeable cores, allowing for easy re-keying and master keying options. The heavy-wrought brass or bronze roses are installed over steel inserts, guaranteeing strength and stability. With two nickel silver keys included, the Falcon Lock W561BDDAN626-2 combines security with user-friendly features, making it an excellent investment for any commercial setting.

Classroom Dane Lever, SFIC, Less Core, Cylindrical Lock, Deadlatch, ANSI Strike, 2-3/4in Backset, Grade 2, UL, 626/US26D Satin Chrome

Whether your application is government/military, retail, industrial or multi-family, there’s a W Series lock that fits perfectly. In two popular lever and two popular knob styles Falcon can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as well as Schlage C Keyway, which we now master key across the complete Falcon product line.

Features:

• Key-in-lever cylindrical locksets shall be Falcon W Series or equal, and meet the following requirements:
• All locks shall meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
• Locksets shall be UL listed 3 hour A Label.
• Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted.
• All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
• Locksets shall adjust to fit door thickness from 1-3/8" to 1-3/4".
• All locksets shall be non-handed and shall not require field disassembly for re-handing.
• Preparation for door must be non-handed.

Specifications:

• Door Thickness: 1-3/8" to 1-3/4" standard.
• Backset: 2-3/4" standard; 2-3/8" also available.
• Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
• Handing: Locks are non-handed.
• Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
• Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
• Keyways: "G" keyway standard on Falcon standard cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage "C" keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage "C" keyways.
• Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
• Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 1" x 2-1/4" latch faces or 2-3/4" backset with 1-1/8" x 2-1/4" latch faces.
• Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
• UL: 3-hour A label.

W Series Levers:

• Levers are solid pressure-cast zinc, finished to match matingparts. Roses are wrought brass or bronze installed over steel through-bolted rose inserts. A spring-loaded retainer secures levers. Secure side retainer cannot be depressed without a key that operates the lock.
• Lever designs
• Dane
• Quantum
• Lever Functions
• W101 Passage Latchset
• W161 Communicating/Exit Latch
• W201 Patio Lock
• W301 Privacy Lock
• W501 Entry Lock
• W511 Entry/Office Lock
• W561 Classroom Lock
• W581 Storeroom Lock
• W711 Apartment Entrance Lock
• W12 Single Dummy Trim

W Series Knobs:

• Knobs are constructed of brass or cold-formed steel and are zinc-plated and dichromated for rust resistance. Springs are stainless steel. Roses are heavy-wrought brass or bronze, installed over wrought steel reinforcing plates. Knobs are brass or bronze, secured by a steel knob retainer, which cannot be depressed when lock has been locked.
• Knob Functions
• W101 Passage Latchset
• W301 Privacy Lock
• W501 Entry Lock
• W511 Entry/Office Lock
• W561 Classroom Lock
• W581 Storeroom Lock
• W711 Apartment Entrance Lock
• W12 Single Dummy Trim

Finishes:

• 605/US3 - Bright brass
• 625/US26 - Bright chrome
• 606/US4 - Satin brass
• 626/US26D - Satin chrome
• 613/US10B - Oil rubbed bronze
