Adjustment facility: Side adjustment -1.5 – 4.5 mm, Height adjustment ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
Area of application: For wood doors
Color/finish: nickel plated
Concealed hinge version: full overlay
Crank type: Straight
Cup drilling depth: 11.00 mm

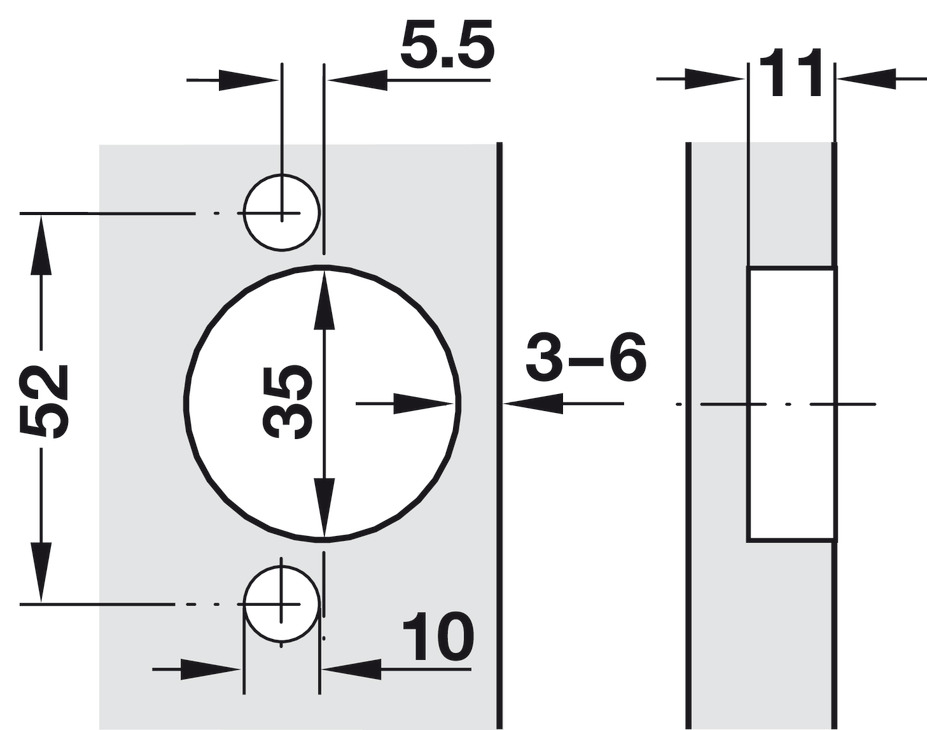

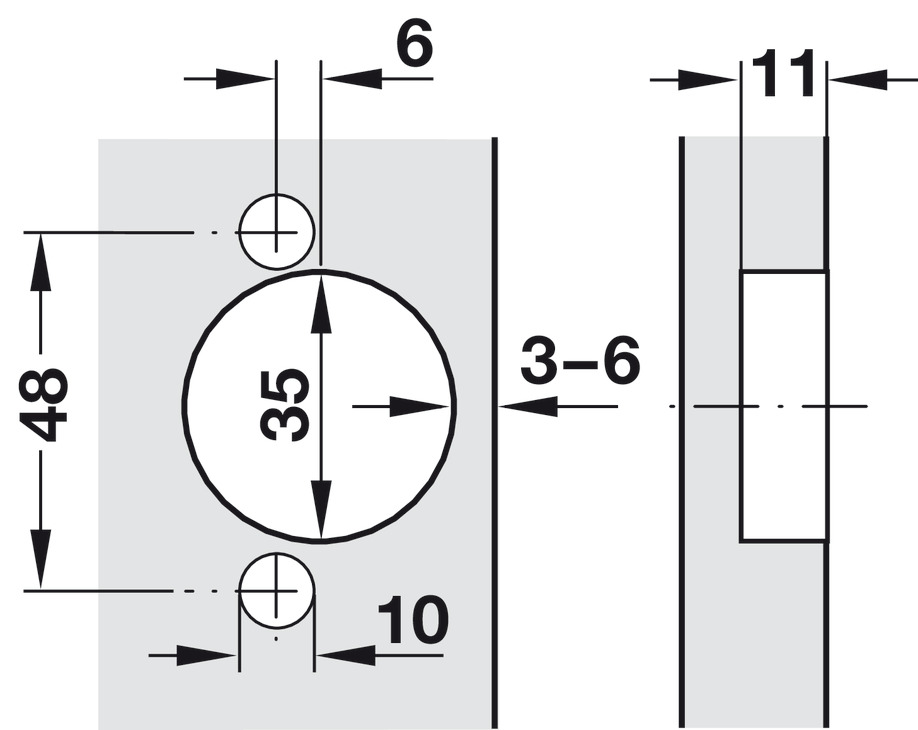

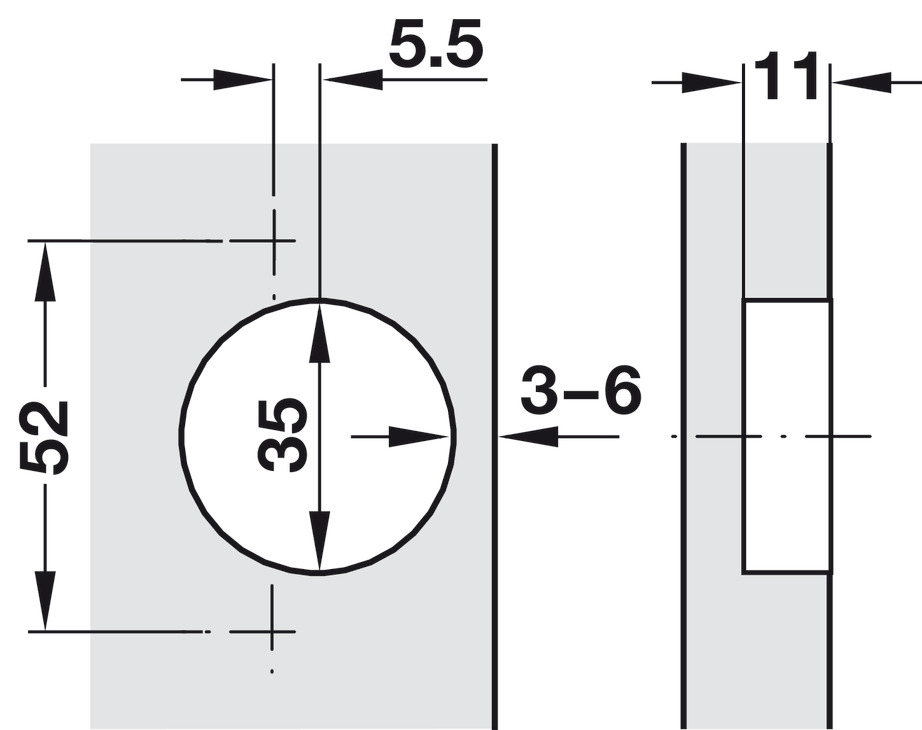

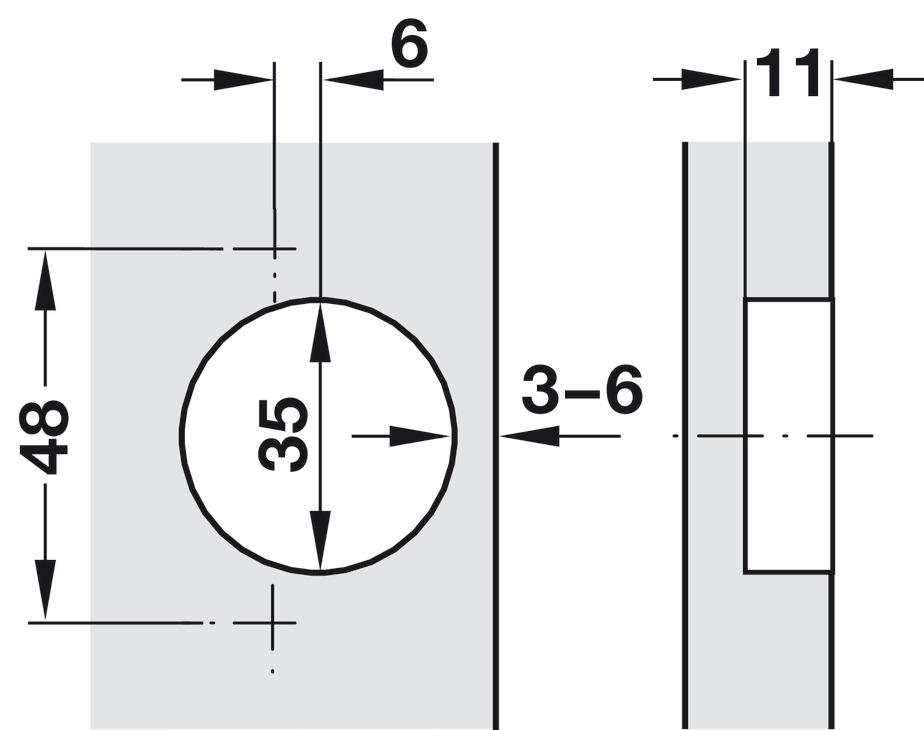

Cup drilling Ø: 35.00 mm
Cup fixing: for screw fixing
Door processing for assembly: with cup drilling
Finish: Nickel-plated
For door material: wood
For door thickness: (5/8" - 1") 16 to 26 mm

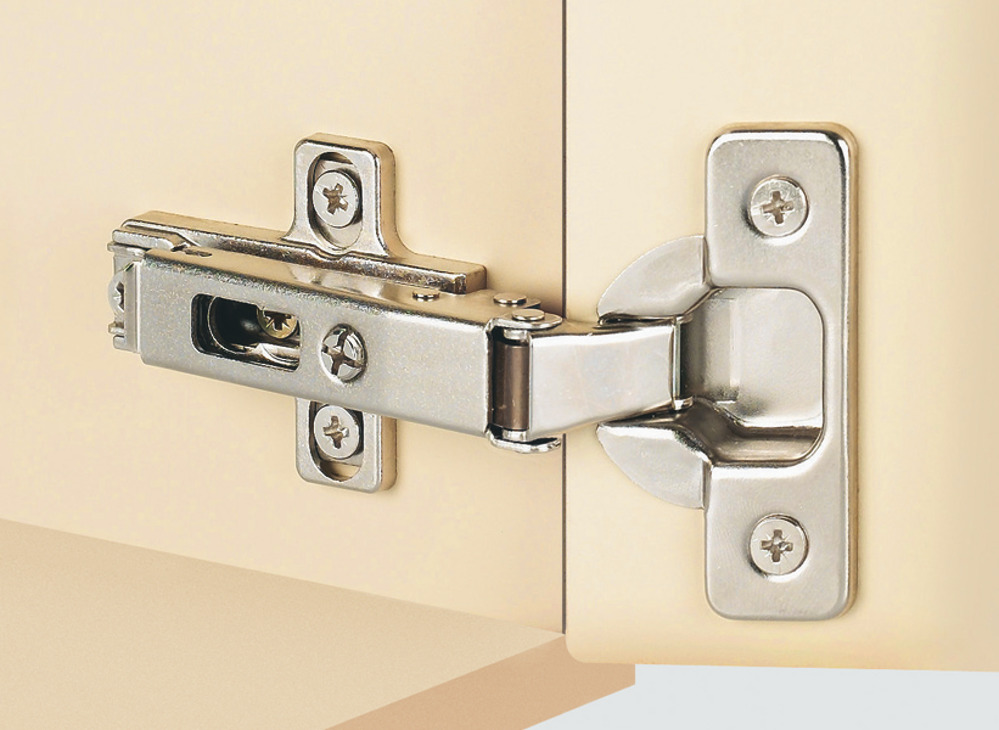

Installation: Door on cabinet with slide-on system A or quick fixing system SM
Material: Steel
Model: C2P8A99
Mounting: -

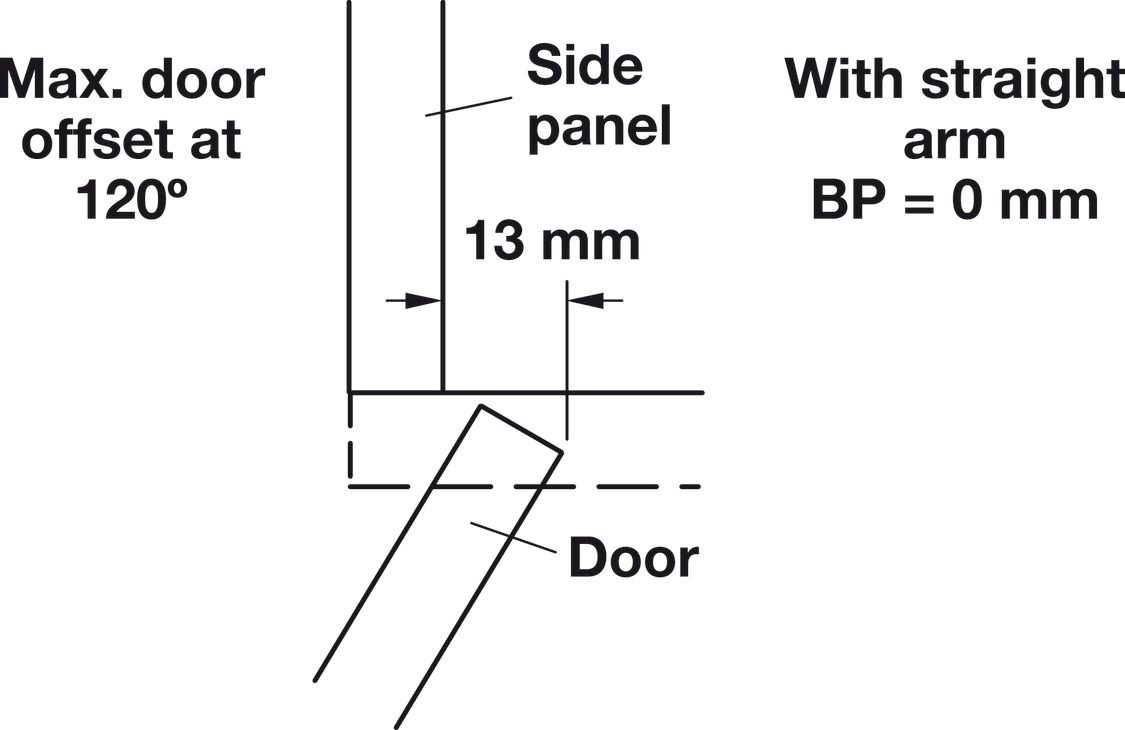

Opening angle: 120 °
Overlay: Full
Type of closing: Self close
Version: With automatic closing spring
