Adjustment facility: Side adjustment -0.5 – 5.5 mm, Height adjustment ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM quick fixing mounting plates from -0.5 to +2.8 mm
Area of application: For wood doors
Color/finish: nickel plated
Concealed hinge version: full overlay
Crank type: Straight

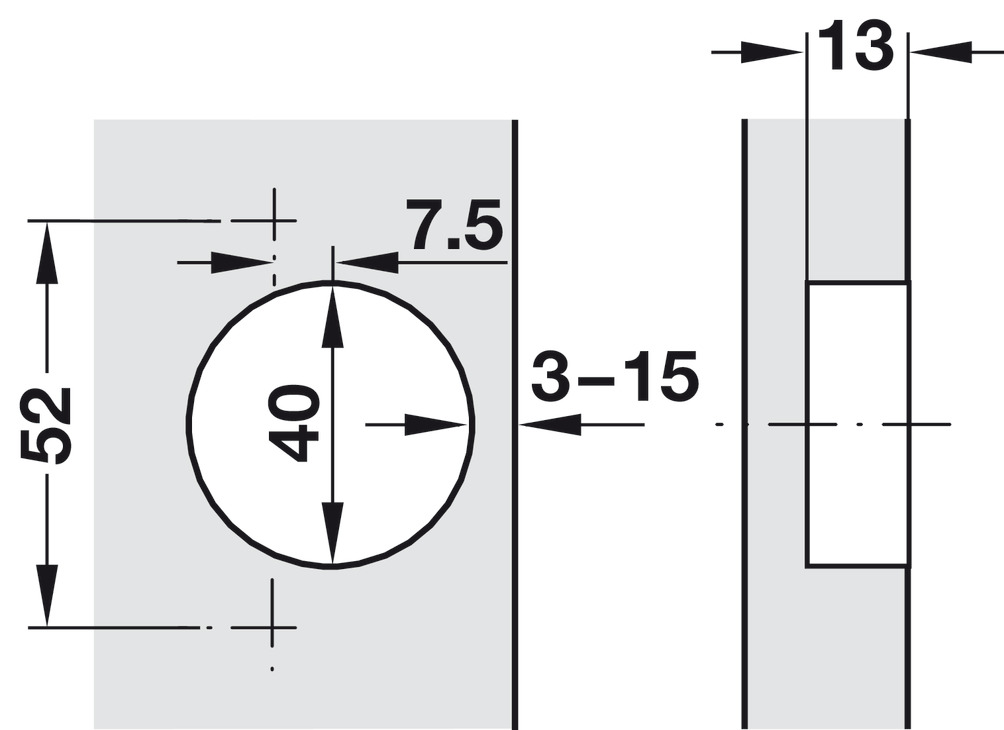

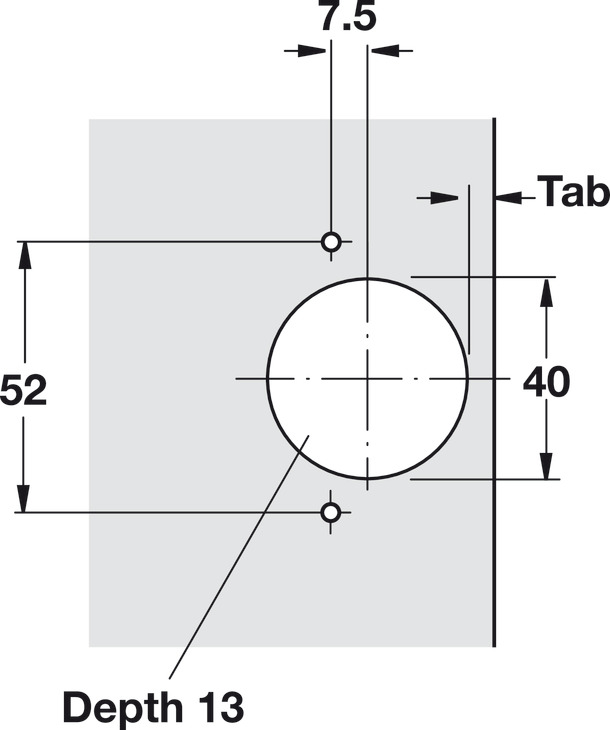

Cup drilling depth: 13.00 mm
Cup drilling Ø: 40.00 mm
Door processing for assembly: with cup drilling
Drilling pattern: 52/7.5
For door material: wood
For door thickness: Up to (1 9/16") 40 mm

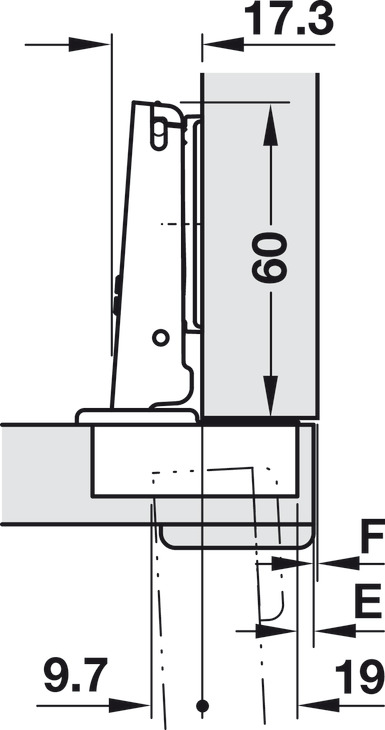

Installation: Door on cabinet with slide-on system A or quick fixing system SM
Material: Cup: Steel, Hinge arm: Zinc alloy
Model: CFA5A99
Mounting: Screw fixing
Opening angle: 94 °
Overlay: Full
Tab: 3 - 15 mm
Type of closing: Free-swinging
Version: Without spring
