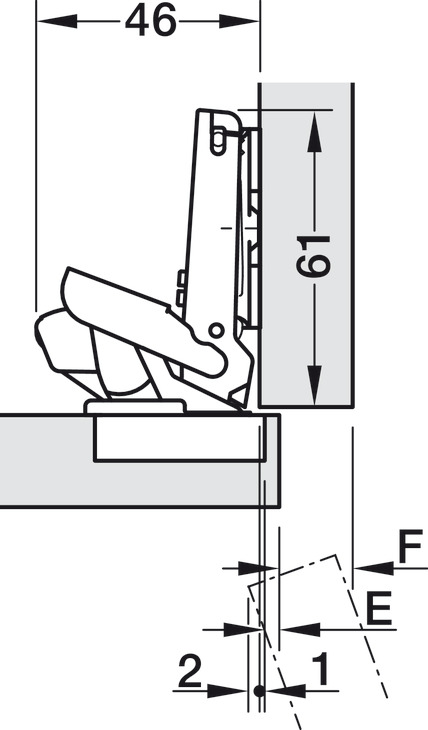

Adjustment: Side adjustment from –1.5 to +4.5 mm height adjustment from –2 to +2 mm depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from –0.5 to +2.8 mm
Adjustment facility: Side adjustment from –1.5 to +4.5 mm height adjustment from –2 to +2 mm depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from –0.5 to +2.8 mm
Area of application: For wood doors
Color/finish: nickel plated

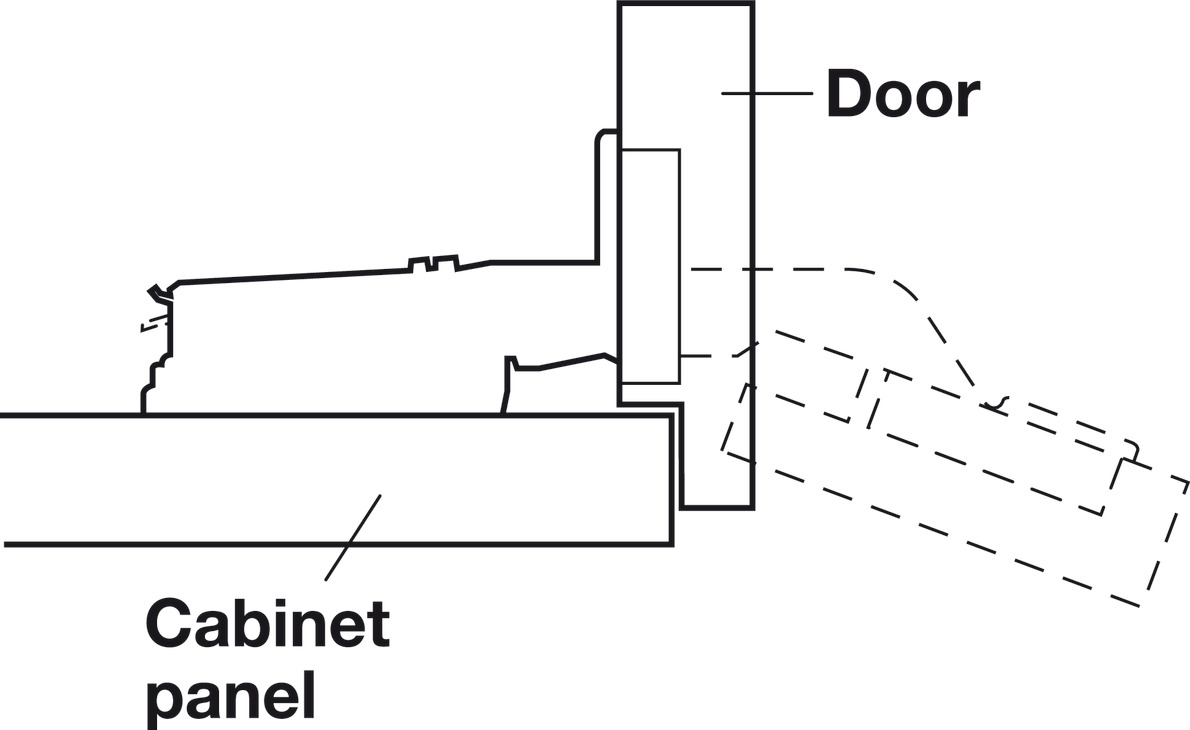

Concealed hinge version: full overlay
Cup drilling depth: 9.00 mm
Drilling depth: Hinge cup 9 mm

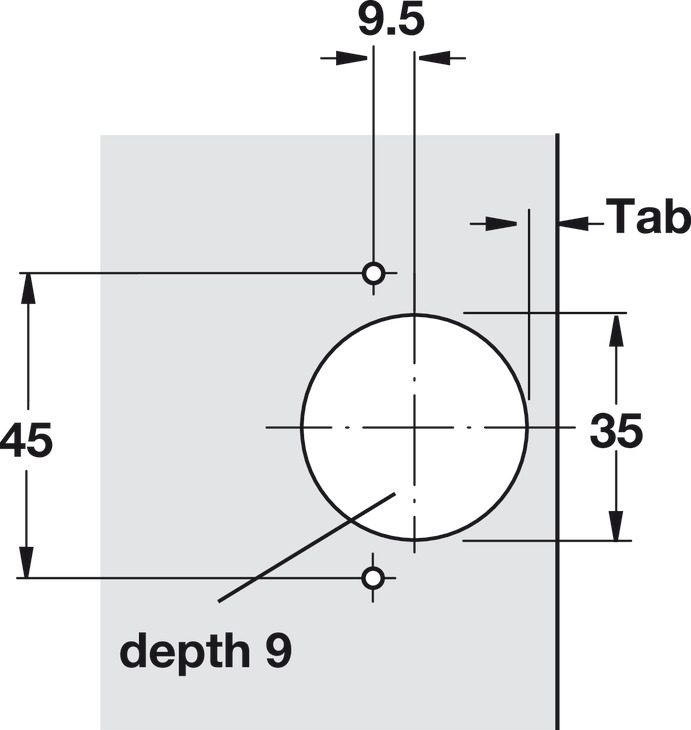

Drilling pattern: 45/9.5 mm
Finish: Nickel plated
For door material: wood, Profile doors

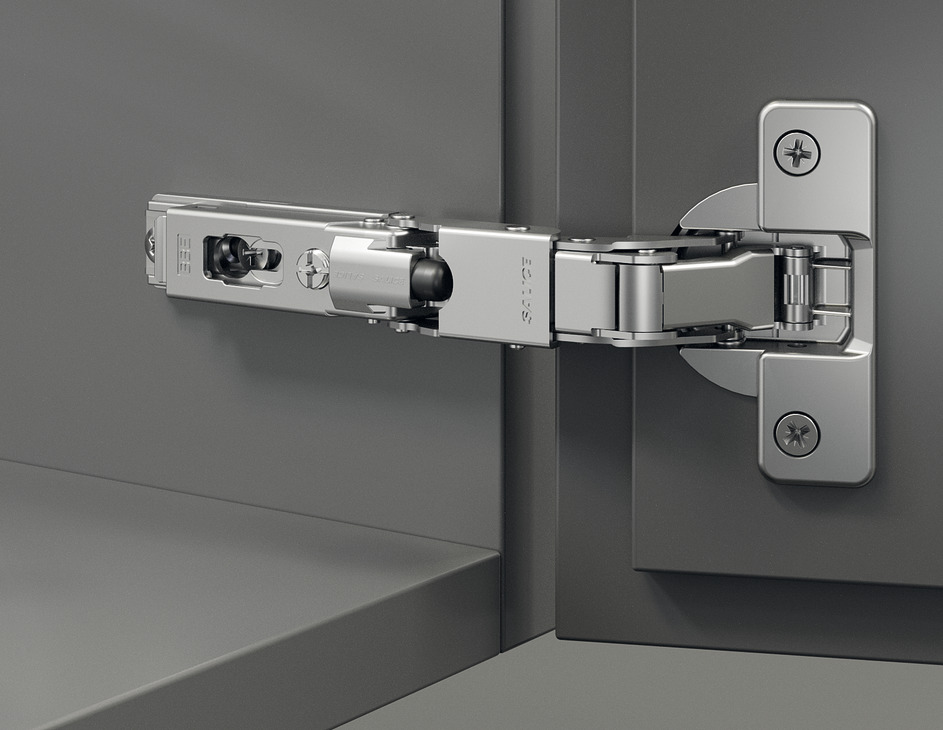

Installation: Door to cabinet with slide-on system using Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates

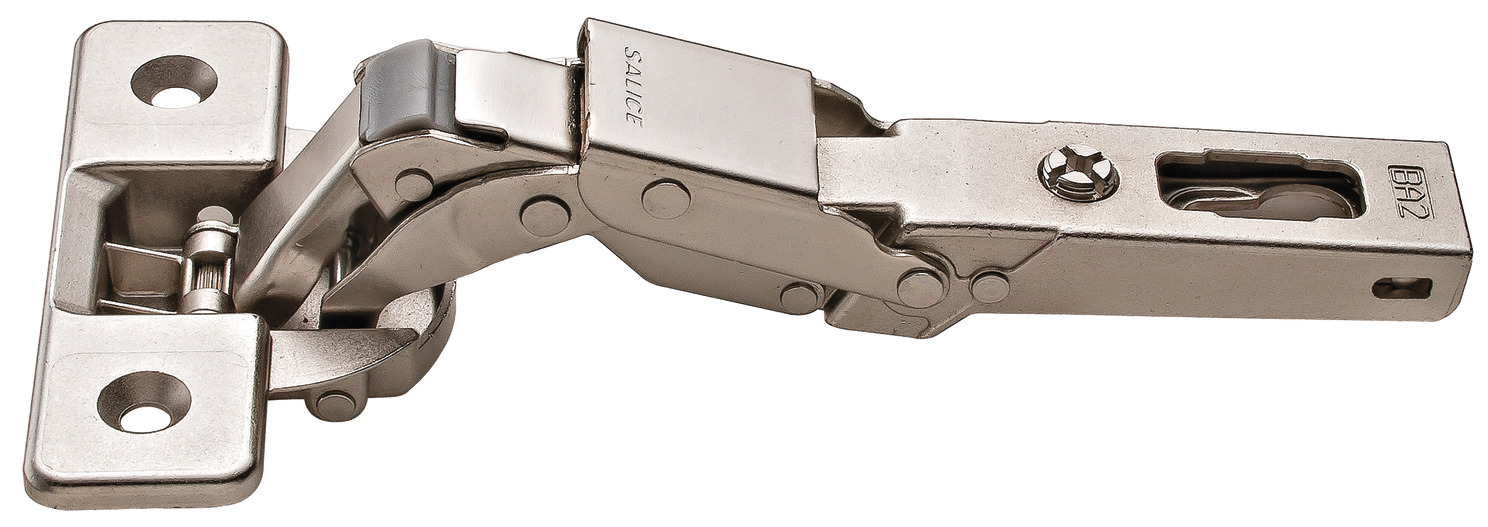

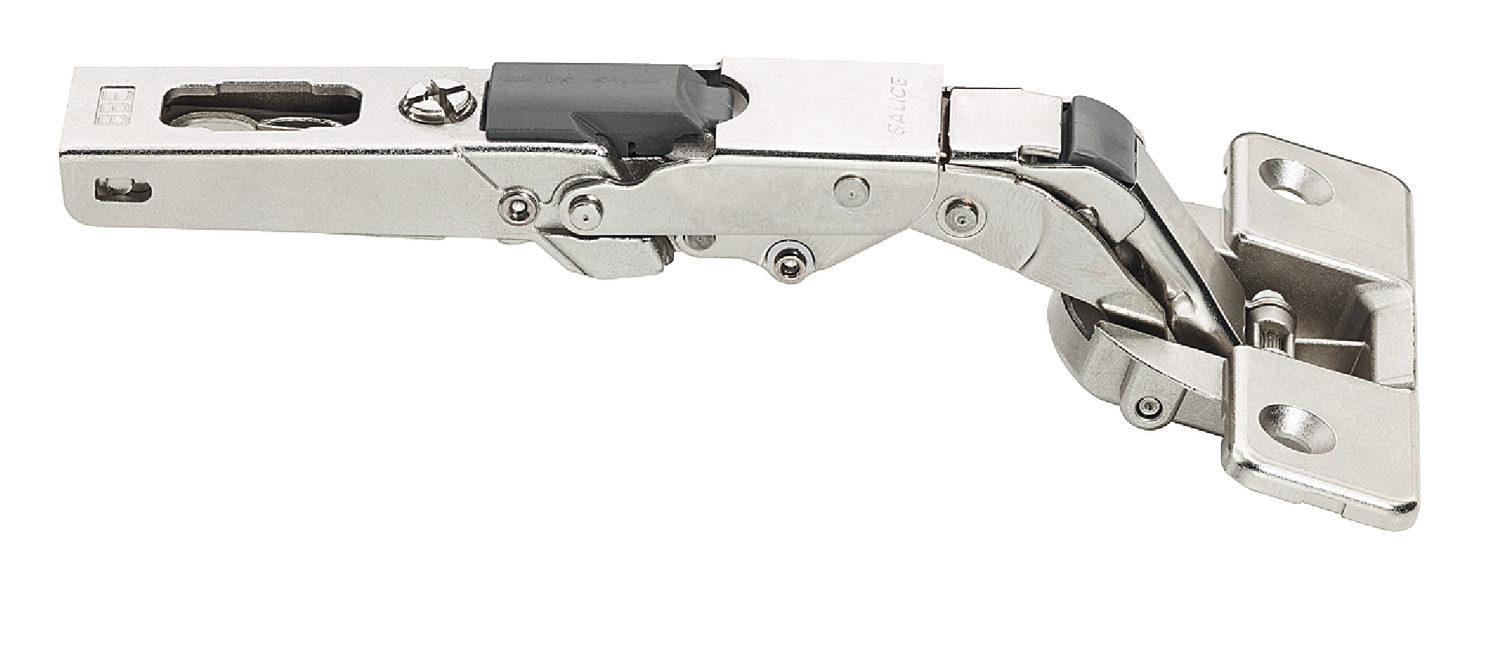

Material: Zinc alloy cup and hinge arm
Mounting: For screw fixing
Opening angle: 110°
Version: With automatic closing spring
