Ship via: Can Ship UPS
Area of application: For wood doors
Concealed hinge version: concealed
Door processing for assembly: with cup drilling

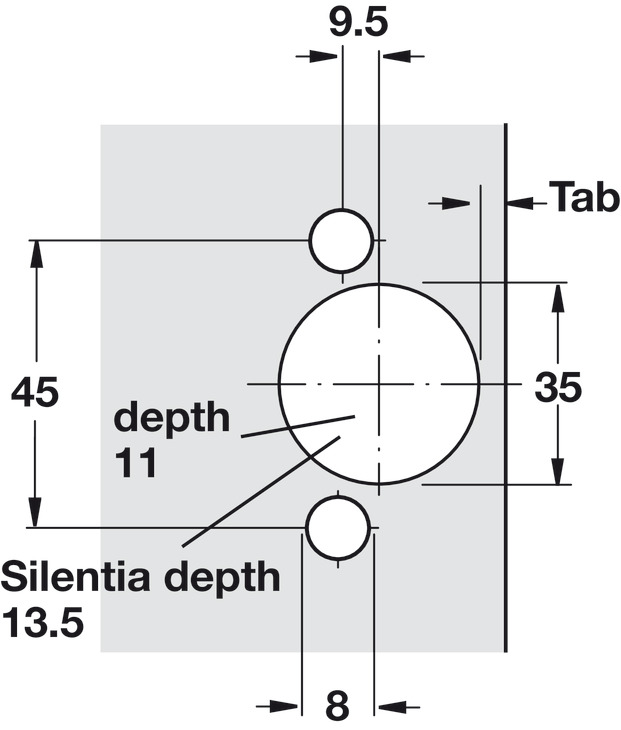

Drilling pattern: 45/9.5

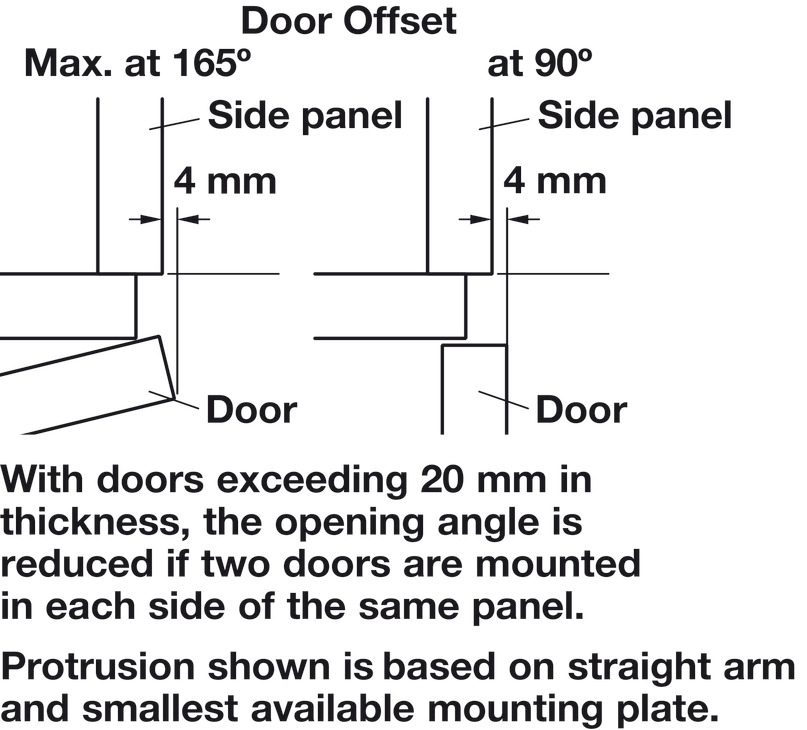

Features: Zero protrusion with 155° hinge and maximum 2 mm mounting plate
Finish: Nickel-plated
For door thickness: (3/8 - 1 1/8") 10 - 28 mm
Material: Steel
Model: C2RKGE9
Mounting: Press-fit
Opening angle: 155 °
Order reference: Mounting plates sold separately
Overlay: Half
Suitable for: Cabinets with pull-out shelves
Tab: 3 - 9 mm
Type of closing: Silentia + soft-close
