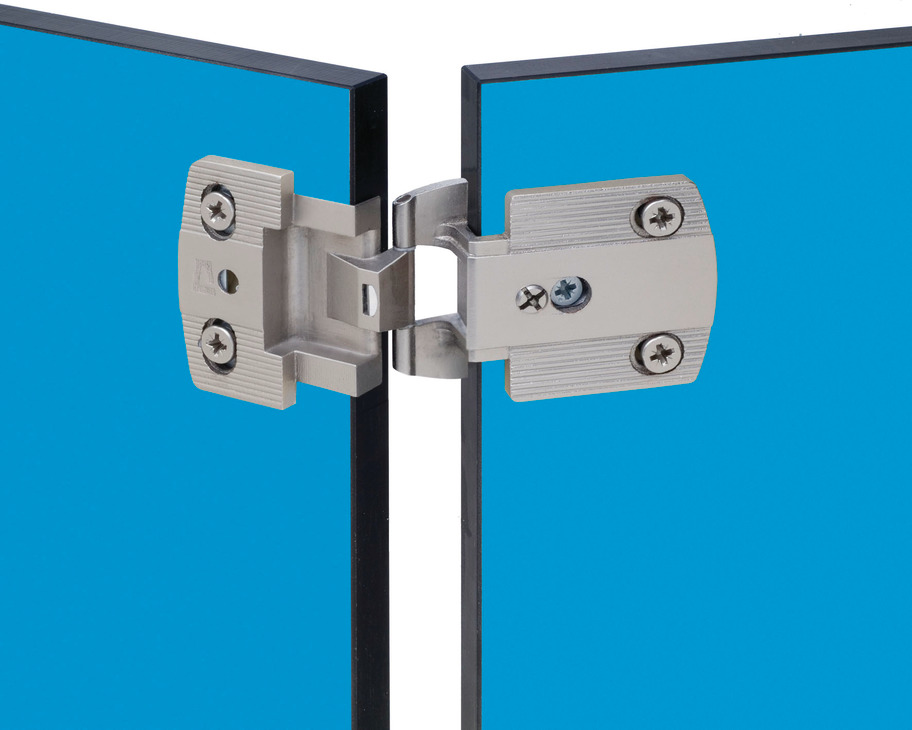

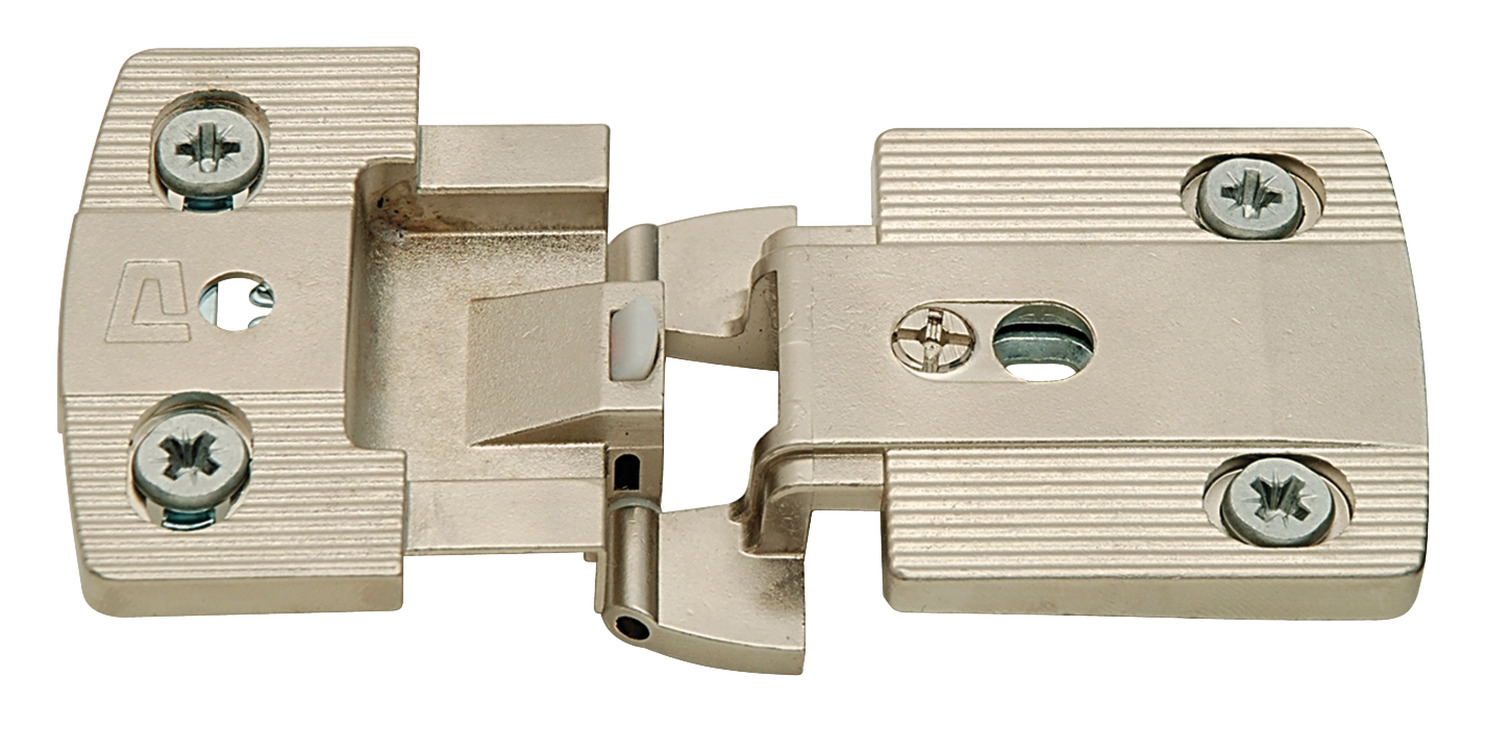

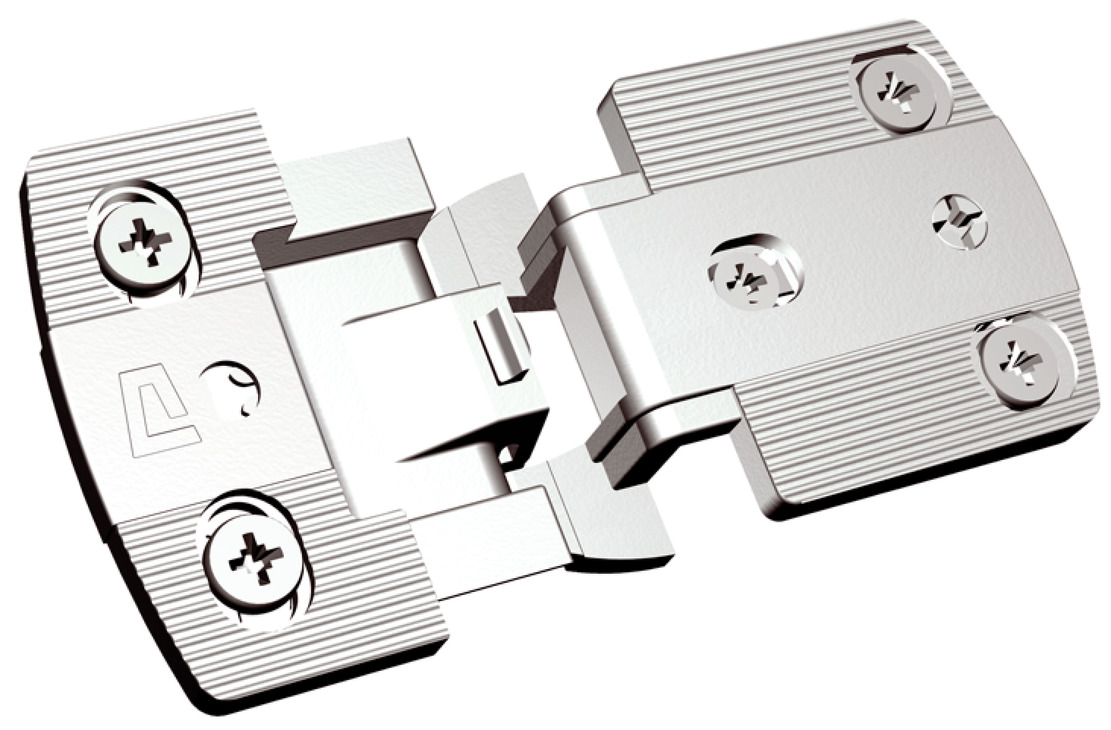

Hafele 344.75.770 Thin Panel Institutional Hinge

Images may not represent actual product and finish

Hafele 344.75.770 Thin Panel Institutional Hinge

Your Price: $17.9995

Retail Price:$22.56

Your Savings:$4.5605(20%)

Thin Panel Institutional Hinge, Aximat 300, Grade 1, Zinc Alloy, 1/2" overlay

Part Number

: HAF_34475770

Availability: 402 In stock

Quantity

Description

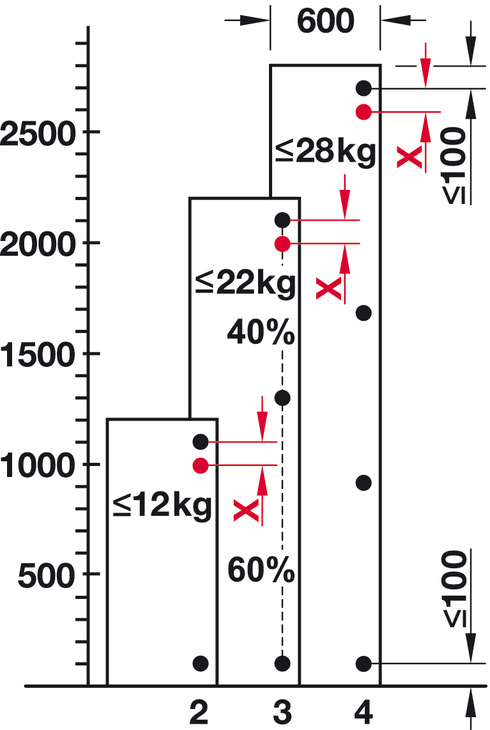

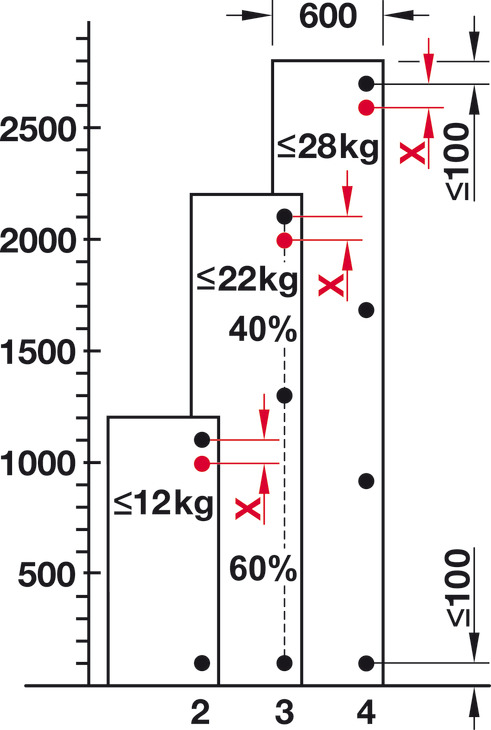

Hafele 344.75.770 Thin Panel Institutional Hinge

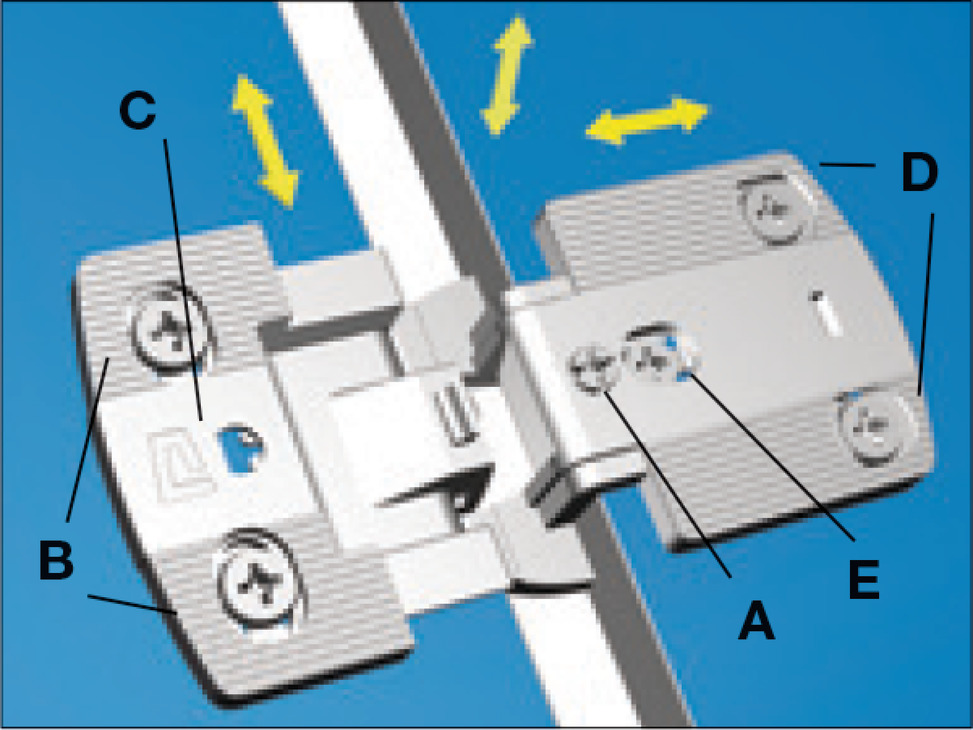

3D adjustment
Depth adjustment of ± 1mm is achieved with oblong holes
Door overlay (side to side) adjustment is on the arm component as opposed to the cup component: offering continuous adjustment of +1/-2 mm in both directions
During overlay (side to side) adjustment, the knuckle moves with the door preventing a gap between door’s edge and knuckle
Height adjustment (up and down) of a ±2mm is on the door component
Integrated catch keeps doors closed, no additional magnetic catches required
Sleep sophisticated design, only 5 mm (3/16") of knuckle is visible
Specifically designed for thin panels such Phenolic material
Tested in accordance with ANSI/BHMA Grade 1 standards

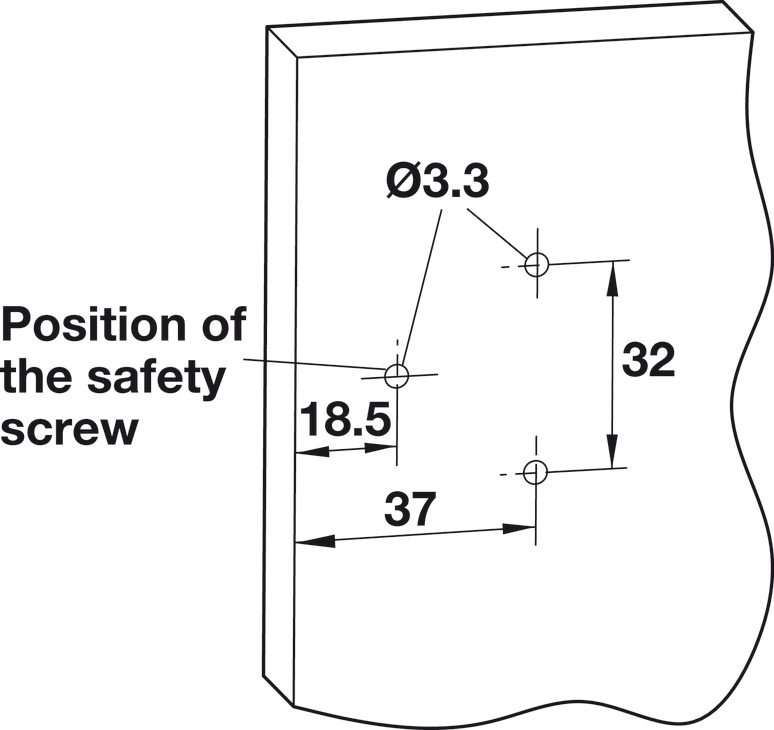

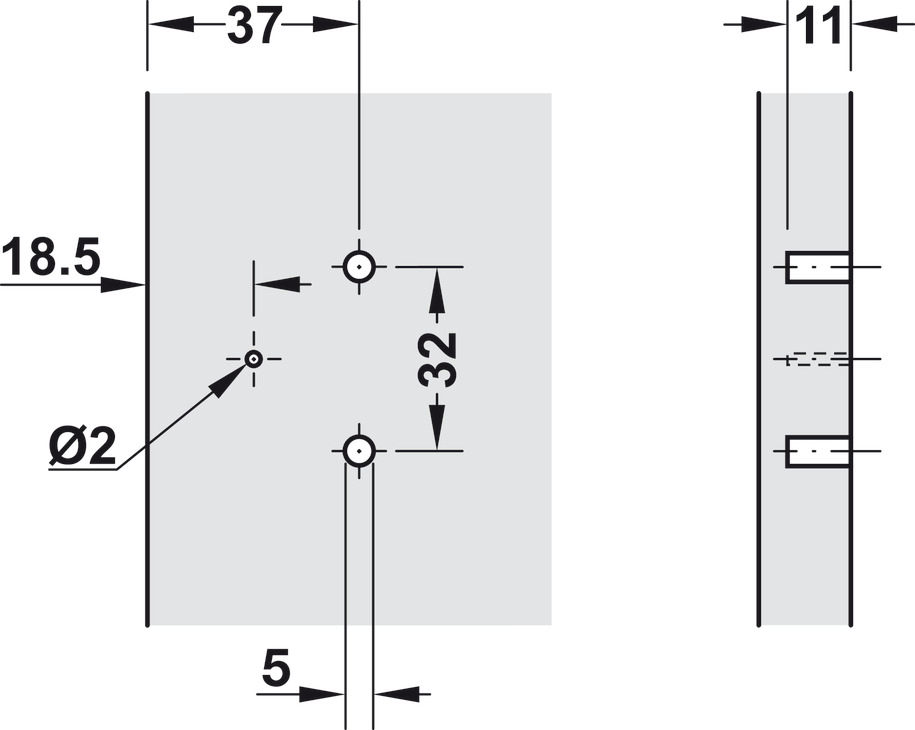

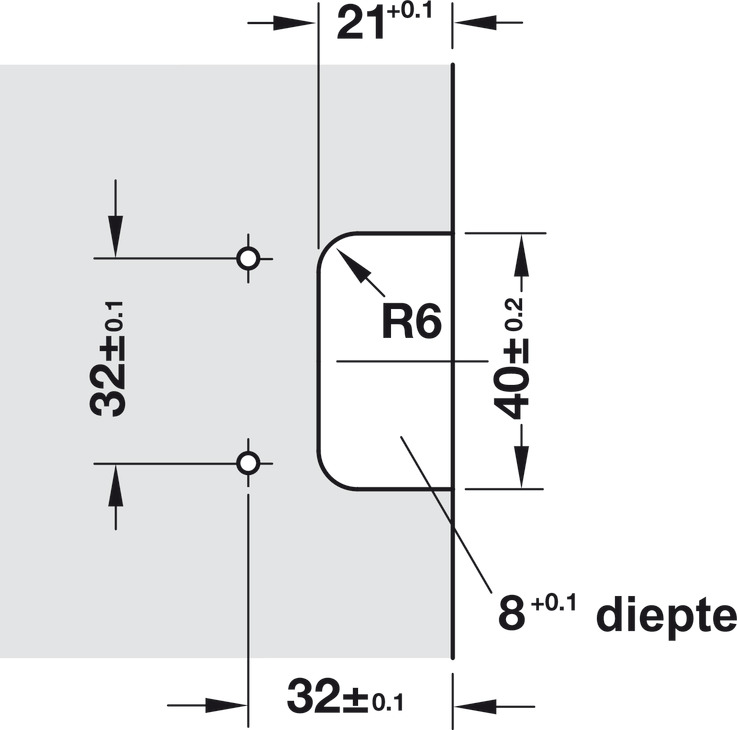

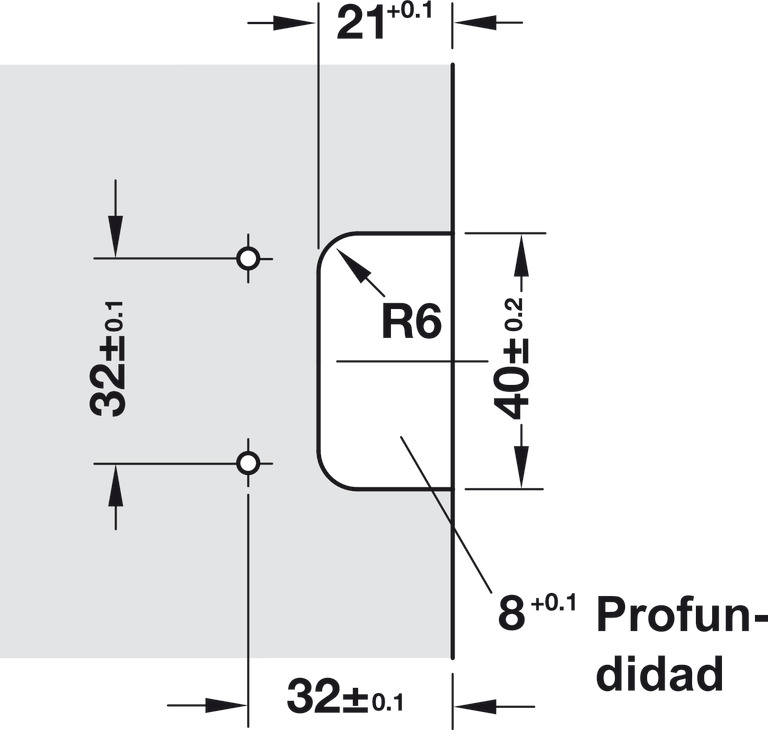

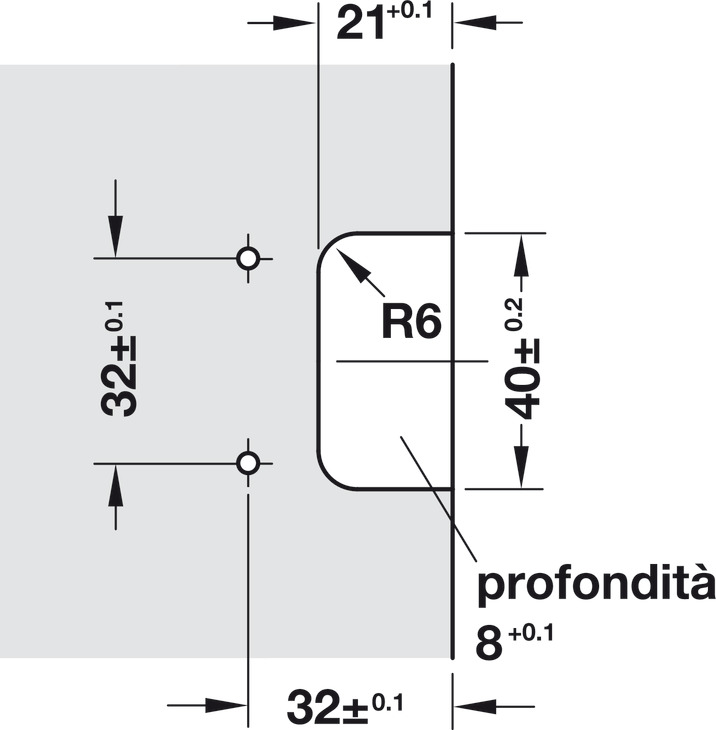

The "Safety Screw" can be pre-installed at any time as it does not effect the adjustments, however, it is required.
When inserting screws into Phenolic material, they may corrode because of the material’s internal properties. Screw holes should be slightly tapered in Phenolic material to assure a tight fit.
maximum project quality in accordance with ANSI grade 1 (100,000 cycles)

Attributes

Ship via: Can Ship UPS

Adjustment facility: Side adjustment: 1 mm, Height adjustment: -2 – 2 mm, Height adjustment in cup part via eccentric Depth adjustment via horizontal slots in side component

Area of application: For thin doors for laminate panels (HPL)

Concealed hinge version: Full overlay/half overlay mounting

Door processing for assembly: without

Finish: Nickel plated

For door material: laminate

For door thickness: ≥ 10 – ≤ 13 mm

Knuckle diameter: 5.00 mm

Knuckle length: 47.00 mm

Material: Zinc alloy

Mounting: Screw-mounted

Note: When inserting screws into Phenolic material, they may corrode because of the material’s internal properties. Screw holes should be slightly tapered in Phenolic material to assure a tight fit.

Opening angle: 270 °

Overlay: 7 + knuckle 6 = 13 (1/2")

Side panel thickness: 10 – 13 mm

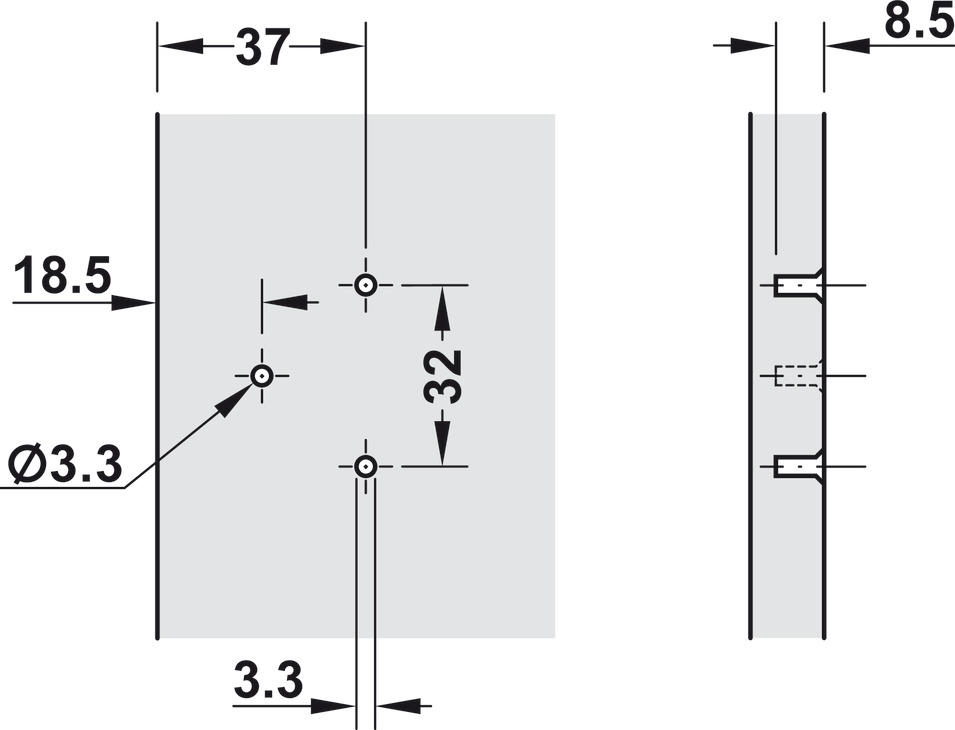

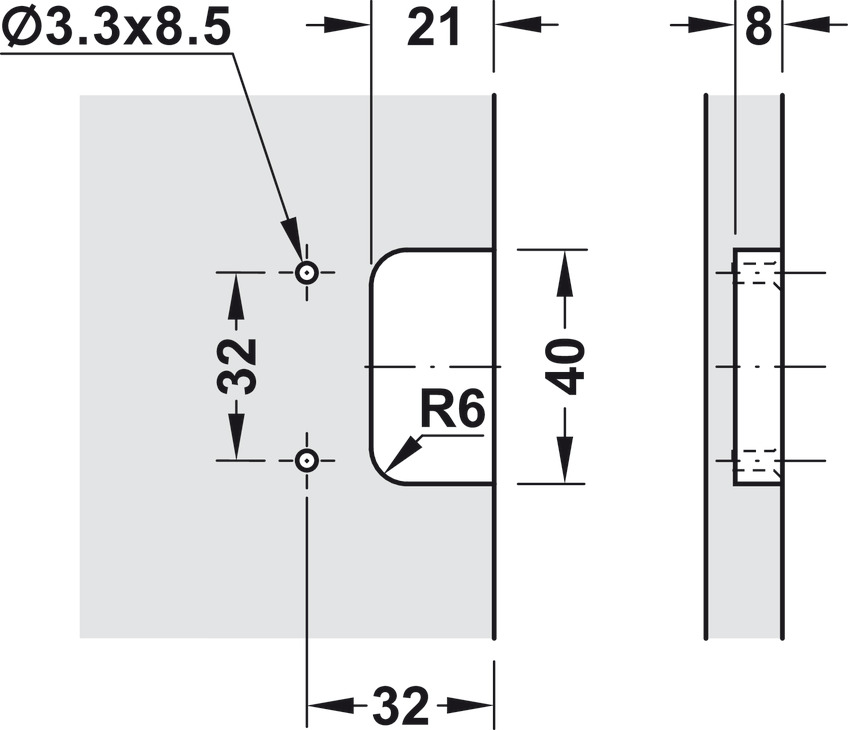

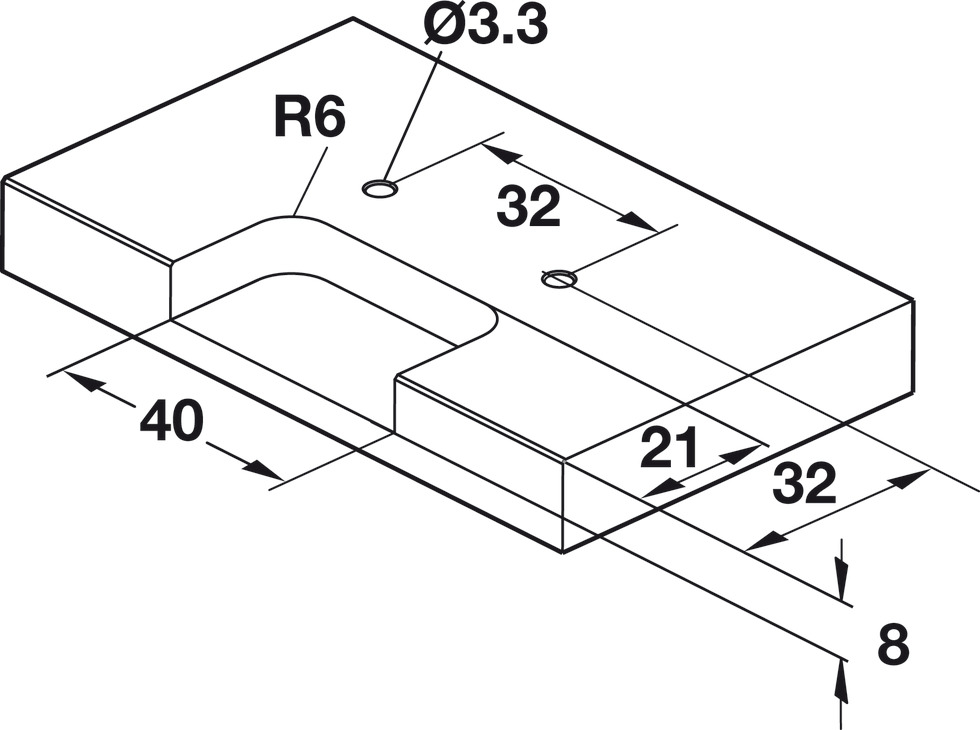

Supplied with: Hinge Fixing material (specially coated self-tapping screws) 1 twist drill bit ⌀ 3.3 mm per packing unit of 50 items

Version: Door overlay: 7.0 mmFull overlay mounting: Side panel thickness 13 mmHalf overlay mounting: Side panel thickness 19 mm
