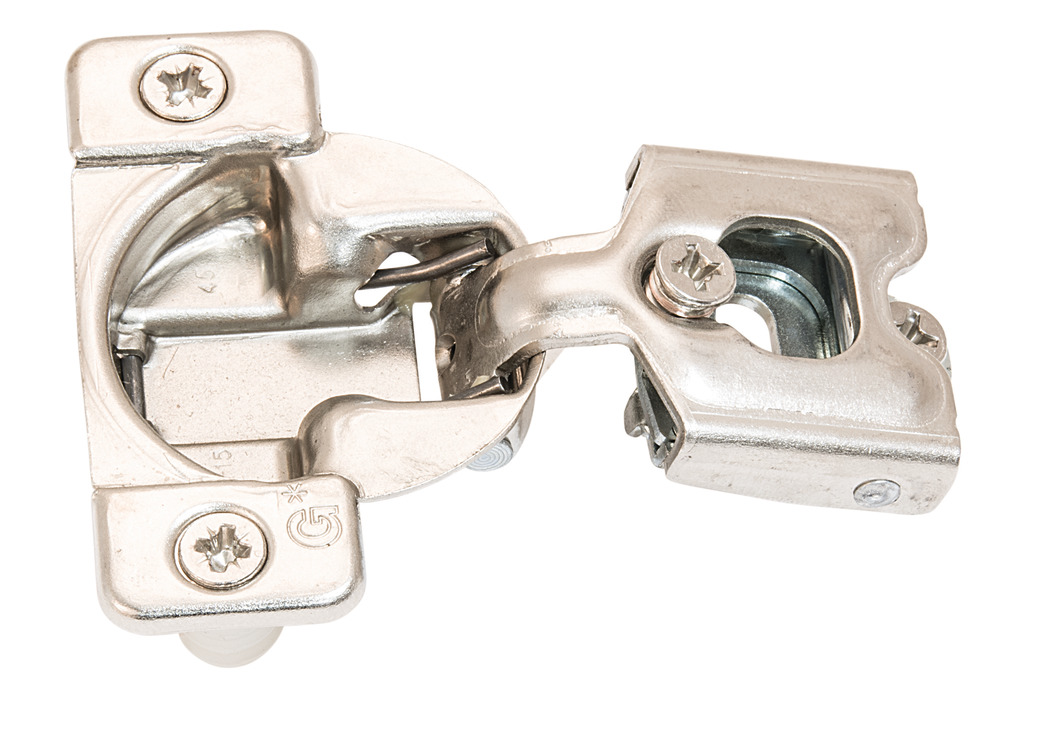

Hafele 348.90.120 Grass TEC Concealed Face Frame Hinge

Your Price: $3.0929
Retail Price:$3.88
Your Savings:$0.7871(20%)

Hafele 348.90.120

Grass TEC Concealed Face Frame Hinge, Side-Mount, 108 Opening Angle, Self-Close, 1 1/4" overlay
Part Number

:
HAF_34890120
Hafele 348.90.120 Grass TEC Concealed Face Frame Hinge

  • 3-dimensional adjustment
  • Cam side and depth adjustment
  • Made in USA
  • One-piece hinge and base plate
  • Overly 1/4"

Attributes

Ship via: Can Ship UPS

Adjustment: Side Adjustment Cam +/- 1/16" (1.5mm) Height Adjustment: +/- 3/32 (2mm) Depth Adjustment Cam +3/32" (2.5mm) - 1/32" (.5mm)

Clearance: Door: (7/16") 11; Arm: (9/16") 14.5 mm

Drilling Pattern: 45/9.5

Drilling depth: Cup drilling depth: (7/16") 10.7 mm

Finish: Nickel

Material: Steel

Model: 04386-15

Model series: Grass TEC

Mounting: Screw-on

Opening angle: 108 °
