Ship via: Can Ship UPS

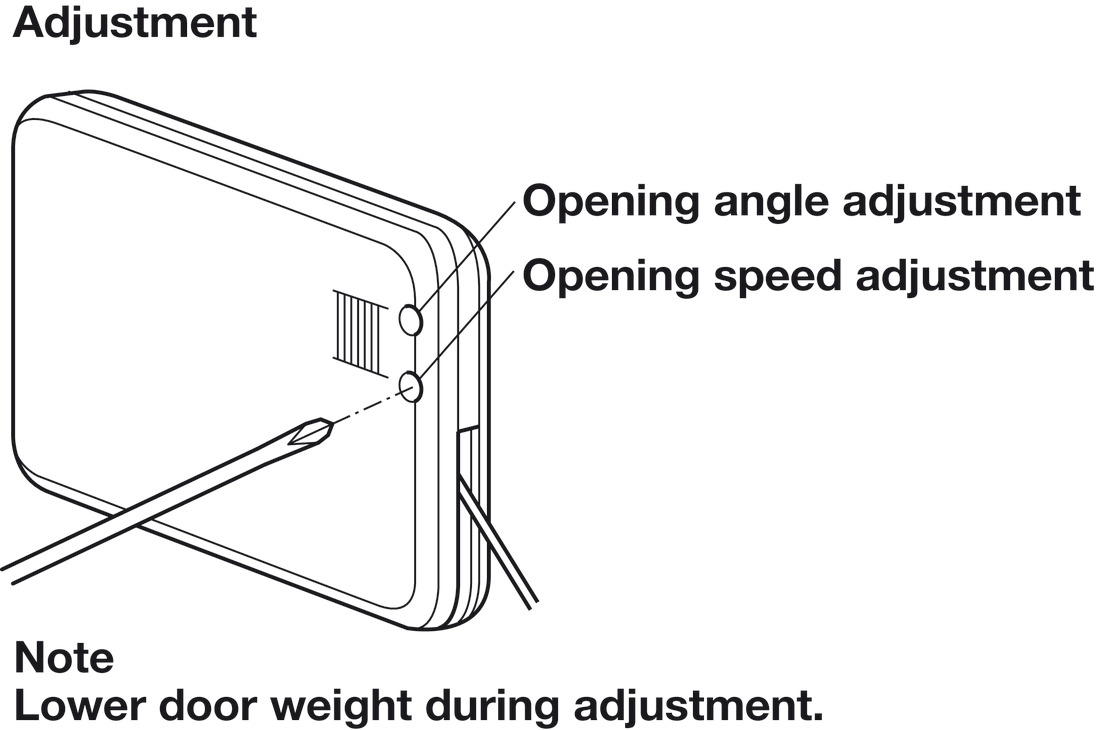

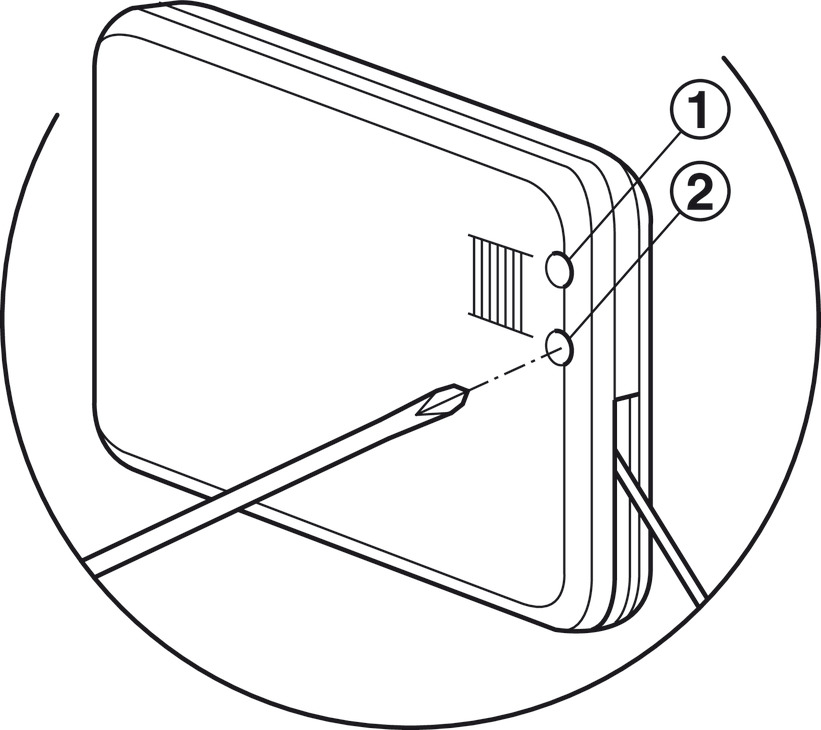

Adjustment: Opening and closing force, opening angle
Adjustment facility: Opening and closing force, opening angle With adjustable braking effect
Area of application: for wooden flaps
Color: Black
Color/finish: Fitting: Grey, front fixing bracket: Nickel plated
Cover color: Cover cap: Black
Dimensions: Housing 89 x 23 x 163 mm (W x H x L) with horizontal use
Flap weight: max. (26.4 lbs) 12 kg
For cabinet depth: 110 mm
For flap height: (7 7/8 - 18 7/8") 200–480 mm
For lid height: 200 – 480 mm
For lid weight: ≤12 kg

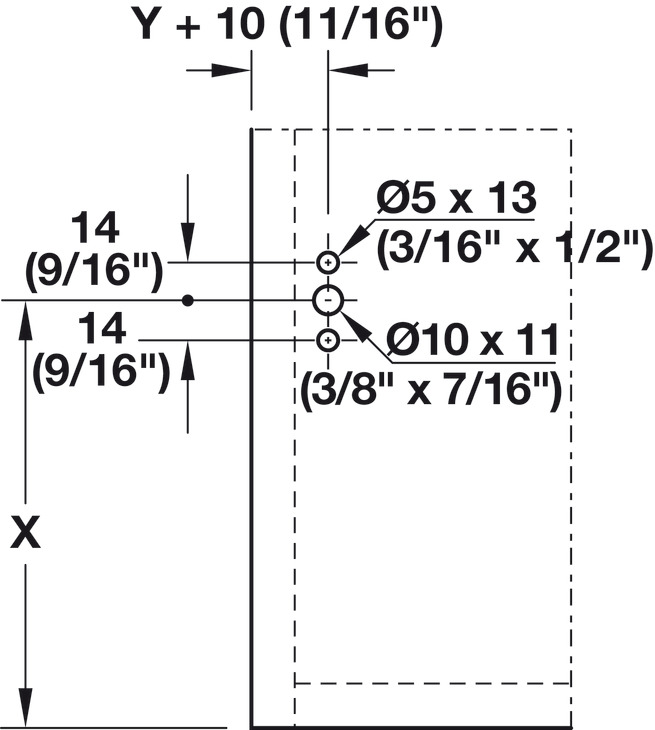

Installation: For screw fixing with Euro screws

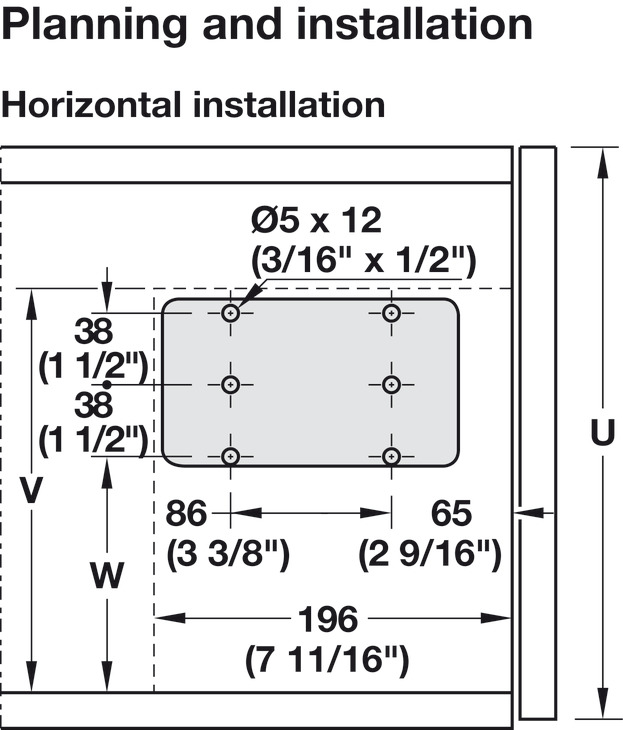

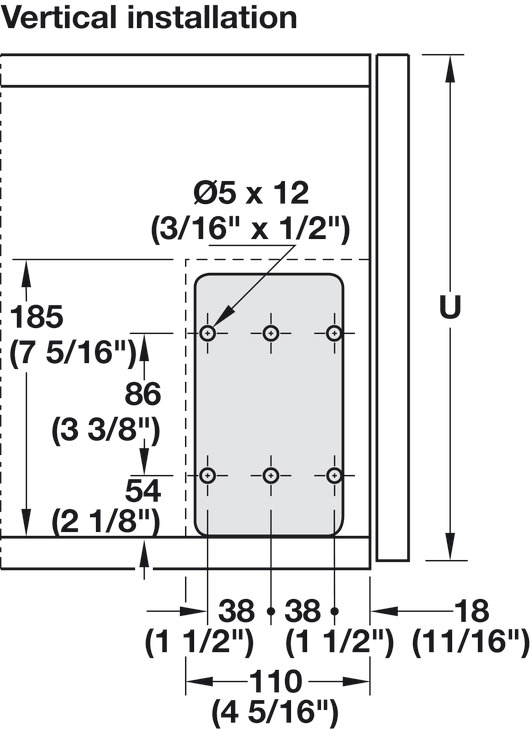

Internal cabinet depth: min. (7 11/16") 196 mm (horizontally), min. (4 5/16") 110 mm (vertically)
Lid material: Wood
Material: Fitting and cover caps: Plastic, front fixing bracket: Zinc alloy
Model: A
Size: Housing: W x L x D: 89 x 23 x 163 mm (3 1/2 x 15/16 x 6 7/16") when installed horizontally
Suitable for: For wooden doors, with adjustable breaking effect and soft open and solft closing mechanism Left or right hand use
Supplied with: Front fixing bracket Cover cap Mounting material
Version: With soft and self closing mechanism With pull cable
