Ship via: Can Ship UPS

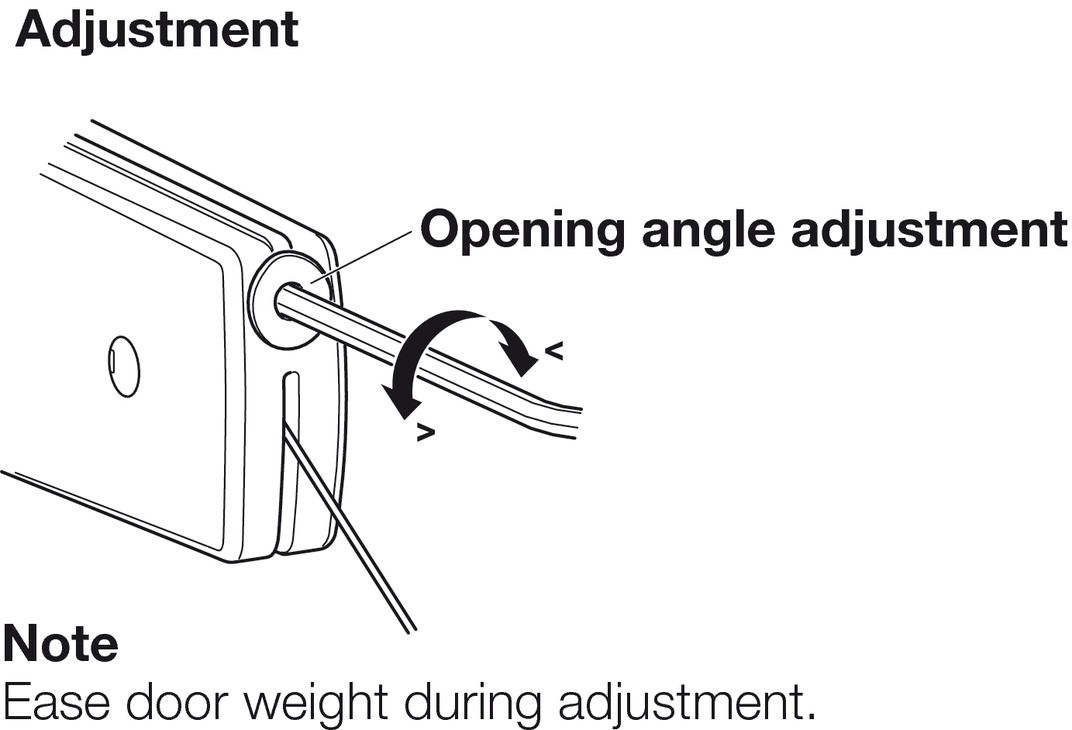

Adjustment: Opening angle

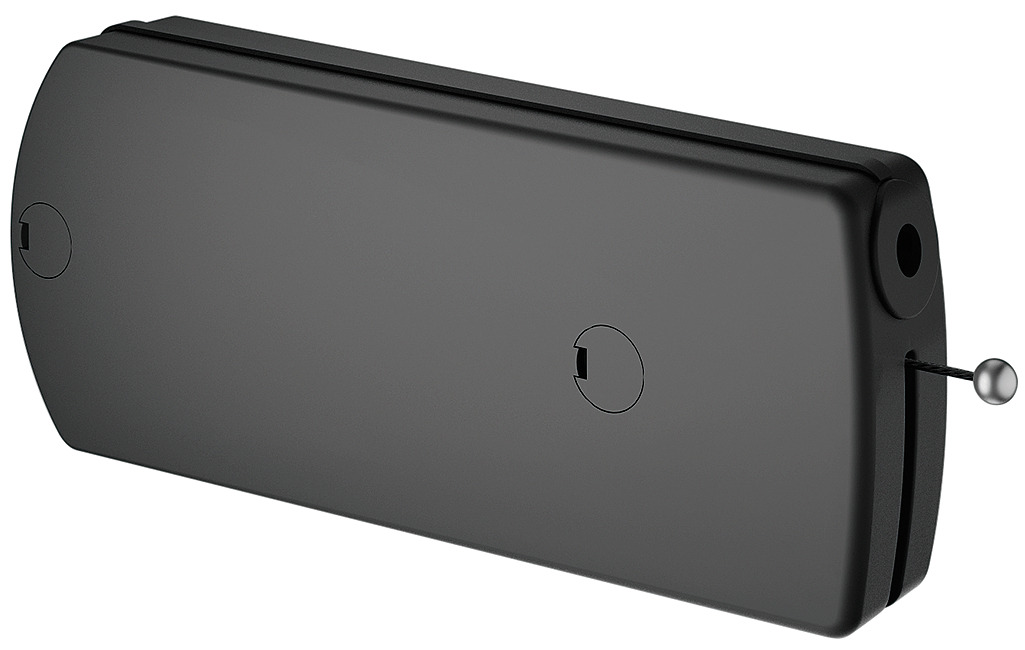

Color: Black

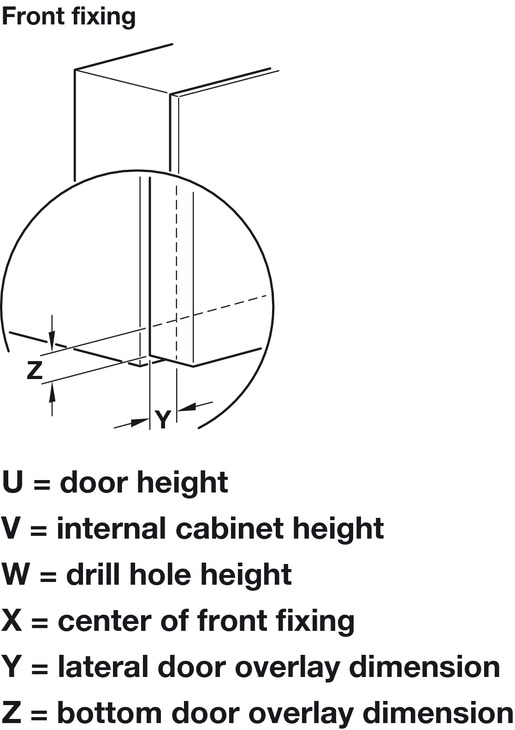

Finish: Front fixing: Nickel plated
Flap weight: max. (19.8 lbs) 9 kg
For flap height: (8 1/4 - 18 7/8") 210–480 mm

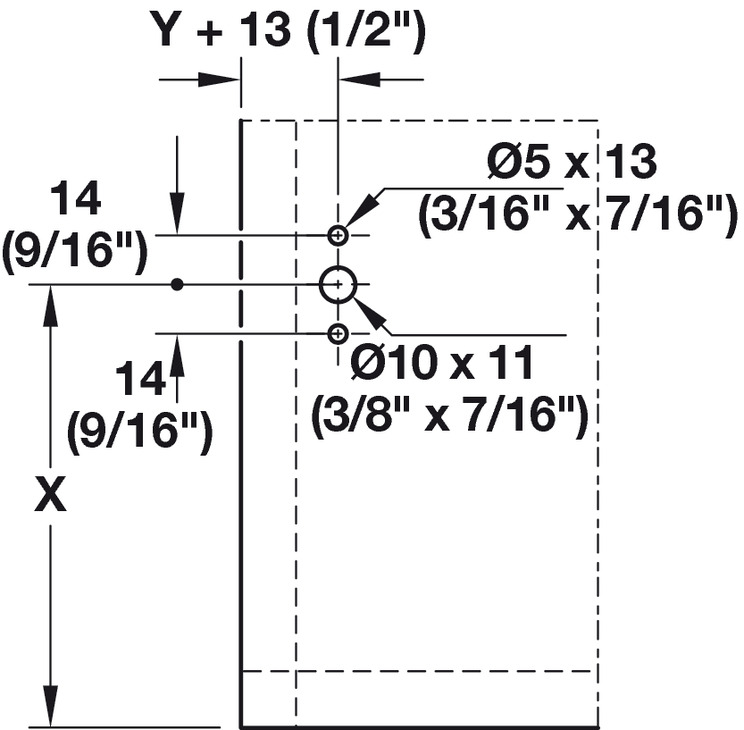

Installation: For screw fixing with Euro screws

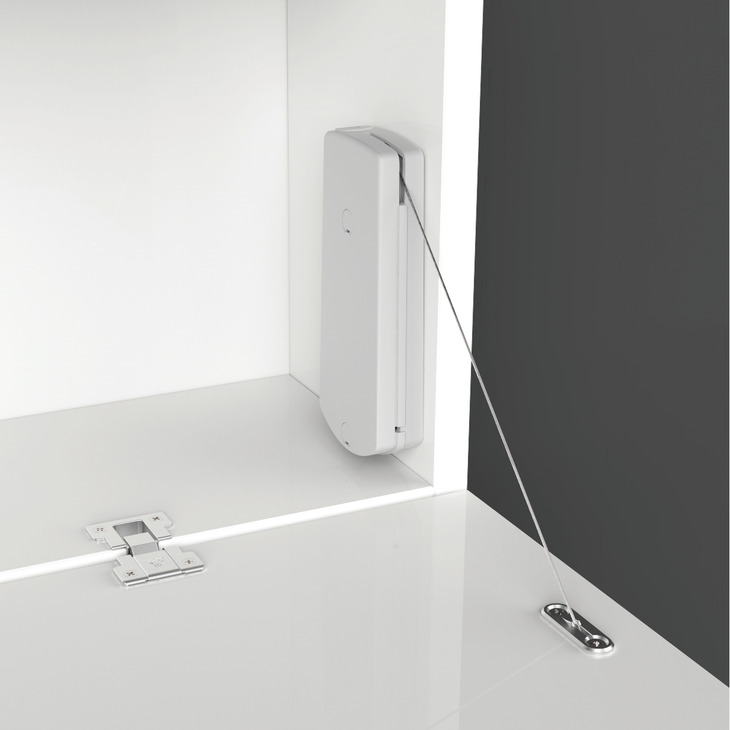

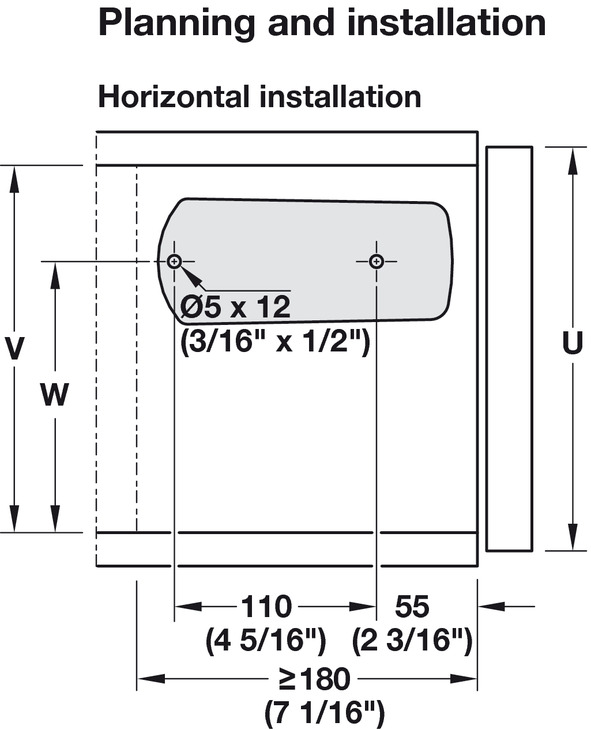

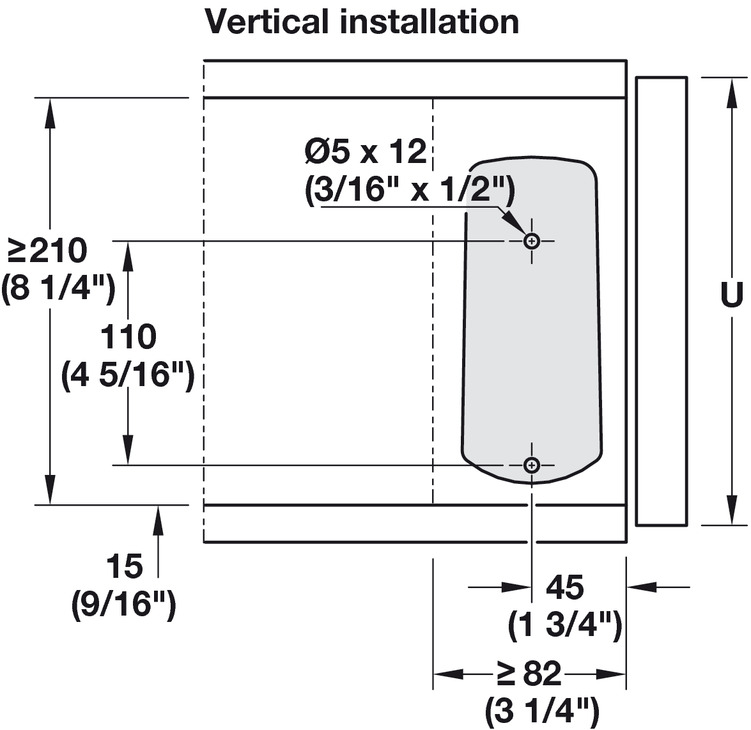

Internal cabinet depth: min. (7 1/16") 180 mm (horizontal), min. (3 1/4") 82 mm (vertical)
Material: Fitting and cover caps: Plastic, front fixing bracket: Zinc alloy
Model: A
Size: Housing: W x L x D: 26 x 68 x 160 mm (1 1/16 x 2 11/16 x 6 5/16") when installed horizontally

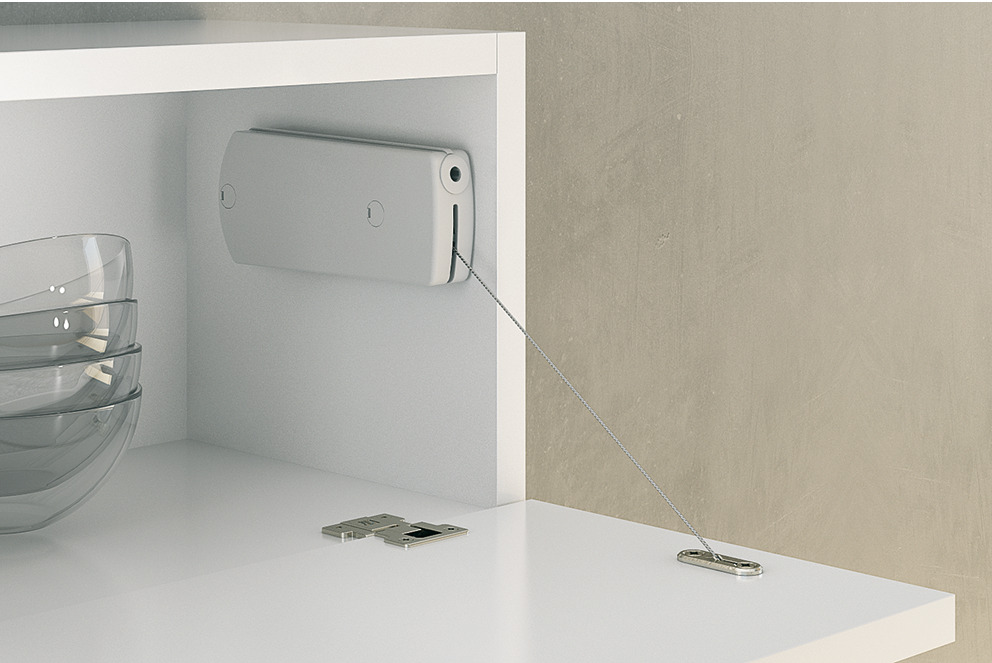

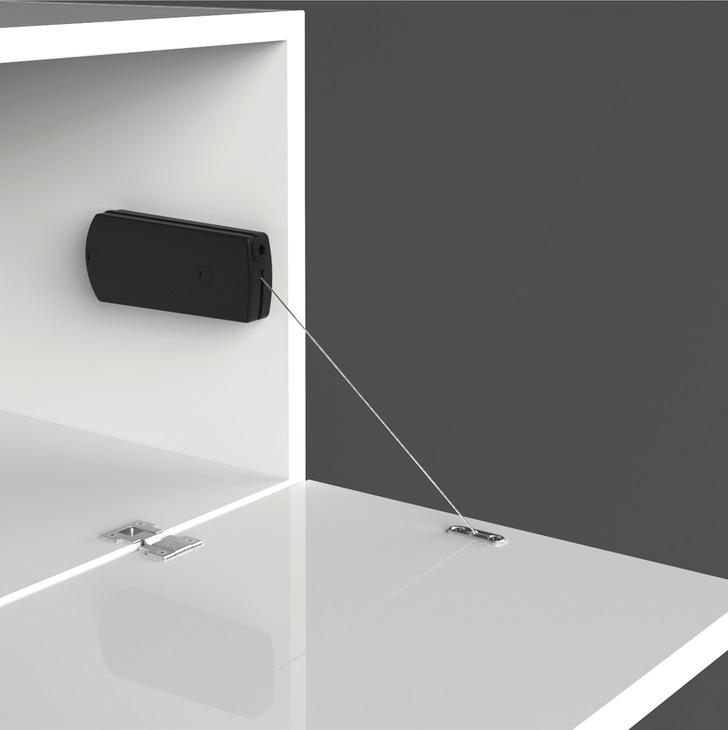

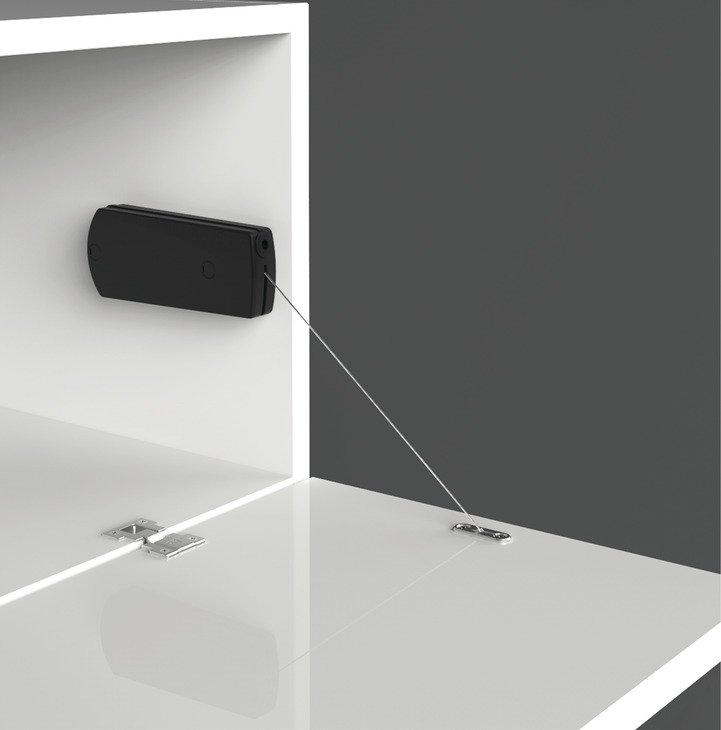

Suitable for: For wooden flaps, with adjustable opening angle and soft open and self closing mechanism
