Ship via: Can Ship UPS
A: (8 1/4") 211 mm
Adjustment facility: With adjustable braking effect Braking effect adjusting facility Braking effect adjusted using the screw when you unscrew it, the braking effect becomes stronger weaker when it is screwed in
B: (3 9/16") 90 mm
C: Determine by trial mounting
Color/finish: Nickel plated

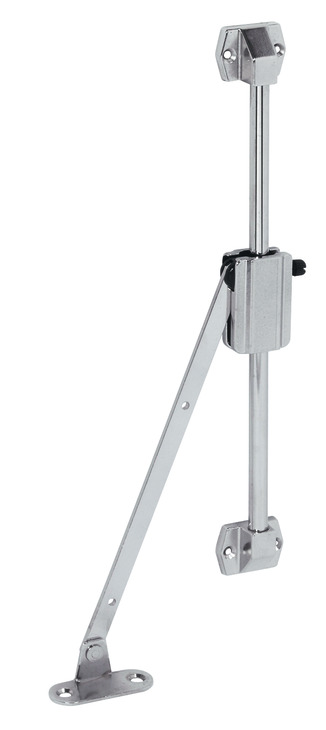

Features: With angular bracket with perforated flat arm for clamp
Finish/color: Nickel plated
For cabinet height: ≥332 mm
For inside cabinet height: Min. (13") 332 mm
For internal cabinet height: Min. 13"
Installation: For screw mounting
Installation reference: Dim. C Determine dim. C by trial mounting
Material: Flat arm and mounting bracket: Steel housing: Zinc alloy
Mounting: Left
Note: The guide arm must be kept clean of oil, grease and cleaning agents.
Version: With adjustable braking effect
