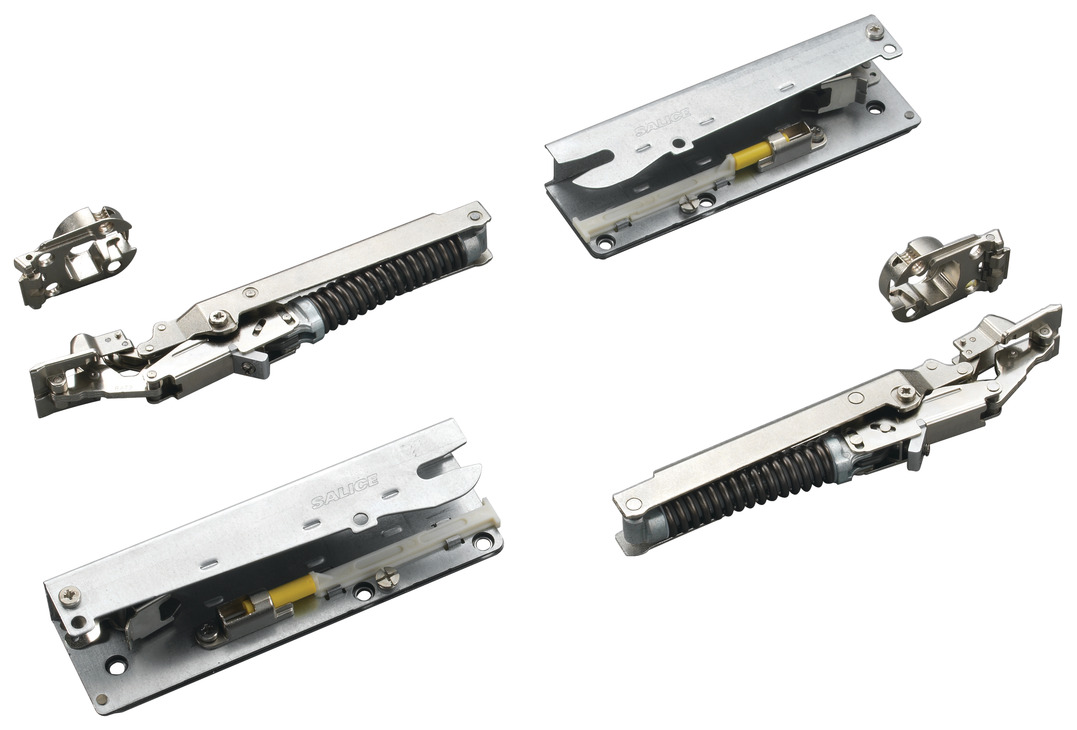

• 5 Independent adjustments all made with a pozi screwdriver: - Height - Side - Depth - Spring Tension - Soft Close
• 94d opening without restrictor clip
• Minimum Reveal Table T= 16 17 18 19 20 21 22 23 24 25 26 27 28 K=3 A= 0 0.1 0.1 0.2 0.2 0.3 0.5 0.6 0.7 0.9 1.1 1.8 2.7 K=4 A= 0 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 0.9 1.1 1.3 2.1 K=5 A= 0 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 0.9 1.1 1.3 1.5 K=6 A= 0 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 0.9 1.0 1.2 1.5 K=7 A= 0 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 0.8 1.0 1.2 1.4
• Overlay Table K = D1 3 = 16 4 = 17 5 = 18 6 = 19 7 = 20 K = Drilling distance D1 = Door overlay on the cabinet top A = Min. Reveal
• Adjustable spring strength
• Angle restrictor clip of 85d is included

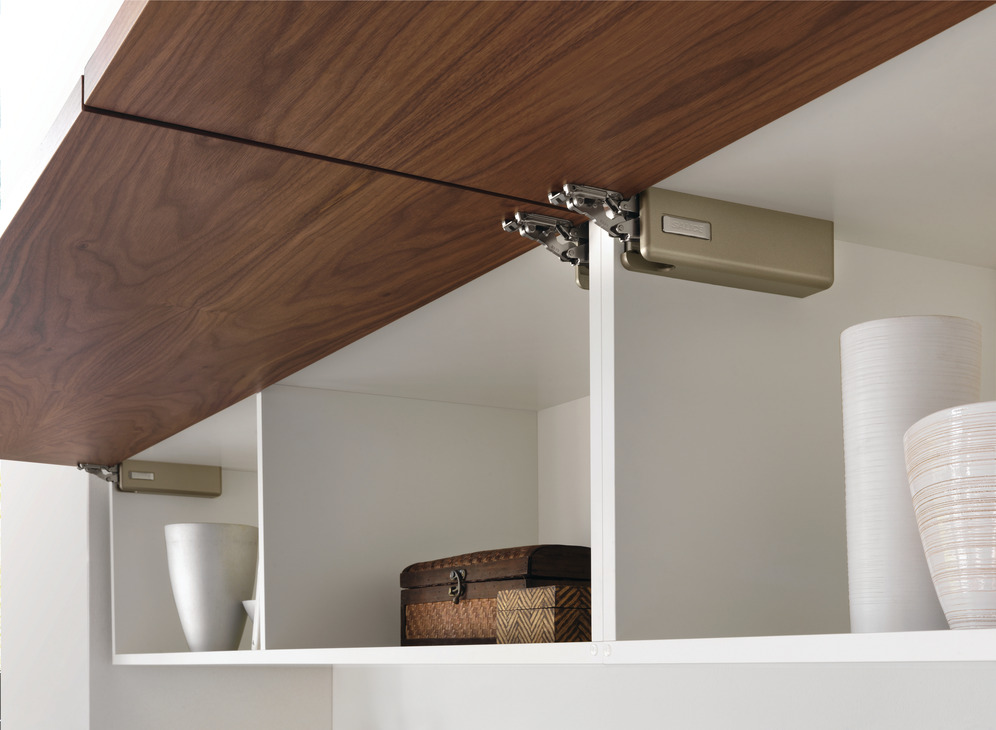

• Compact and elegant design

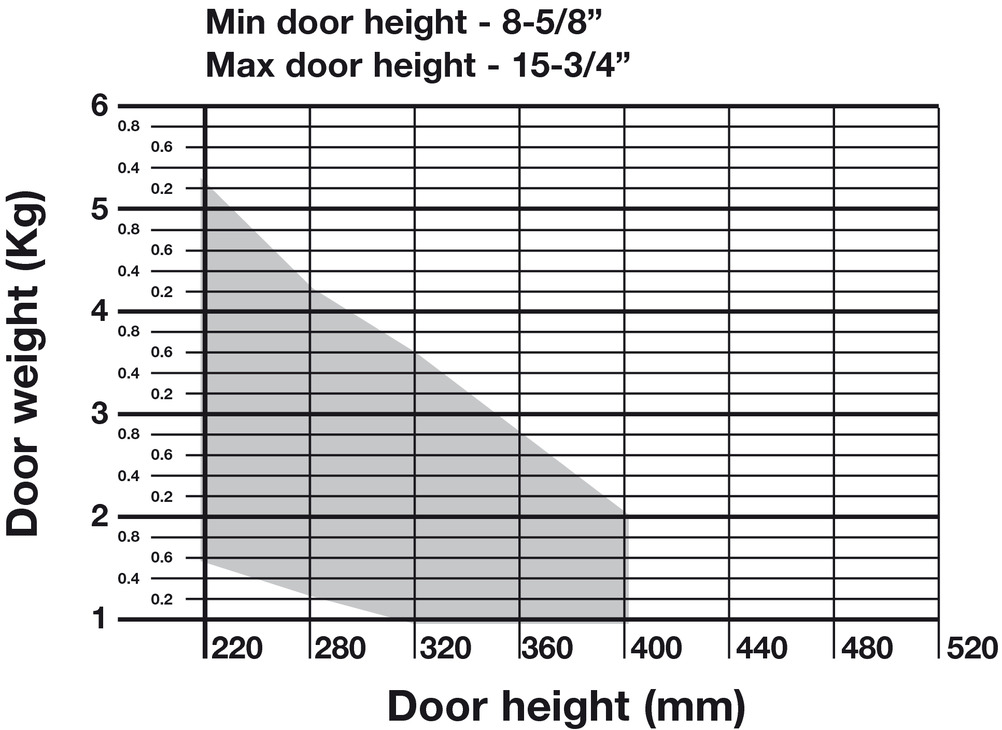

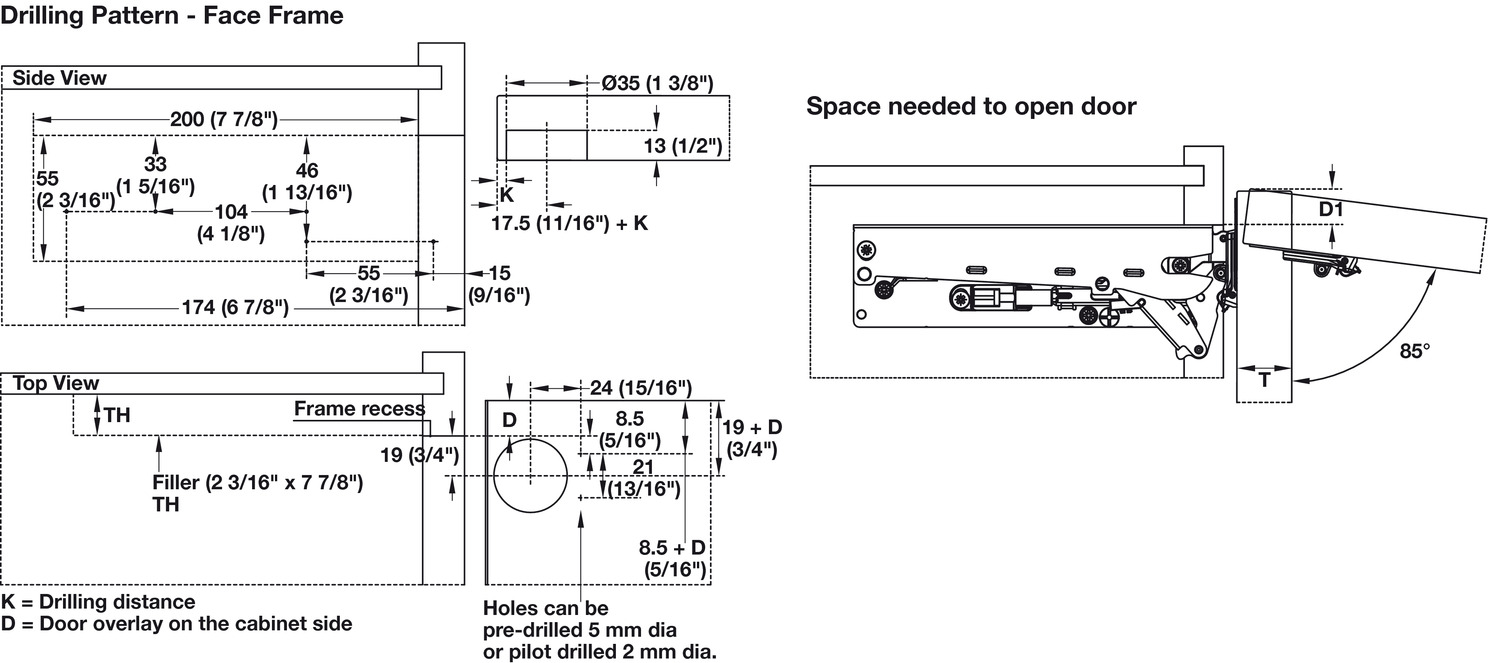

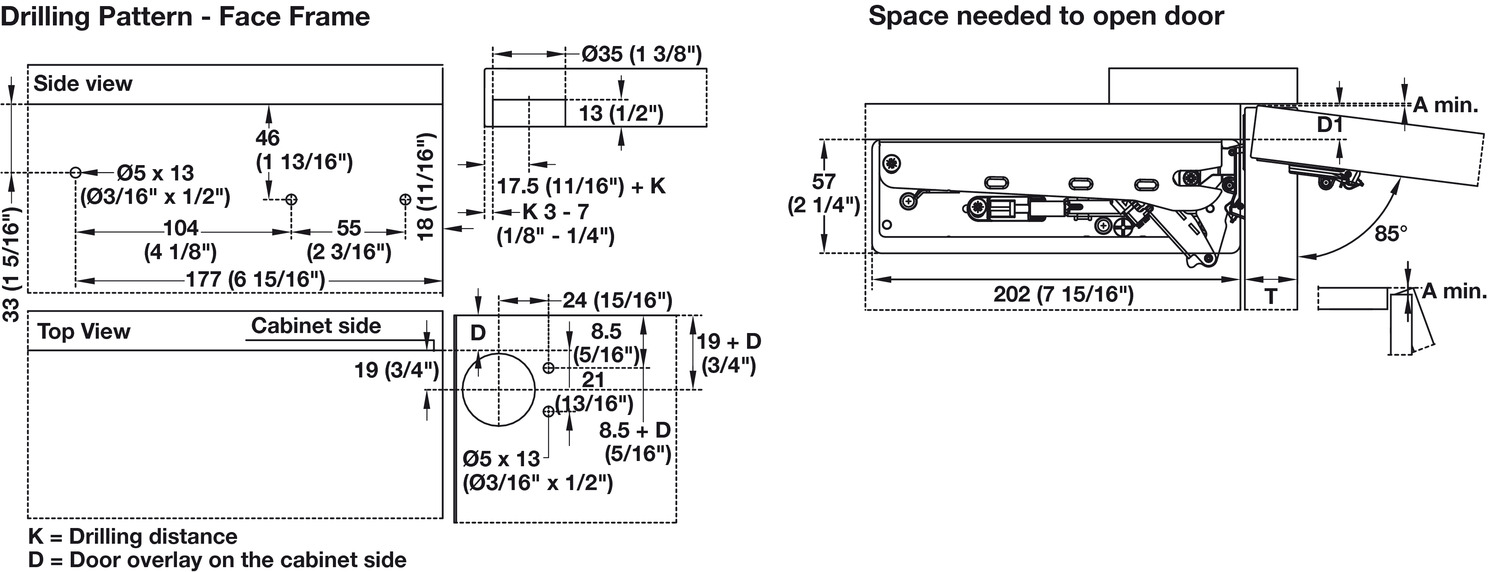

• Drilling of the door – 13 mm (1/2") deep
• Hardware and door easily installed with Salice snap-on technology
• Inset doors are possible with 6 mm (1/4") shim on the side with 28 mm (1 1/8") max. door thickness 35 mm (1 3/8")

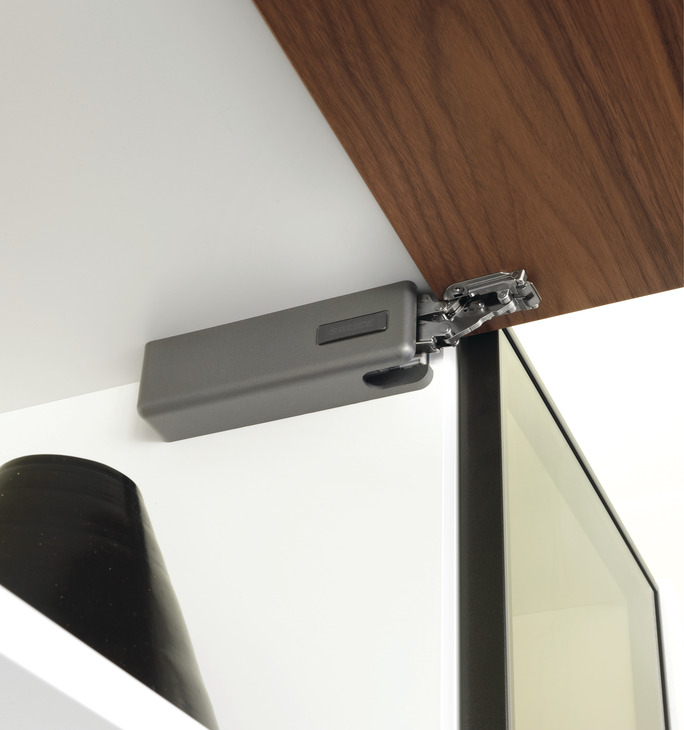

• Mounts at the top of a frameless cabinet - block out for face frame
• Optional top mounting bracket
• Tab (K) distance: 3-7 mm

Resources

• Salice Wind Mounting Instructions
