Attributes

Ship via: Can Ship UPS

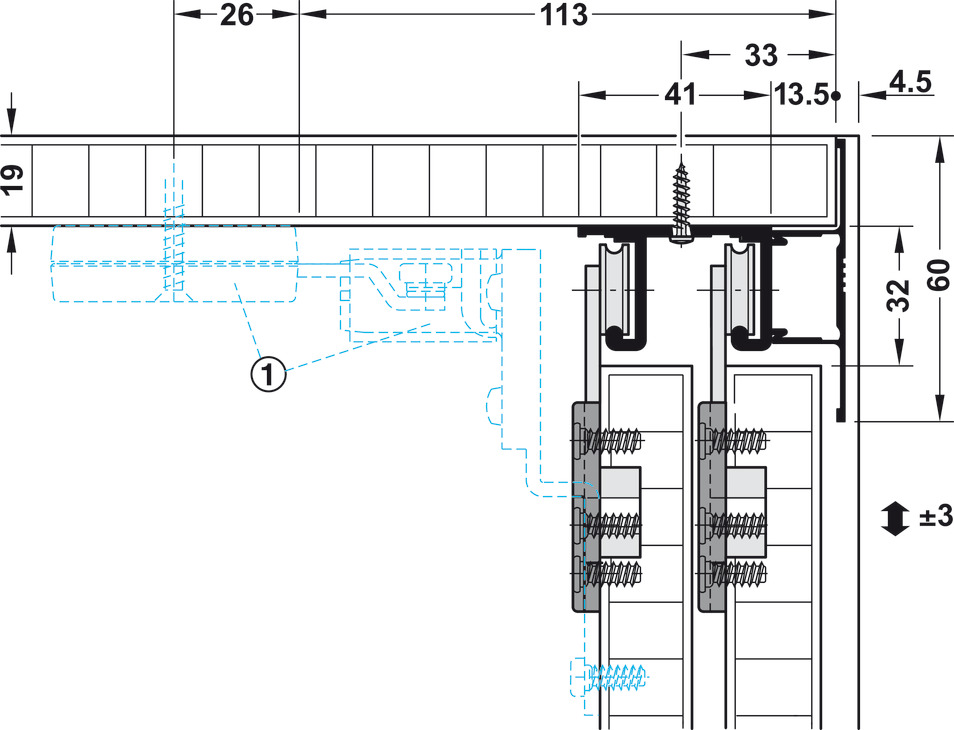

Adjustment facility: Height adjustment: ±3 mm, ±3 mm on running gear using eccentric screw

Area of application: For 3 doors

Door adjustment via: eccentric screw

Door height: Max. (7’ 2 5/8") 2200 mm

Door overlay: Recommneded: (1 3/16") 30 mm

Door stopper: Top clip-in door stopper, for sliding into double or single running track

Door thickness: (3/4") 19 mm

Door weight: ≤35 kg

Door width: Max. (47 1/4") 1200 mm

For door height: ≤2,200 mm

For door thickness: 19 mm

For door weight: ≤35 kg

For door width: ≤1,200 mm

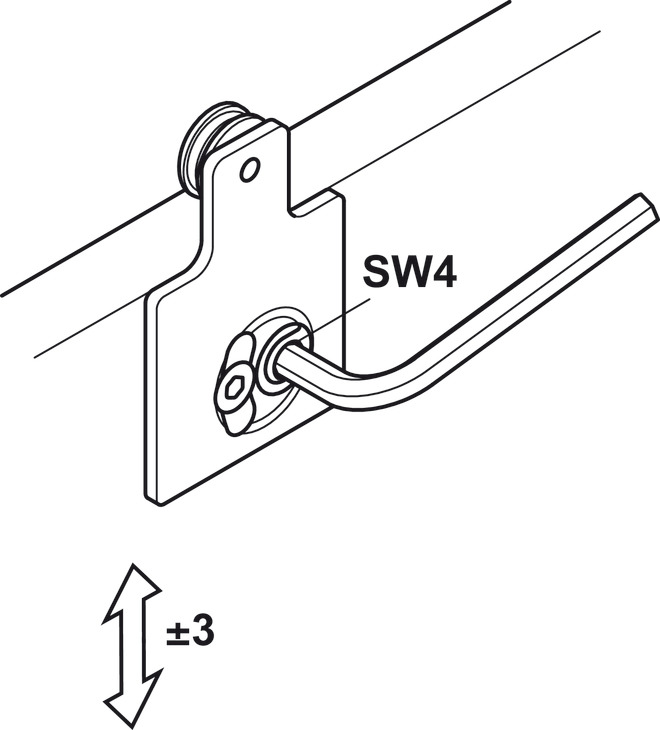

Height adjustment: Eccentric height adjustment ± 3 mm (1/8") on running gear

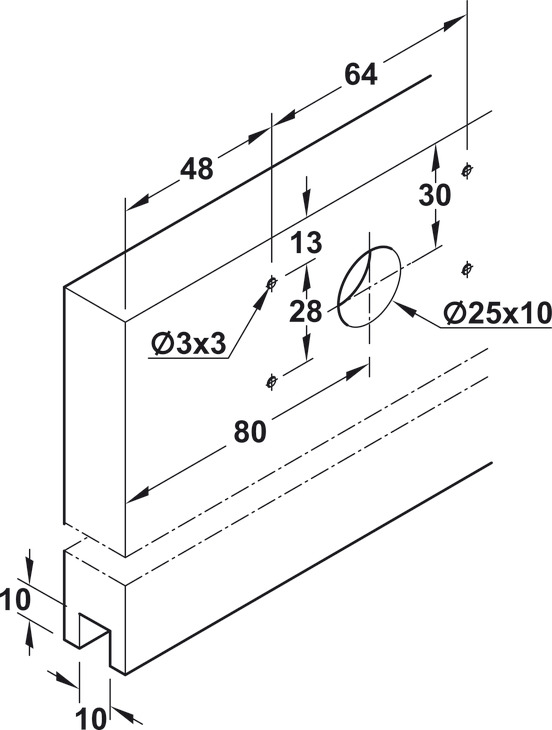

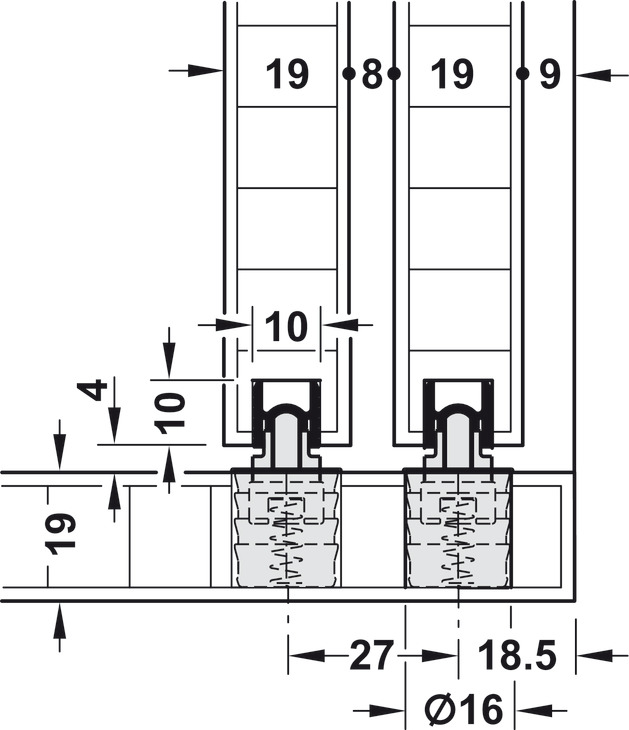

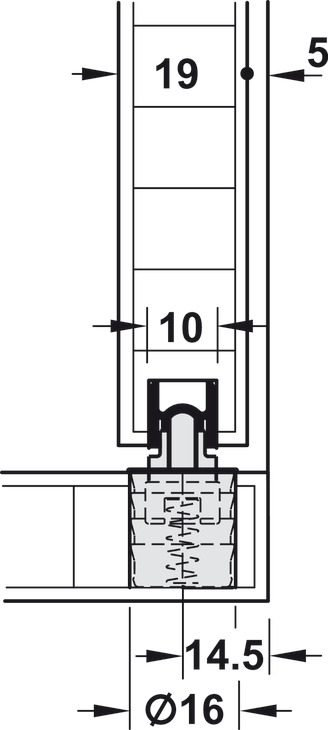

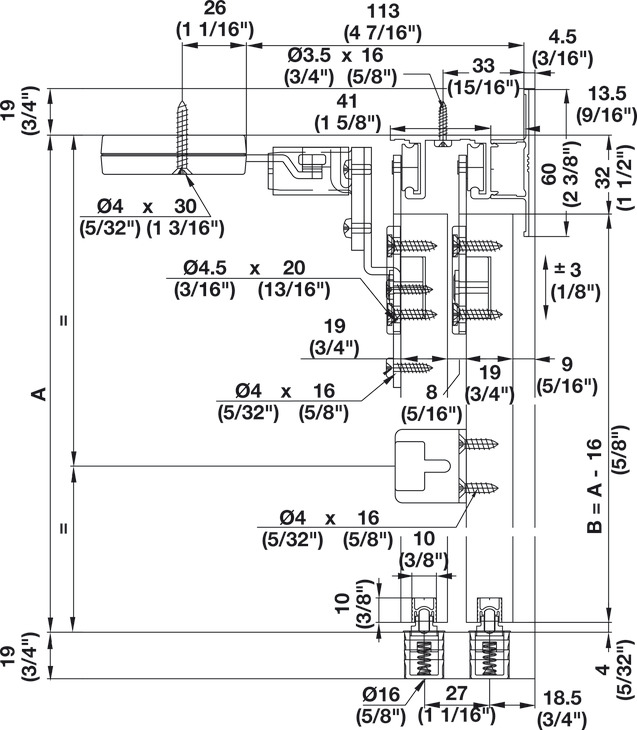

Installation: Guide for press fitting into a drill hole, Running gear for screw fixing, Backlash-free spring-loaded floor guide for press fixing

Load bearing capacity: (77 lbs) 35 kg

Material/finish: Running gear: Steel Guide: Plastic Rollers: Plastic Axis: Steel

Model series: Combino

Number of doors: 3.00

Number of doors per system max.: 2 to 3

Number of rollers: 2.00

Order reference: Please order guide and running track separately.

Running gear guided by: Ball bearing

Running position: Top

Set: Set without tracks

Soft closing mechanism: with clip-in door stopper

Suitable for: 3 doors

Supplied with: Set Components Include: Running gear Mounting bracket Track stopper with retainer Track stopper Guide Buffer (2 different types) Mounting screws

Type of opening: linear
