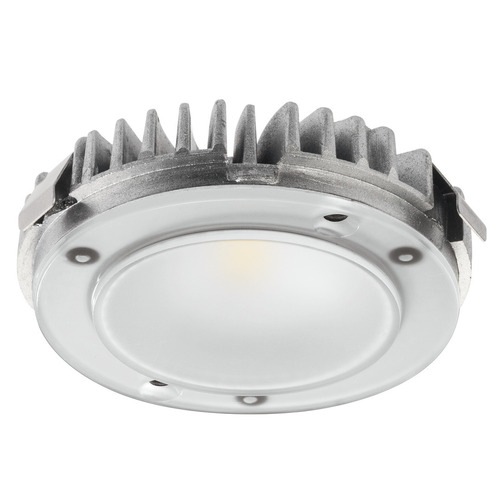

Hafele 833.72.282 Recess Mounted Light is a sophisticated lighting solution designed to enhance the aesthetic of display cabinets, shelving units, and shelves. This monochrome fixture features a polished chrome finish, combining style with functionality. With a warm white light at 3000 K and a power consumption of just 3.2 W, it provides an inviting atmosphere while being energy-efficient. The light is crafted from high-quality zinc alloy, ensuring durability and longevity. Measuring a drill hole diameter of 55 mm (2 3/16"), it is easily installed through drilled holes or with clamp fixing. The recessed design, coupled with a splash-proof rating of IP44, makes it suitable for use in wet rooms, although it is reduced to IP20 when surface-mounted. A generous cable length of 78 3/4" allows for flexible installation options, and the dimmable feature enables customization of brightness to suit any mood or occasion. With a refraction angle of 100°, this light provides excellent illumination without harsh glare. Whether you are upgrading existing fixtures or designing new spaces, the Hafele 833.72.282 Recess Mounted Light is a versatile choice that merges modern design with practical application.

Recess Mounted Light, Monochrome, Hafele Lighting LED 2020, 12 V

Drill hole Dia.: 55 mm (2 3/16"), Polished chrome, warm white 3000 K, 3.2 W

The degree of protection IP44 is reduced to IP20 when surface mounting or recess mounting with through hole.

Resources

• CAD data
• Declaration of conformity
• EU Declaration of Conformity
• Installation instructions
• Installation instructions for LED 2020
• Loox – Electrical Code Compliance
