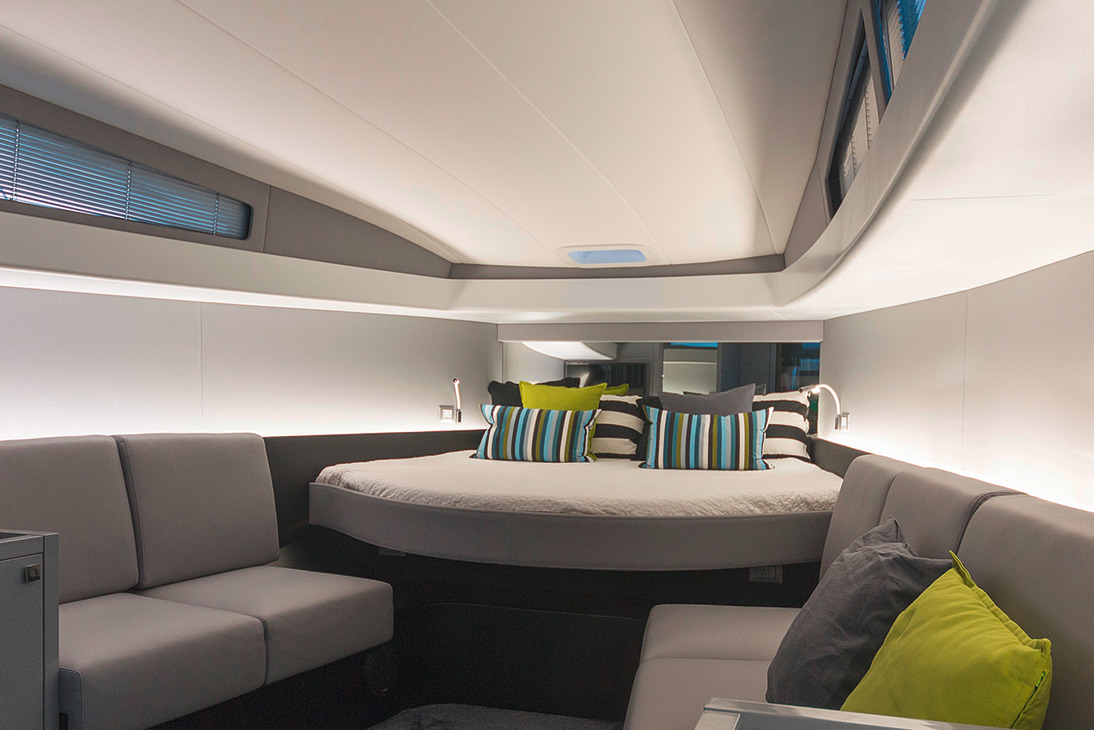

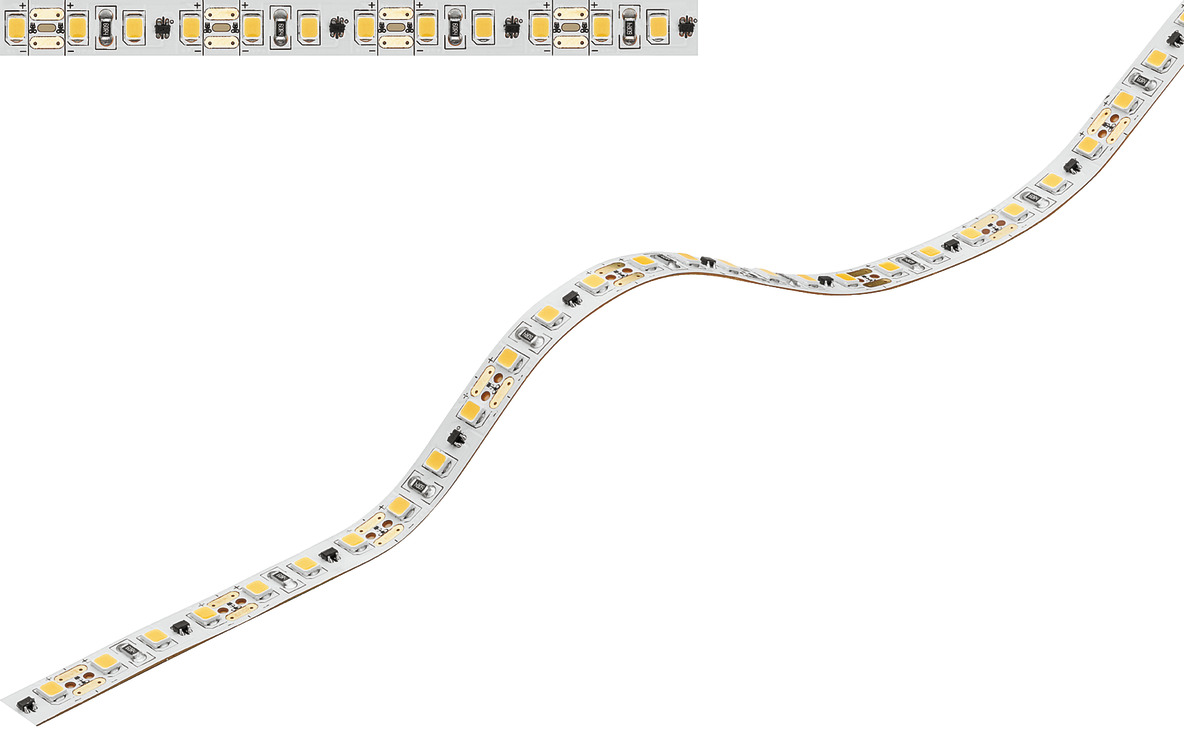

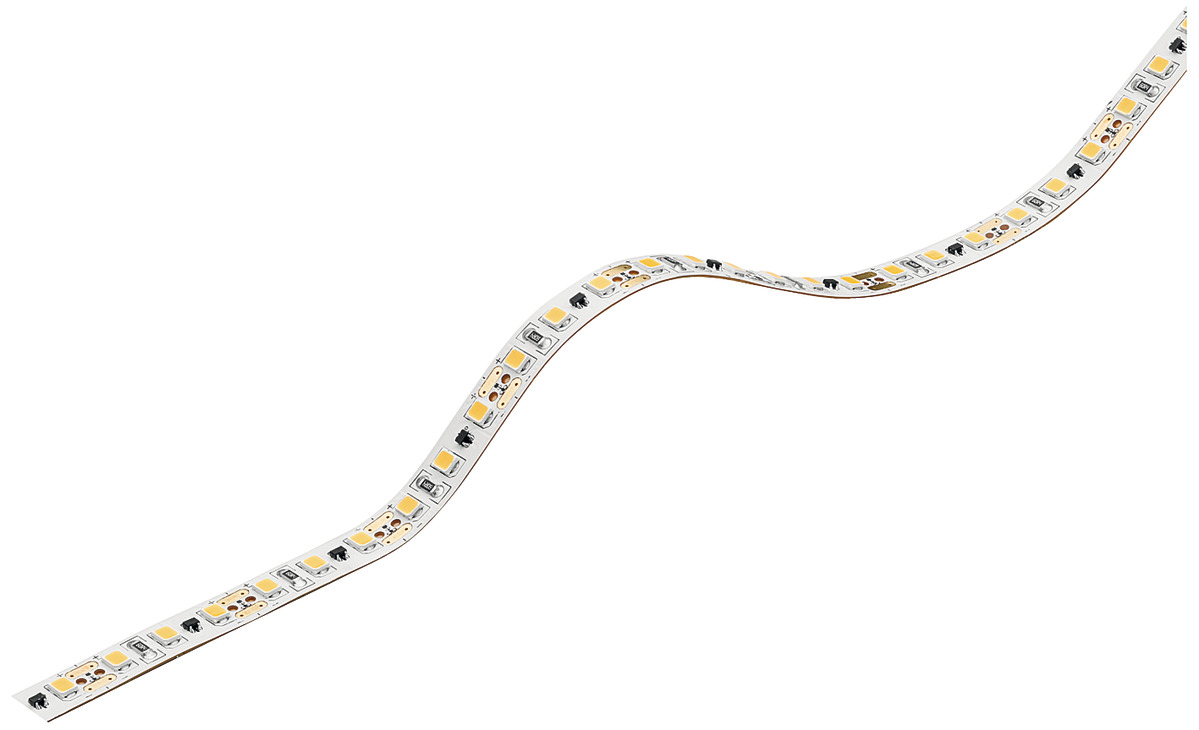

Hafele 833.74.377 Flexible Strip Light offers an exceptional lighting solution with its advanced Loox5 LED technology, designed to provide uniform brightness and a long service life. This strip light operates at a nominal voltage of 12 V and features 120 high-quality Samsung® LEDs per meter, delivering a warm white light at a color temperature of 3000 K. With a luminous efficacy of 90 lm/W and a luminous flux of 860 lm per meter, this flexible strip light ensures efficient illumination for various applications. Measuring 50 m in length and just 1/16" in height, the Hafele strip light is perfect for installation in caravans, boats, or behind furniture to create ambient or task lighting. Its self-adhesive backing allows for easy installation, while the IP20 rating ensures protection against dust, making it suitable for indoor use. The strip is dimmable, providing versatility in lighting control. With a maximum visual strip length of 6.20 m, users can enjoy a seamless lighting experience without perceptible drop in luminous flux. This product is shipped via UPS and is energy-efficient, classified as G. Enhance your space with the Hafele 833.74.377 Flexible Strip Light, where functionality meets modern design.

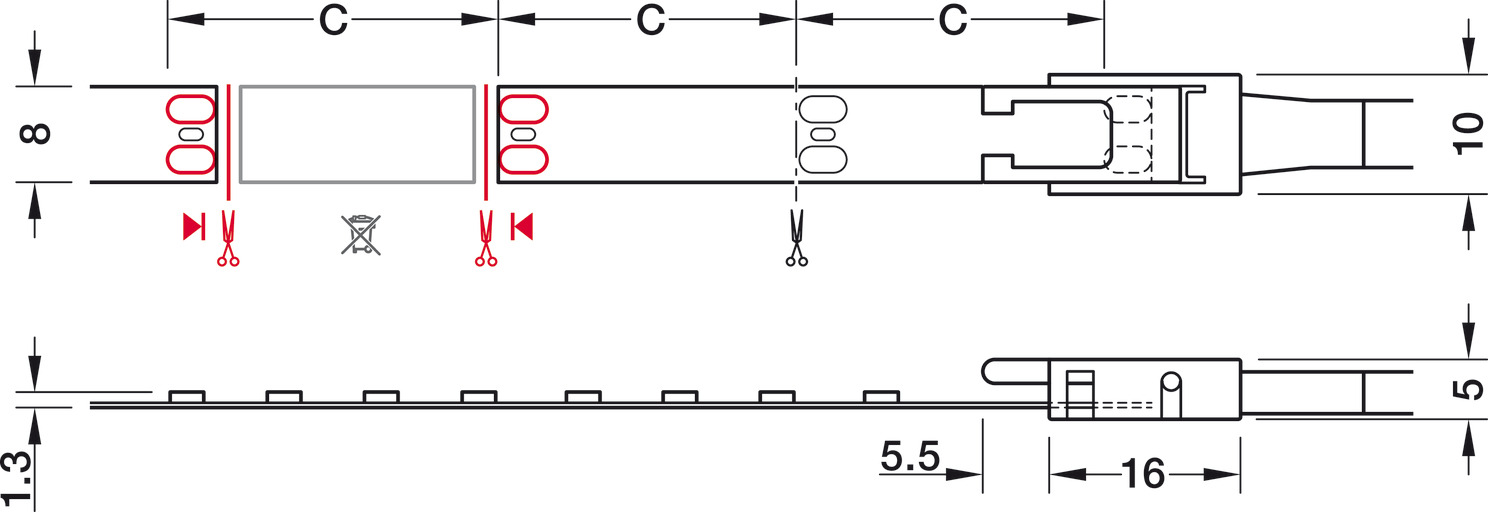

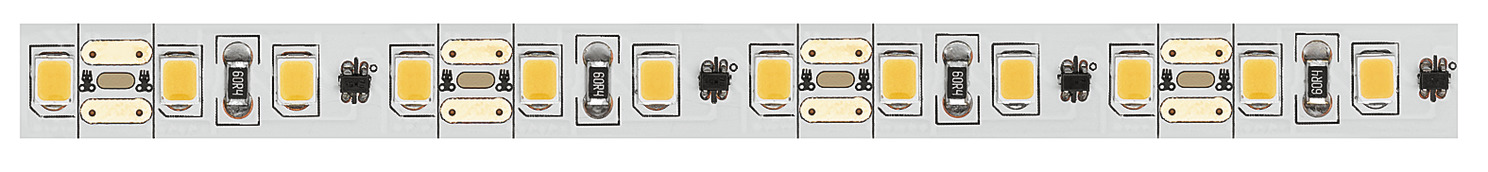

Flexible Strip Light, Hafele Loox5 LED 2077, 12 V, monochrome constant current, (5/16") 8 mm

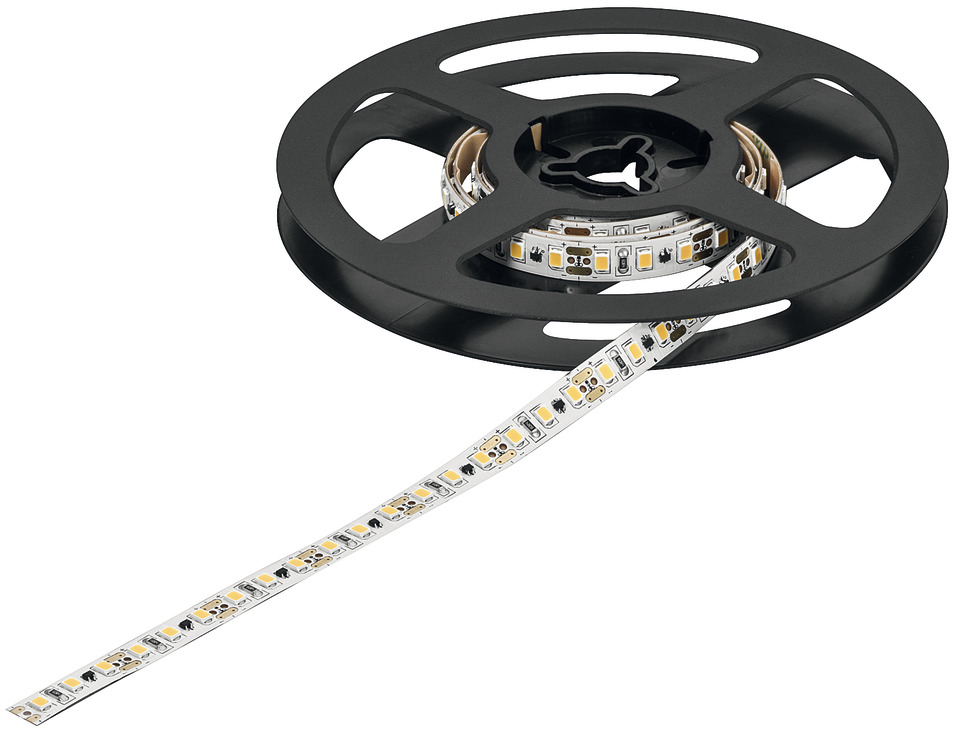

120 LEDs/m, 9.6 W/m, Warm white 3000 K, (1968 1/2") 50 m available length

With constant current strip lights, the maximum strip length (visual) describes a strip section within which the drop in luminous flux is not visually perceptible, not even in comparison to a strip section with a new power supply that follows immediately. Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.
