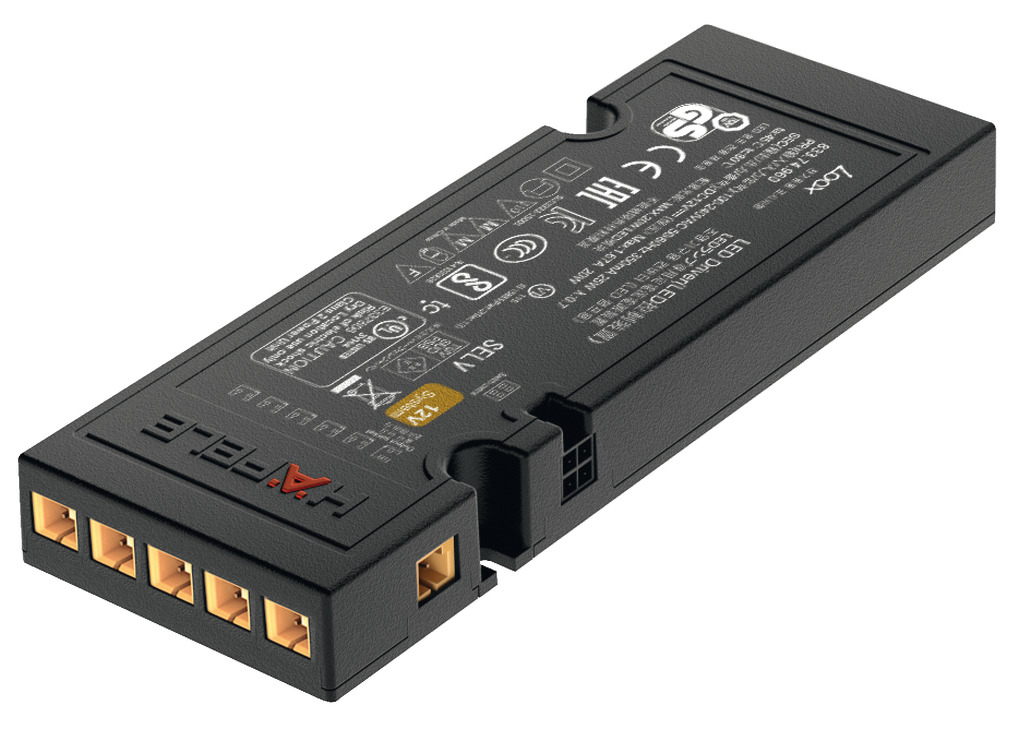

Hafele 833.74.960 12V Constant LED DriverHafele 833.74.960 LED Driver is a versatile 12 V constant driver designed for seamless integration with the Generation Loox plug system. This driver supports a parallel connection with a maximum output power of 20 W and can accommodate up to 42 W per light output, making it suitable for diverse lighting applications. It operates efficiently with all of the world’s power systems, accommodating mains voltages from 100 to 240 V and frequencies of 50–60 Hz. With its compact dimensions of 140 x 50 x 16 mm, the driver is designed for easy installation through screwing on, ensuring a secure fit. It features six Loox 2-pin sockets for connections and a dedicated socket for a Loox switch, enabling straightforward control of your lighting. Safety is paramount, and this driver includes overload protection and operates under Safety Class 2 standards. It is essential to install the driver in a well-ventilated area, maintaining a minimum surrounding distance of 50 mm for optimal air circulation. While it offers a switching function, it should be noted that Loox drivers cannot be controlled by a dimmer wall switch. Enhance your lighting setup with the reliability and efficiency of the Hafele 833.74.960 LED Driver.
LED Driver, 12 V Constant

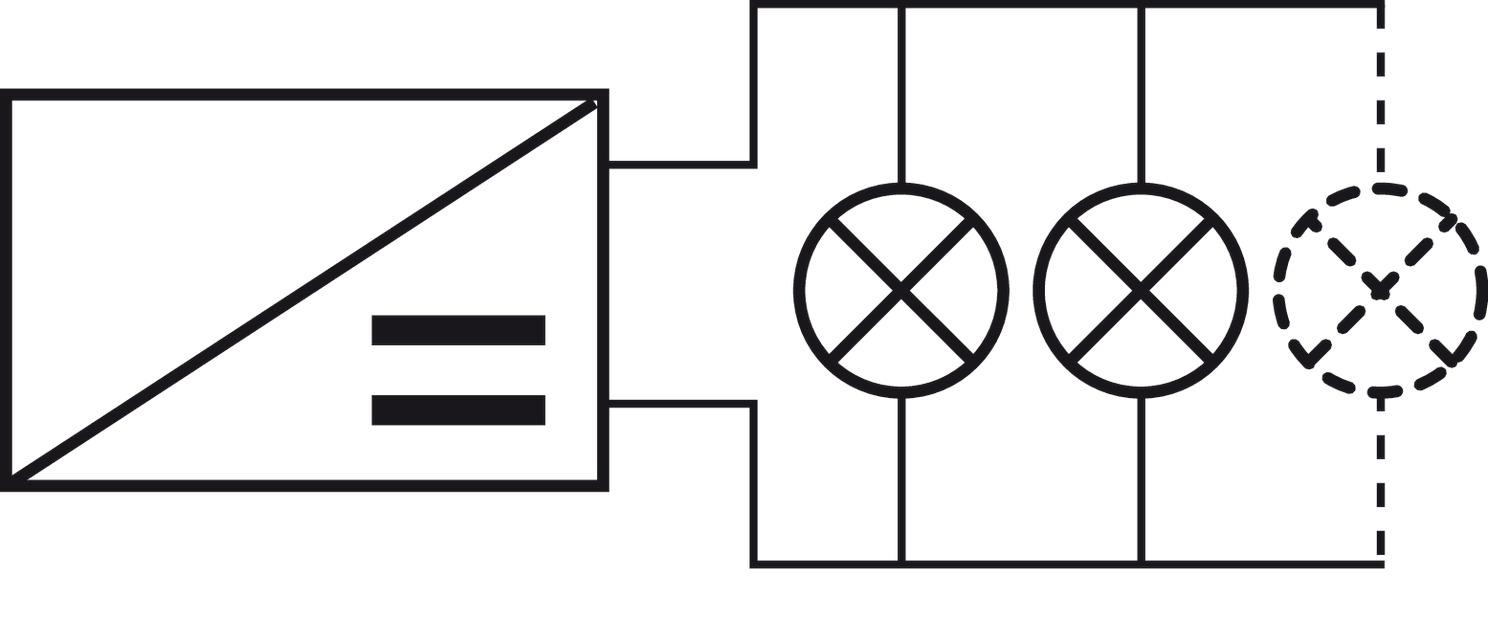

Parallel connection, 20 W
Suitable for all of the world’s power systems 12 V driver with Generation Loox plug system
With integrated port for a wide selection of switches Max. 42 W per light output; 30 W for 833.74.913
Lead length from driver to switch: Max.: 6 m (236 1/4") Drivers must be mounted in well ventilated area Safety Class 2 with overload protection Degree of protection IP20
Loox drivers cannot be controlled by a dimmer wall switch
- Min. distance surrounding 50 mm. Provide for sufficient air supply and circulation. Please note max. ambient temperature. Overvoltage protection must be provided. Provide inspection opening.
- Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies) Cat. No. 833.74.900 833.74.901 833.74.913 833.74.914 833.74.917 833.74.918 833.74.941 833.74.946 833.74.960 833.74.962 833.74.964 833.74.983 833.74.984 Mains voltage 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V Mains frequency 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz Output power 15 W 30 W 60 W 60 W, Max. 30 on one slot 20 W 20 W 15 W 15 W 20 W 40 W 60 W, Max. 30 on one slot 60 W, Max. 30 on one slot 60 W, Max. 30 on one slot Protection class II II II II II II II II II II II II II Efficiency at 230 V full load 86 % 86 % 81 % 81 % 86 % 87 % Power consumption at 230 V no load 0.5 W 0.5 W 0.5 W 0.5 W 0.13 W 0.5 W Dimming capability dimmable with Häfele sensors, PWM signal dimmable with Häfele sensors, PWM signal dimmable with Häfele sensors, PWM signal dimmable with Häfele sensors, PWM signal dimmable with Häfele sensors, PWM signal Weight 304 g 77 g 76 g 94 g 199 g Disposal note Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations.
Attributes
Ambient temperature: -10–40 °C
Area of application: For 12 V device with Loox plug system for switch with Loox plug system, connecting to all of the world's most frequently used mains voltages and mains frequencies
Color/finish: Black
Connections: 6 x sockets, Loox 2-pin 12 V
Control input ports: 1 x socket, Loox switch
Dim. ( L x W x H): 140 x 50 x 16 mm
Efficiency at 230 V full load: 86 %
Installation: For screwing on
Installation reference: Min. distance surrounding 50 mm. Provide for sufficient air supply and circulation. Please note max. ambient temperature. Overvoltage protection must be provided. Provide inspection opening.
Mains frequency: 50 – 60 Hz
Mains voltage: 100 – 240 V
Number of switch connections: 1.00
Order reference: Alternative mains leads available with open cable ends or switches. Country-specific leads with C7 small device socket at www.haefele.de Please order adapter for connecting to Loox5 driver and adapter for connecting Loox5 devices separately.
Output power: 20 W
Output voltage: 12 V DC
Power consumption at 230 V no load: 0.13 W
Standby power consumption: 0.13 W
Suitable for: 12 V consumer with Loox5 plug system
Supplied with: 1 Adapter Loox5 device - Loox driver
Version: Parallel connection
Weight: 94.00 g
With switching function: Yes
