Hafele 833.77.223 Loox LED 3028 Flexible Strip Light, 24VHafele 833.77.223 Flexible Strip Light, Loox LED 3028, 24 V offers a versatile lighting solution ideal for enhancing kitchen and living room furniture. With a cool white color temperature of 5,000 K, this strip light delivers an impressive luminous flux of 8,140 lumens, creating bright and inviting spaces. The strip measures 5,000 mm in length and is designed to be easily shortened every 25 mm, providing flexibility in installation. Installation is straightforward, as the strip light is self-adhesive and compatible with all Hafele aluminum profiles, except specific models. With a maximum strip light length per lead of 3.8 m and a wattage of 72 W, it ensures optimal performance when connected to a single output of a 90 W driver. The light's energy efficiency class is rated A+, making it an environmentally friendly choice. The Hafele 833.77.223 also boasts a luminous efficacy of 84 lm/W and an IP20 degree of protection, ensuring durability and reliability. Its slim profile, with a height of just 1.30 mm and a width of 12 mm, allows for seamless integration into various designs. Enhance your spaces with this stylish, adaptable lighting solution from Hafele.

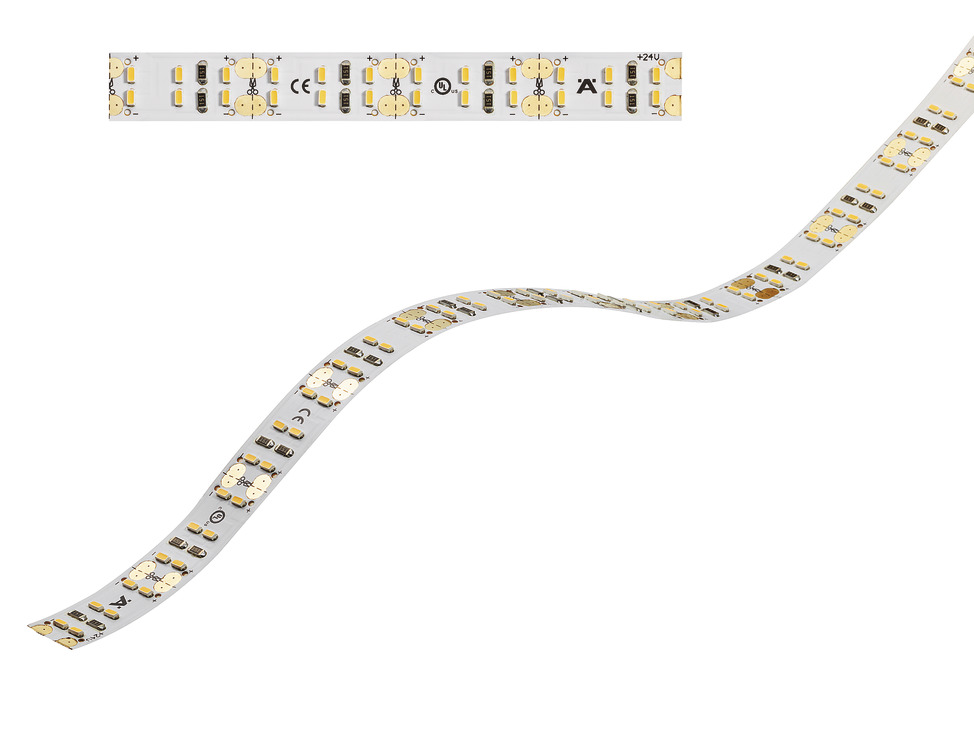

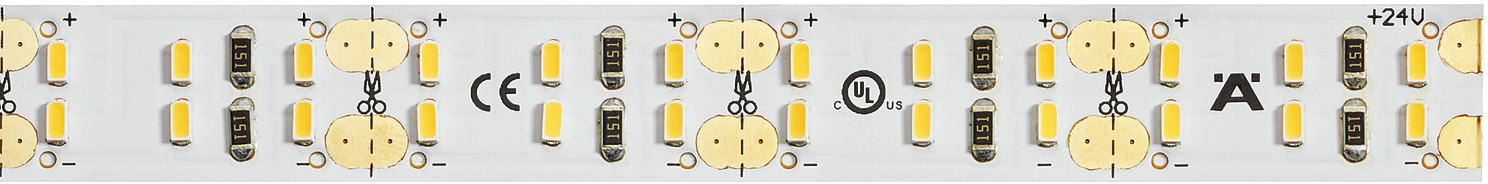

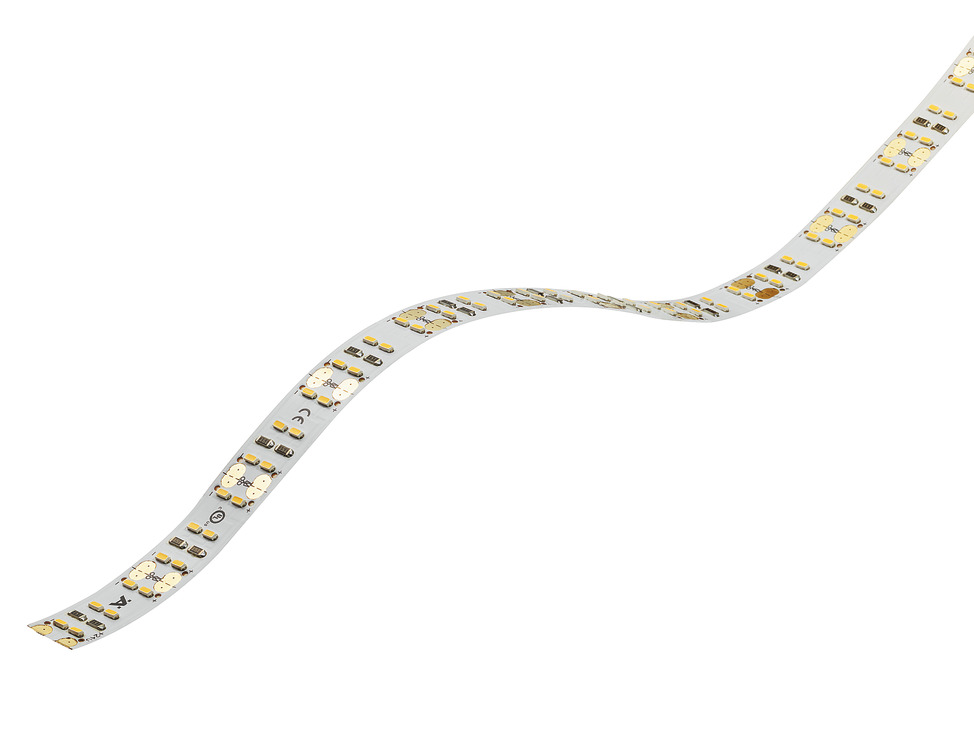

Flexible Strip Light, Loox LED 3028, 24 V
Two rows, Cool white 5,000 K, luminous flux: 8,140 lm, 5,000 mm

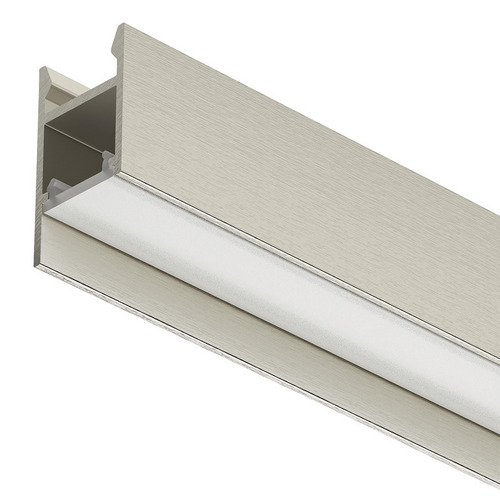

Dimmable Can be shortened every 25 mm (1") Installation only with aluminum profile All aluminum profiles are suitable except 833.72.860, 833.72.863, 833.72.864, 833.72.865, 833.74.809, 833.74.814, 833.74.835 Max. strip[ light length per lead: 3.8 m (12’ 5 5/8") Max. watt per lead: 72 W
Dimmable Can be shortened every 25mm (1") Installation only with aluminum profiles All aluminum profiles are suitable except 833.72.860, 833.72.863, 833.72.864, 833.72.865, 833.74.809 and 833.74.835 Max. strip light length per lead: 3.8 m (12’ 5 5/8") Max. watt per lead: 72 W
Connecting to a single output of the 90 W driver.
Attributes
Ship via: Can Ship UPS

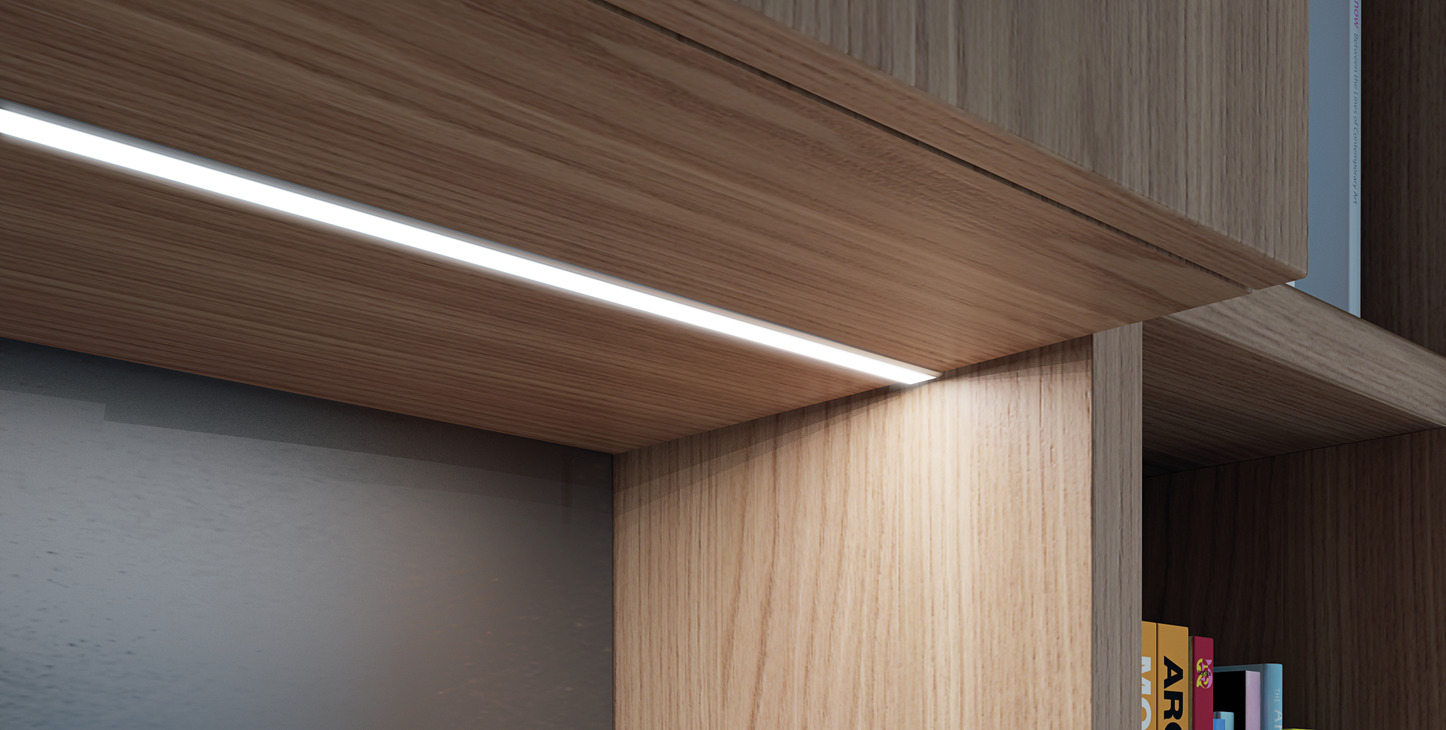

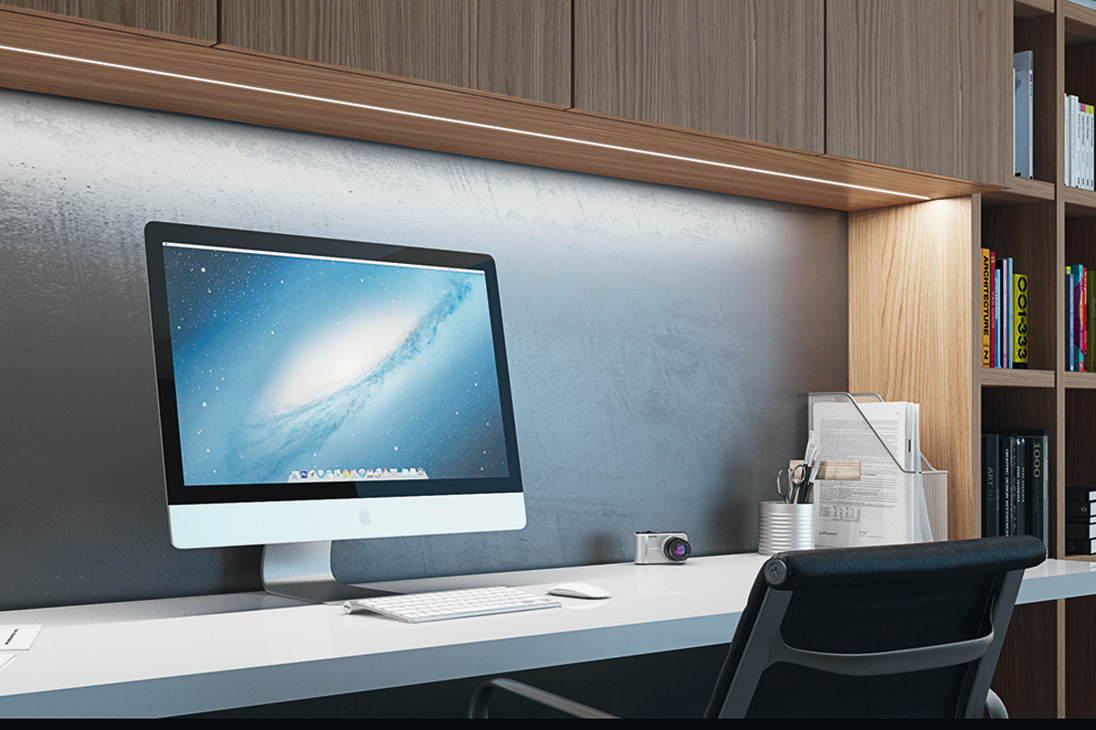

Area of application: Kitchen and living room furniture
Cable length: 2,000.00 mm
Color: White
Color temperature: 5,000 K
Degree of protection: IP20
Dimmable: yes
Energy efficiency class: A+
Height (inch): 1/16"
Installation: Self-adhesive
Length (inch): 196 7/8"
Light color: Cool white
Luminous efficacy: 84 lm/W
Material: Plastic
Nominal voltage: 24.00 V
Order reference: Please note the max. permitted strip light length when ordering components and drivers.

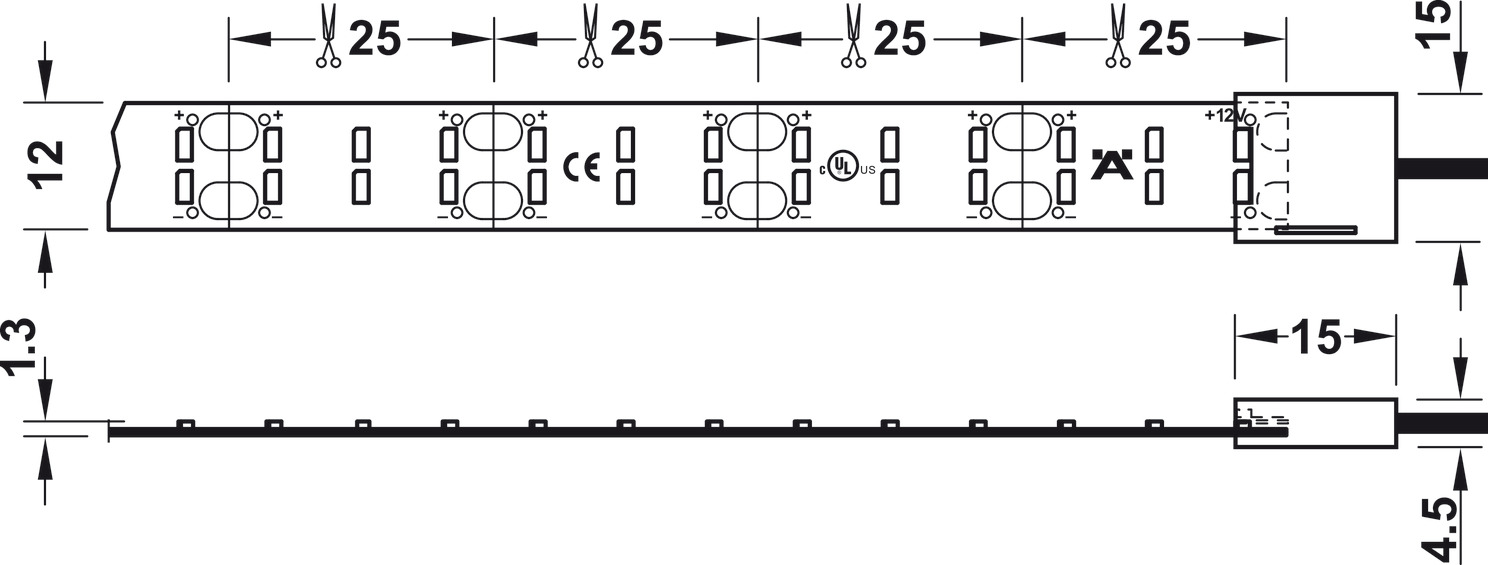

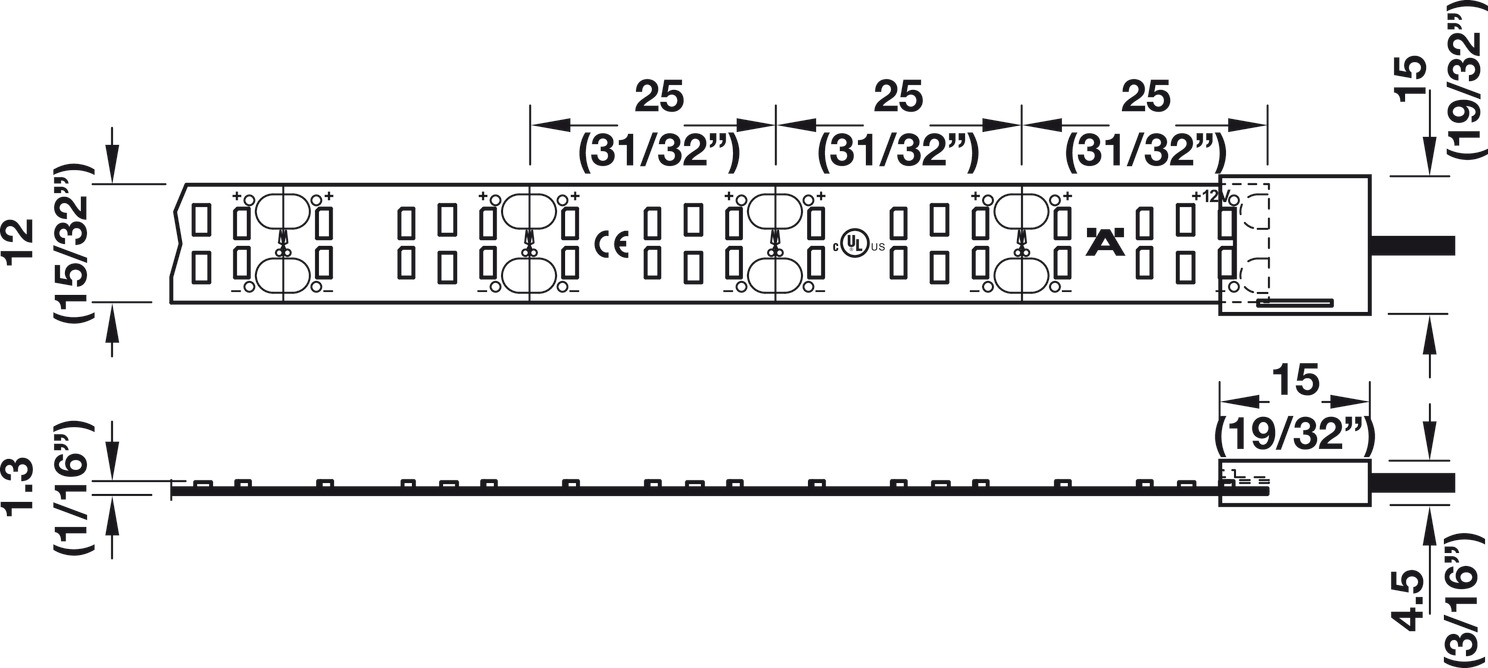

Section length: 25.00 mm
Strip height: 1.30 mm

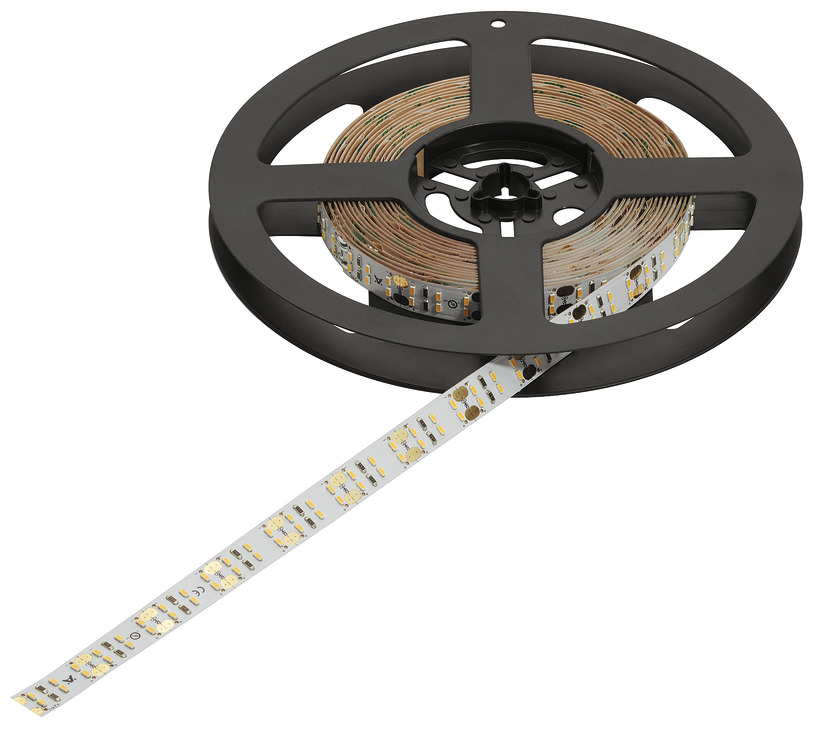

Strip length: 5.00 m
Strip width: 12.00 mm
Supplied with: 2 m (78 7/16") lead
Wattage/m: 19.20 W
