Hafele 833.94.212 Aluminum Profile, Hafele Loox5 Profile 2101 for LED strip lights provides a sleek and efficient solution for lighting integration in your projects. With an internal width of 13 mm (1/2") and a generous length of 92" (2336 mm), this surface-mounted profile is designed to accommodate LED strip lights up to 8 mm wide, making it versatile for various applications. Crafted from brushed stainless steel-colored aluminum, this profile not only enhances the aesthetic appeal of any installation but also ensures durability. The opal white diffuser included with the profile offers excellent light diffusion, minimizing visible points from 120 LEDs/m, which is particularly beneficial for achieving a soft, even illumination. For projects requiring different effects, alternative diffusers in black or transparent can be ordered separately. Installation is straightforward, allowing for both glue fixing and screw mounting, with the option for surface or recess mounting. When recessed, the edge of the profile remains hidden, providing a clean finish. With a light permeability of 60–70%, this profile effectively balances brightness and ambiance, making it an ideal choice for both residential and commercial settings. Each package comes with one aluminum profile and one opal white diffuser, ensuring you have everything you need for installation.

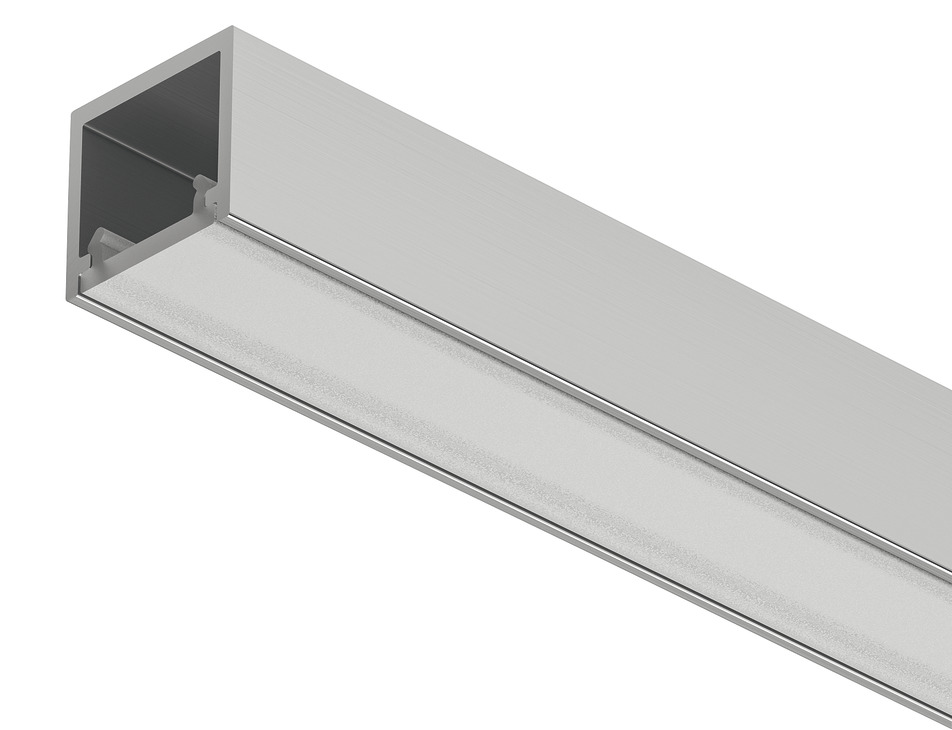

Aluminum Profile, Hafele Loox5 Profile 2101 for LED strip lights

Internal width 13 mm (1/2"), Surface Mounted, Length: (92") 2336 mm, brushed stainless steel colored

For LED strip lights up to a width of 8 mm. The surface on the aluminum profile that is to be bonded must be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free! Routing dimensions are for reference only. Furniture construction may affect dimensions. Diffuser The opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with black version. If required, please order alternative diffusers in black or transparent separately.

Resources

• CAD data
• Hafele_Lighting_ 2024 | Page 217
• Loox – Electrical Code Compliance
