Hafele 850.00.848 Product Instruction ManualHafele 850.00.848 Product offers a practical solution for those seeking quality and reliability in their hardware needs. Designed with versatility in mind, this product can be conveniently shipped via UPS, ensuring that it reaches you promptly and efficiently. Its robust construction guarantees durability, making it suitable for a variety of applications in both residential and commercial settings. The 850.00.848 model stands out for its user-friendly design, allowing for easy installation and integration into existing projects. This feature is particularly beneficial for building professionals and knowledgeable homeowners looking to streamline their workflow without compromising on quality. Whether you are upgrading furniture fittings or enhancing architectural hardware, the Hafele 850.00.848 Product is crafted to meet high standards, aligning with Hafele's reputation for excellence in the industry. Its compatibility with a range of systems makes it an ideal choice for diverse design requirements. Trust Hafele's commitment to innovation and functionality with the 850.00.848 Product, designed to support your projects with ease and efficiency. Elevate your hardware solutions with this reliable choice that combines practicality and performance seamlessly.

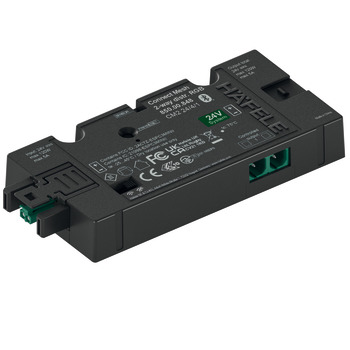

2-way distributor, Hafele Connect Mesh, 4-pin (RGB) 24 V, switchable wired-wireless switching
with programmable switching function, 24 V, 120 W / UL 90 W
Color temperature and dimming can be controlled wirelessly or manually Switch port for wired switches/sensors can be used in either wireless or manual modes 2 output ports; both output ports are controlled together. EasyPairing enabled; allows direct pairing with Häfele Connect Mesh wireless switches and remotes

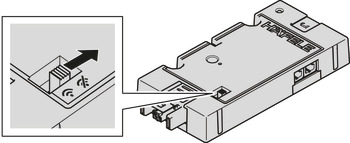

Wireless Bluetooth mode * Control Color temperature and light intensity wirelessly * Connect with any Hafele Connect Mesh wireless switch or remote with Easy Pairing. * Use Hafele Connect Mesh App2.0 for full functionality or for customizing network settings. Manual Control mode * Control Color temperature manually by pushing button on distributor. 8 color options: red, orange, yellow, green, cyan, blue, violet, magenta. With another push of the button, it will phase through each of the colors in an 80 second cycle. * Connect a wired switch to the switch port to control On/Off and Dimming * For wireless control of On/Off/Dimming, attach Connect Mesh Receiver (850.00.860) to the switch port. Order separately.
Compatible with tunable white 3-wire LED strip and puck lights. This item is replacing 850.00.957, 850.00.983 and 833.95.892.
Attributes
Area of application: for on/off switching, dimming (0-100%) and colour change of 4-pin RGB lights
Color system: RGB
Color/finish: Black
Connected output ports: 2 x sockets, Loox5 4-pin RGB 24 V
Connections: 1 x socket, Loox5 2-pin 24 V box to box
Control input ports: 1 x socket, Loox switch
Dim. ( L x W x H): 115 x 50 x 16 mm
Distance between controls max.: 5.00 m
Height (inch): 5/8"
Input ports: 1 x plug, Loox5 2-pin 24 V box to box
Length (inch): 4 1/2"
Low voltage plug: Loox5 2-pin 24 V box to box
Material: Plastic
Power rating: 120.00 W
Supplied with: 1 Connect Mesh 2-way distributor
Switching function: color change soft, on/off and dim
Width (inch): 2"
