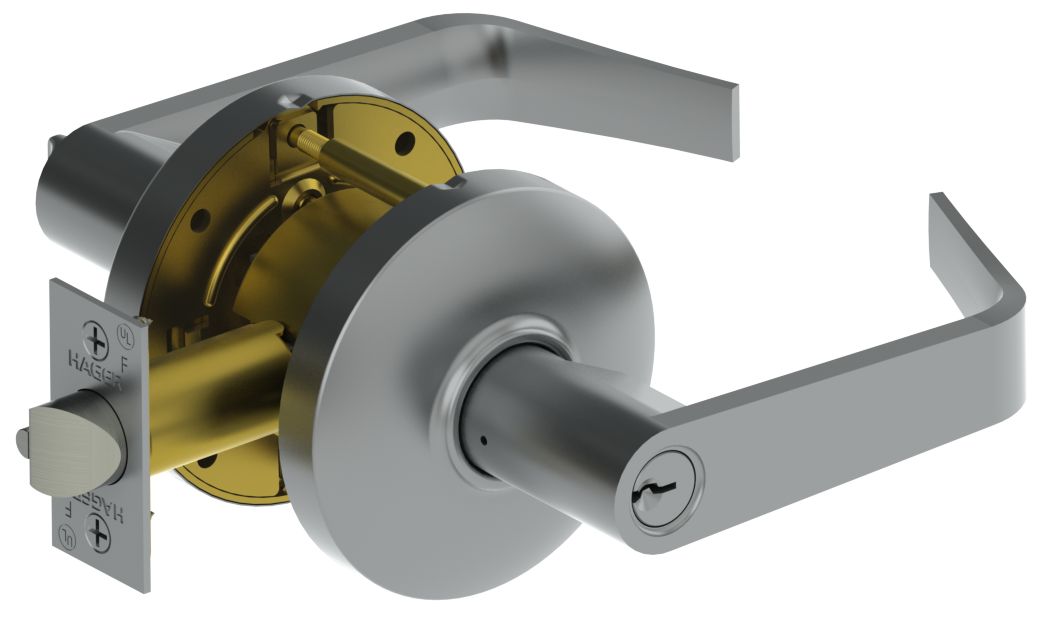

Hager 3580WTN26D Withnell Lever Storeroom Cylindrical Lock is designed for standard duty commercial applications, ensuring security and durability in storerooms and similar environments. This Grade 2 lockset features the elegant Withnell lever, crafted from zinc, providing both strength and a refined aesthetic with its satin chrome finish (US26D). The lockset’s non-handed design allows for versatile installation on doors ranging from 1-3/8" to 2" thick, accommodating a variety of commercial door types. It utilizes a 2-3/4" backset and a 2-1/8" crossbore size, making it compatible with standard door preparations. With no exposed mounting screws, the Hager 3580WTN26D offers a sleek and clean appearance. Backed by a limited lifetime warranty and a 1-year finish warranty, this lockset is built to last. The 6-pin cylinder features the Hager keyway, enhancing security and ease of use. Additionally, it is UL/cUL listed for all functions up to 3 hours, assuring compliance with safety standards. The round rose design and ASA strike with dimensions of 1-1/4" x 4-7/8" complete this robust locking solution. Elevate your door hardware with Hager’s commitment to quality and innovation.
At Hager, we are committed to being your one source for full line door hardware. We stand alone as one family and one brand. We create products that make a difference in one community at a time, while being mindful of the one planet we all share. Every product that Hager offers is backed by a 167-year legacy of quality, reputation, and excellence.
Attributes
Baa Qualified: No
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Clazz: HH
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Design: Withnell
Dimension: 3-11/32" Rose; 4-17/32" Lever Length; 2-21/32" Projection
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8" to 2"
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Function: Storeroom
Grade: Grade 2
Hazardous Material: NO
Installation: Commercial
Item Class Description: Withnell Lever Storeroom Cylindrical Lock # 000143
Item Type Keyword: Storeroom
Keying: Keyed Different
Keys: Cut
Keyway: Hager Keyway
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: WTN - Withnell
Leverknob Design: WTN - Withnell Lever
Limited Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Manufacturer Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Material: Zinc Lever, Wrought Brass Rose, and Steel Chassis
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Number Of Inners: 1
Number Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
PO date: 2024-10-03
Pack Qty: 1
Pins: 6
Product Dimension: 3-11/32" Rose; 4-17/32" Lever Length; 2-21/32" Projection
Restrictions: None
Rose Escutcheon Design: Rose
Roseescutcheon Design: 3-17/32" Rose Diameter
Series: Hager 3500 Series
Std Keyway: Schlage C
Strike: ASA Strike
Strike Dimension: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL/cUL Listed for all functions up to 3 Hours
Unit of Measure: Each
Upc: 04135900143000
