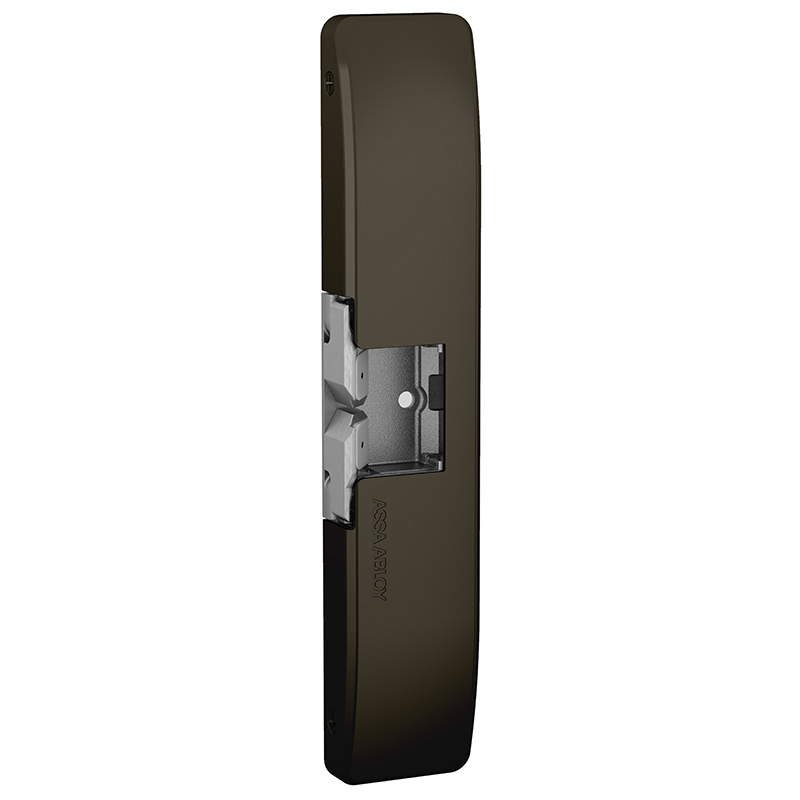

Assa Abloy Electronic Security Hardware - Hes 9500613LBSM 12VDC / 24VDC Electric Strike Body with Latchbolt Strike Monitor Oil Rubbed Bronze Finish
Attributes
Ship via: Can Ship UPS
Adjustability: Horizontal
Amp Draw: .45 @ 12V .25 @ 24V
Baa Qualified: Yes
CAL FIRE, 3776-1654: 0101
Configuration: Centered
Country of Origin: Usa
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Faceplate Size: 9 In. X 1-3/4 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 613 Dark oxidized satin bronze, oil rubbed
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: Yes
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Holding Force: 1500
Keeper Size: PK
Latchbolt Accommodation: Up to 3/4"
Limited Warranty: 5 Years
Lock Type: Exit Device
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor
Operating Voltage: 12VDC/24VDC
Series: 9500 Series
Shim Type: NA
Strike: 12VDC / 24VDC Electric Strike Body with Latchbolt Strike Monitor
Strike Body Depth (in): 0.75
Strike Body Height (in): 9
Subtype: Electric Strikes
Surface Mounting: No cutting required
Switch Type: LBSM
Tamper Resistant: Yes
Type: Electronics
Use With: Rim Exit Devices
Voltage: 12/24
Warranty: SecuriCare five-year, no fault, no questions asked warranty
