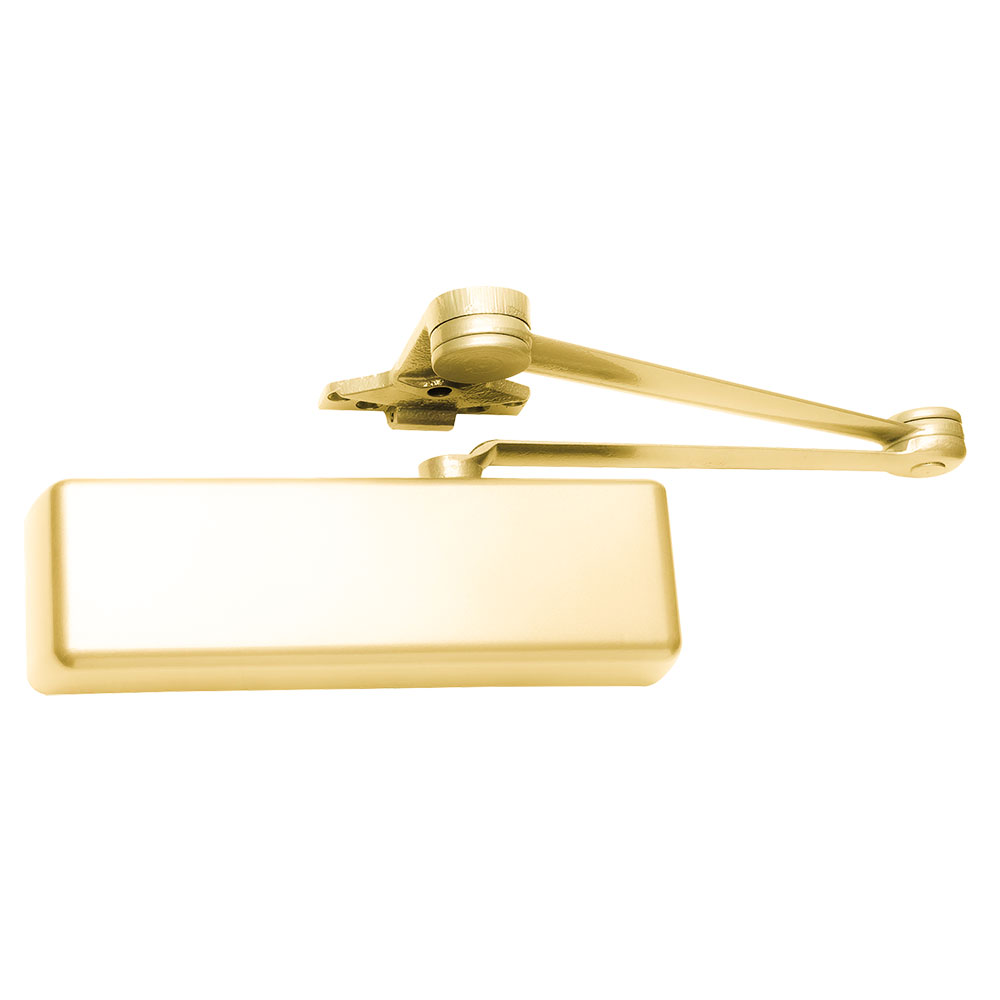

LCN 4111-SCUSH RH 632 Heavy Duty Surface Closer - US3

LCN 4111-SCUSH RH 632 Heavy Duty Surface Closer US3 offers a robust solution for high-traffic environments, making it ideal for institutional settings. This Grade 1 surface door closer features a spring Cush-N-Stop arm and is designed for parallel arm mounting on the push side, accommodating right-handed doors. With a swing capacity of up to 110 degrees and adjustable sizing from 1 to 5, it provides versatility for various door types, ensuring optimal performance. Crafted from cast iron and equipped with an extra duty forged steel arm, the 4111 is built to last. It includes a full plastic cover in a polished brass finish, delivering both durability and aesthetic appeal. This closer meets ADA requirements, making it a compliant choice for accessibility. It also features cold weather fluid to ensure reliable operation in diverse climates. Installation is straightforward, thanks to the included self-reaming and tapping screws, while the UL and cUL listing ensures safety standards are met. The 4111 Series is tested and certified under ANSI Standard A156.4, grade one, reflecting its superior quality. With a limited warranty of 30 years, you can trust the LCN 4111 to provide lasting performance and security for your doors.

Heavy Duty Surface Closer US3

Grade 1 Surface Door Closer, Spring Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Plastic Cover, Bright Brass Finish, Right-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4110 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4110 Drop Plates Installation Guide
• LCN 4110 Peel-N-Stick CUSH Installation Guide
• LCN 4110 Peel-N-Stick Installation Guide
• LCN 4110 Series Cut Sheet
• LCN Closers & Auto Operators Installation Guide
• LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
• Von Duprin Finishes Chart
