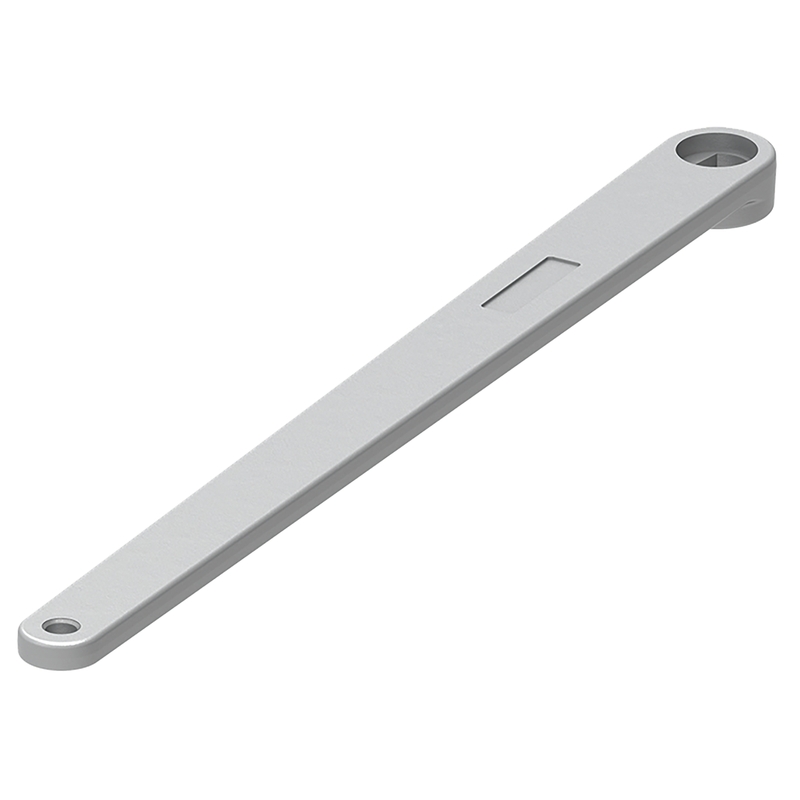

LCN 4510T-3077T RH 689 STD Security Track Arm AL

LCN 4510T-3077T RH 689 STD Security Track Arm AL is a robust and reliable door closer designed for high-security environments. This heavy-duty closer features a forged steel single lever arm and a heavy gauge metal security cover, making it ideal for correctional facilities, institutional settings, and other high-traffic interior applications. Shipped with a standard arm and security track (non-hold open), the LCN 4510T is equipped with a track roller and a TORX machine screw pack, ensuring a secure installation. It is sized for interior doors up to 4'0" and mounts on the hinge side, suitable for right or left swinging doors. This model meets ADA requirements, providing accessibility without compromising on security. Constructed to withstand rigorous use, the 4510T Series is UL listed for self-closing doors and has been tested and certified under ANSI Standard A156.4, grade one. It can be customized with either a standard or optional powder coat finish, including an SRI primer for installations in corrosive conditions. With a matte silver finish (689/US28), this commercial-grade door closer combines functionality with a sleek appearance, making it a perfect choice for any demanding environment.

STD Security Track Arm AL

Standard Track Arm, Right Hand, Aluminum

The LCN 4510T Series is a heavy duty closer with a high security track.

The 4510T Series has a forged steel single lever arm and heay gauge metal security cover designed for correctional, vandal prone, institutional and other high traffic interior applications.

• Standard 4510T series closer shipped with standard arm, security track. (non hold-open), track roller, metal security cover, and TORX Machine Screw pack. See 4510T Series page 21 for options.
• Sized cylinders for interior doors to 4’0”.
• Closer mounts hinge side, specify right or left swinging door.
• 4511T cylinder meets ADA requirements. See 4510T Series page 22.
• Standard or optional custom powder coat finish.
• Optional SRI primer for installations in corrosive conditions.
• The 4510T Series is UL listed for self-closing doors.
• Tested and certified under ANSI Standard A156.4, grade one.

Resources

• 4510T Series High Security Closers Cut Sheet
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4510T Series Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN High Security Series Catalog
• Von Duprin Finishes Chart
