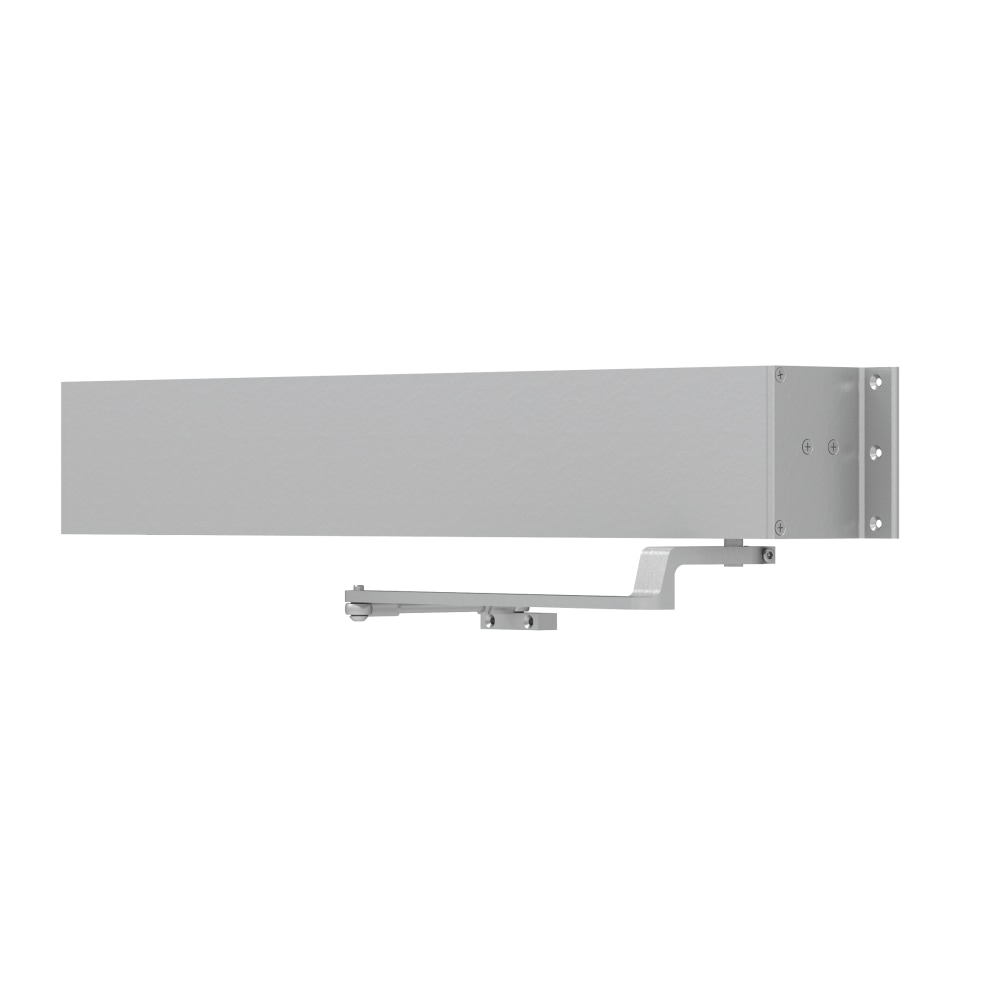

LCN 9542-REG 36 LH 628 HLD Senior Swing Reg Arm ANCLR is a Grade 1 surface-mounted electromechanical door operator designed to enhance accessibility for all building users. Featuring a 36" header and a satin aluminum clear anodized finish, this left-handed operator is perfect for commercial applications requiring both automatic and manual operation. It accommodates doors between 33" and 48" wide, ensuring compliance with ADA standards. The 9540 Senior Swing operates seamlessly, providing automatic door opening for wheelchair access while allowing for manual use by pedestrians. This dual-functionality supports a wide range of traffic needs, making it a versatile choice for any facility. The operator's robust construction meets ANSI A156.19 standards and is UL listed, offering reliability and safety. With adjustable back check and all-weather fluid compatibility, the LCN 9542 ensures consistent performance in various conditions. The unit is handed for left-side installation and can support door weights up to 400 lbs. Backed by a two-year warranty, this operator is a reliable choice for enhancing door accessibility while maintaining a polished appearance. Upgrade your building’s entryways with the LCN 9542 Senior Swing, blending functionality with quality craftsmanship.

Senior Swing Reg Arm ANCLR

Grade 1 Surface Mounted Electromechanical Senior Swing Door Operator, 36" Header, Regular, Push Side Mounted, 33" - 48" Door, Header Dress Plates, 90 Deg. Swing, Machine Screws, Satin Aluminum Clear Anodized Finish, Left Handed

The 9540 Senior Swing by LCN is an ADA door operator that is a two in one swing door operator. The Senior Swing operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

The 9540 Series is ADA compliant and is a two-in-one swing door operator.

The 9540 Senior Swing by LCN is an ADA door operator that is a two-in-one swing door operator. Senior swing operator when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

• Grade 1 - ANSI A156.19, UL325/228, UL1998, ADA, 100 Hour Salt Spray
• Meets BAA - Buy American Act
• All Weather Fluid
• Handed
• Combined width min. 33" to 48"
• Single door width per leaf 33" min. to 48" max.
• 2 year warranty
• Machine Screws (MS)
• Single door, surface mount, offset pivot
• Butt hinge, push side
• Regular Arm (3077)
• 628 Aluminum, Anodized / 710 Dark Brown, Anodized
