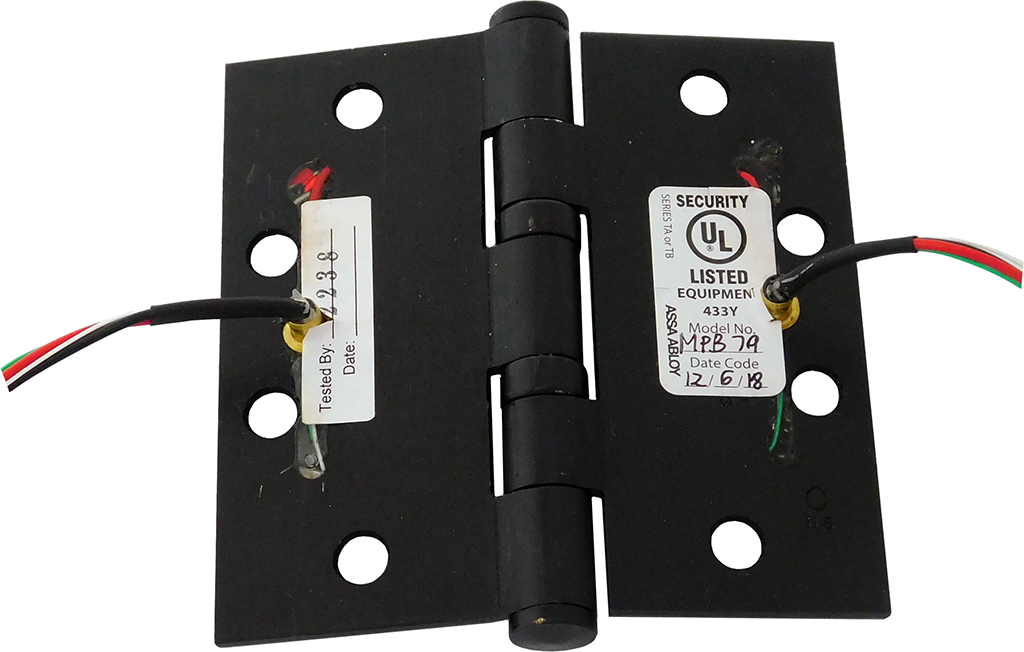

Mckinney Products Company TA2714 4.0 X 4.0 722 CC4-18 4FT Electrified-CC4 Hinge is a robust solution designed for standard weight, medium frequency doors. This five-knuckle hinge is built for common flush door, frame, and wall applications, ensuring durability and reliability. Constructed from steel with a satin black oxidized finish, the TA2714 not only provides a sleek appearance but also enhances the security of your doorways. One of the standout features of the TA2714 is its electrified capability, which allows for easy integration with locking hardware and access control systems. This design eliminates the risk of tampering with external wires, ensuring a secure environment. The hinge also boasts an oil-impregnated bearing that provides smooth operation and longevity. With a square corner shape and non-handed design, installation is straightforward and versatile. The decorative tips enhance the aesthetic appeal, making it suitable for various architectural styles. Additionally, the hinge pairs well with Rockwood pulls and is compatible with hinge pin door stops to prevent damage to doors and walls. In summary, Mckinney Products Company TA2714 is an excellent choice for those seeking a blend of functionality, security, and style in their door hardware solutions.

Electrified-CC4, 4 Wire, 5-Knuckle Hinge, Standard Weight, Full Mortise, Oil Impregnated Bearing (TA), 4.0in x 4.0in (4040), Steel Base, 722/US10A Satin Black Oxidized (Over 10B)

The TA2314 (stainless steel or brass) and TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

Features:

• For common flush door/frame/wall applications
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled edge on hinge side, specify TA4314 or TA4714
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Decorative (except 3-1/2" and 6" sizes) and hospital tips available
• Suites with Rockwood pulls, coat hooks, and door stops
• Multiple bearing options provided
• Pairs well with Corbin Russwin and Sargent decorative levers
• Compatible with the hinge pin door stop, which protects against damage to doors and walls

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• TA2714:
• Description: Standard weight full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard weight
• TA2314:
• Description: Non-ferrous standard weight five knuckle bearing
• ANSI No: A5112, A2112
• Base Material: Brass or stainless
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 637/US9 - Bright bronze plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
