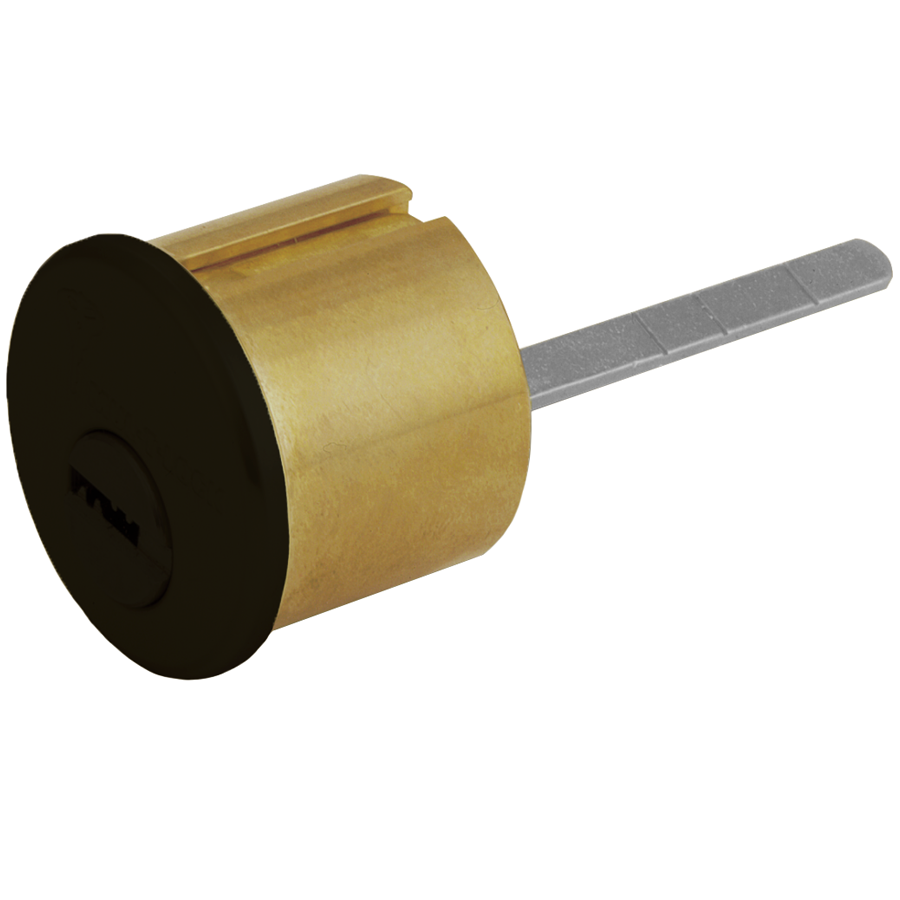

Mul-T-Lock 206XP-RIM1HT-13 Rim Cylinder 1-1/8in Horizontal Tail offers a robust solution for securing both residential and commercial properties. Designed with a cylinder body diameter of 29 mm, this central plug cylinder features a unique, high-precision pin tumbler system, ensuring exceptional security. The cylinder operates with a smooth 360° rotation using a reversible nickel silver key, which is equipped with a plastic key head and a colored insert for easy identification. Constructed from high-quality materials, the cylinder body and plug are made of brass, while the tail is crafted from durable steel. The pins utilize nickel silver and stainless steel, enhancing longevity and performance. Installation is straightforward, thanks to the four screws that secure the cylinder to the door. The Mul-T-Lock 206XP-RIM1HT-13 offers diverse cylinder options, including classic, Interactive+, and a unique '3 IN 1' changeable combination feature. It can be keyed differently, keyed alike, or master keyed to suit various security needs. Available in standard finishes such as nickel chrome matte and shiny brass, this rim cylinder combines functionality with aesthetic appeal, making it a versatile choice for any locking system.

Rim Cylinder 1-1/8in Horizontal Tail

Mul-T-Lock designs, develops and manufactures a broad range of innovative locking cylinders - both mechanical and electromechanical - that address the evolving security needs of institutions, businesses, and homeowners all over the world. A variety of special cylinder applications and features provide users with security and flexibility, including 3-in-1 cylinders, FleX control (temporary lockout) cylinders, and the construction master cylinder. From doors to cabinets, Mul-T-Lock has a cylinder solution for all your security needs. Compatible with residential and commercial surface-mounted door locksets.

Features:

• Cylinder body Ø29 mm
• Central plug cylinder
• Four screws mount the cylinder to the door

Specifications:

• Operation: 360° rotation by operating key
• Materials:
• Body and plug: high quality brass.
• Tail: steel
• Pins: nickel silver and stainless steel
• Cylinder Mechanism: Unique, high precision pin tumbler system.
• Keys: Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver.
• Cylinder Options:
• Classic; Interactive+
• '3 IN 1' (changeable combination)
• Keyed different, keyed alike
• Master keyed
• Standard Finishes: Nickel chrome matte; shiny brass
